Lenze E70ACPSE0304 Series - Mounting Specifications; Standard Mounting Dimensions

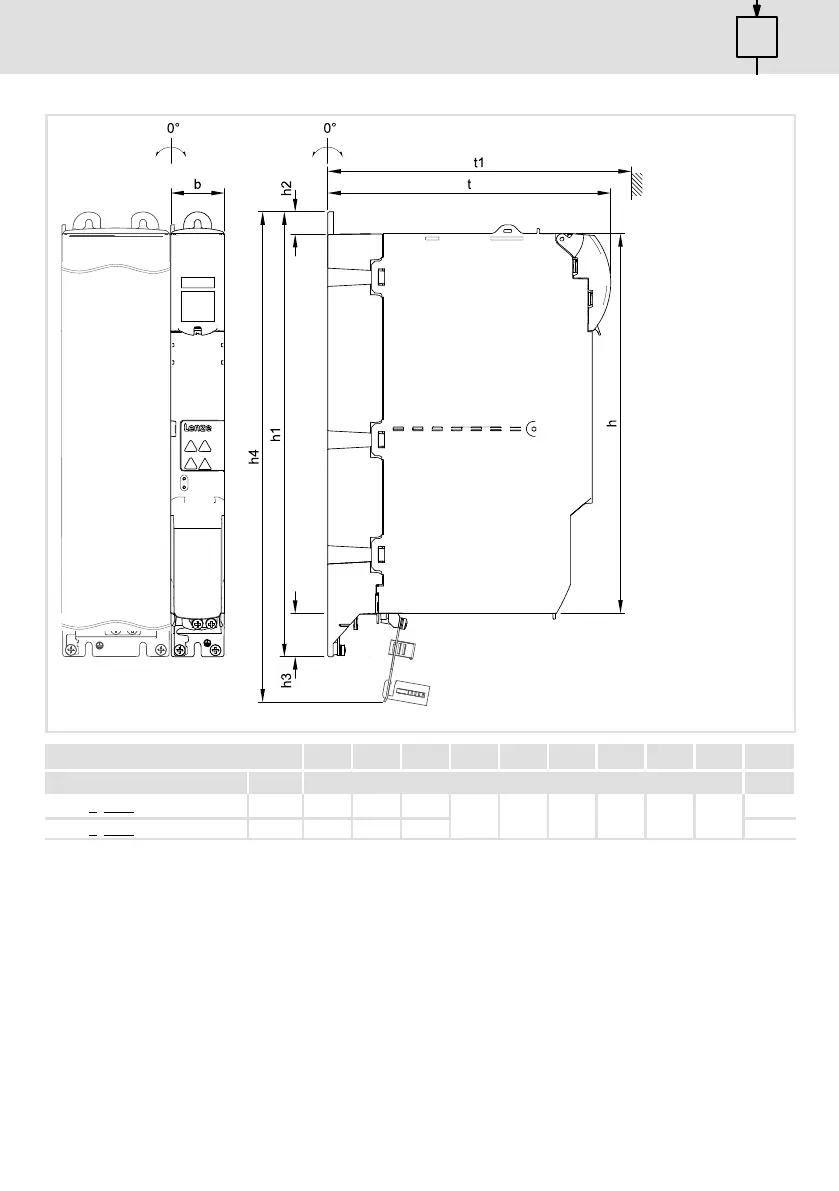

[mm] 1STANDARD

6
EDKE70APE060 DE/EN/FR/ES/IT 2.1
1
[mm]
STANDARD
i700P011 a
h b t h1 h2 h3 h4 t1 t2
[A] [mm] [kg]
E70ACPSE0304x 30 350 50 261
410 20 40 452 275 -
2.5
E70ACPSE0604x 60 350 100 261 5.3
