Lenze EVS93 Series - Angle Signal Changeover Switch (SWPH1 and SWPH2)

Function library
Function blocks
3.2.96 Angle signal changeover switch (SWPH1 and SWPH2)
3−303
l
EDSVS9332K−EXT EN 4.0

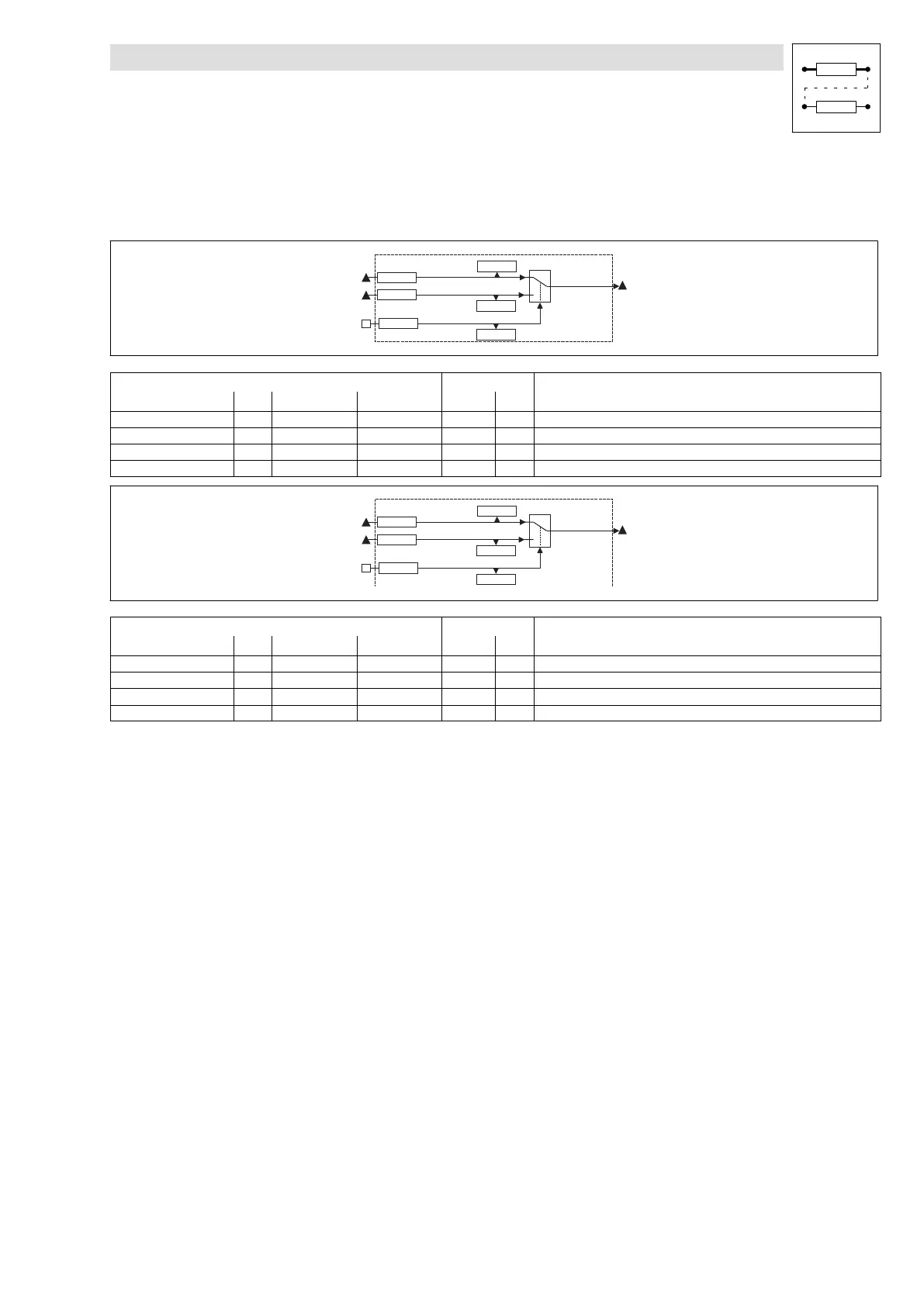

3.2.96 Angle signal changeover switch (SWPH1 and SWPH2)
Changeover switch for selecting between two angle signals
0
1
C 1 1 0 8 / 1
C 1 1 0 8 / 2
C 1 1 0 6 / 1
C 1 1 0 7 / 1
C 1 1 0 9 / 2
C 1 1 0 9 / 1
S W P H 1 - I N 1
S W P H 1 - I N 2
S W P H 1 - S E T
S W P H 1
S W P H 1 - O U T
Signal Source Note
Name Type DIS DIS format CFG List
SWPH1−IN1 ph C1109/1 dec [inc] C1108/1 3 –
SWPH1−IN2 ph C1109/2 dec [inc] C1108/2 3 –
SWPH1−SET d C1107/1 bin C1106/1 2 –
SWPH1−OUT ph – – – – –
0
1
C 1 1 0 8 / 3
C 1 1 0 8 / 4
C 1 1 0 6 / 2
C 1 1 0 7 / 2
C 1 1 0 9 / 4
C 1 1 0 9 / 3
S W P H 2 - I N 1
S W P H 2 - I N 2
S W P H 2 - S E T
S W P H 2
S W P H 2 - O U T
Signal Source Note
Name Type DIS DIS format CFG List
SWPH2−IN1 ph C1109/3 dec [inc] C1108/3 3 –
SWPH2−IN2 ph C1108/4 dec [inc] C1108/4 3 –
SWPH2−SET d C1106/2 bin C1107/2 2 –
SWPH2−OUT ph – – – – –
Function
l Different signals are assigned to the inputs SWPHx−IN1 and −IN2. One of the signals can be
assigned to the output SWPHx−OUT.
l The input is selected with SWPHx−SET
– SWPHx−SET = LOW:
Input SWPHx−IN1
– SWPHx−SET = HIGH:
Input SWPHx−IN2
