Lenze G50BS113 - Page 57

Maintenance
Maintenance operations

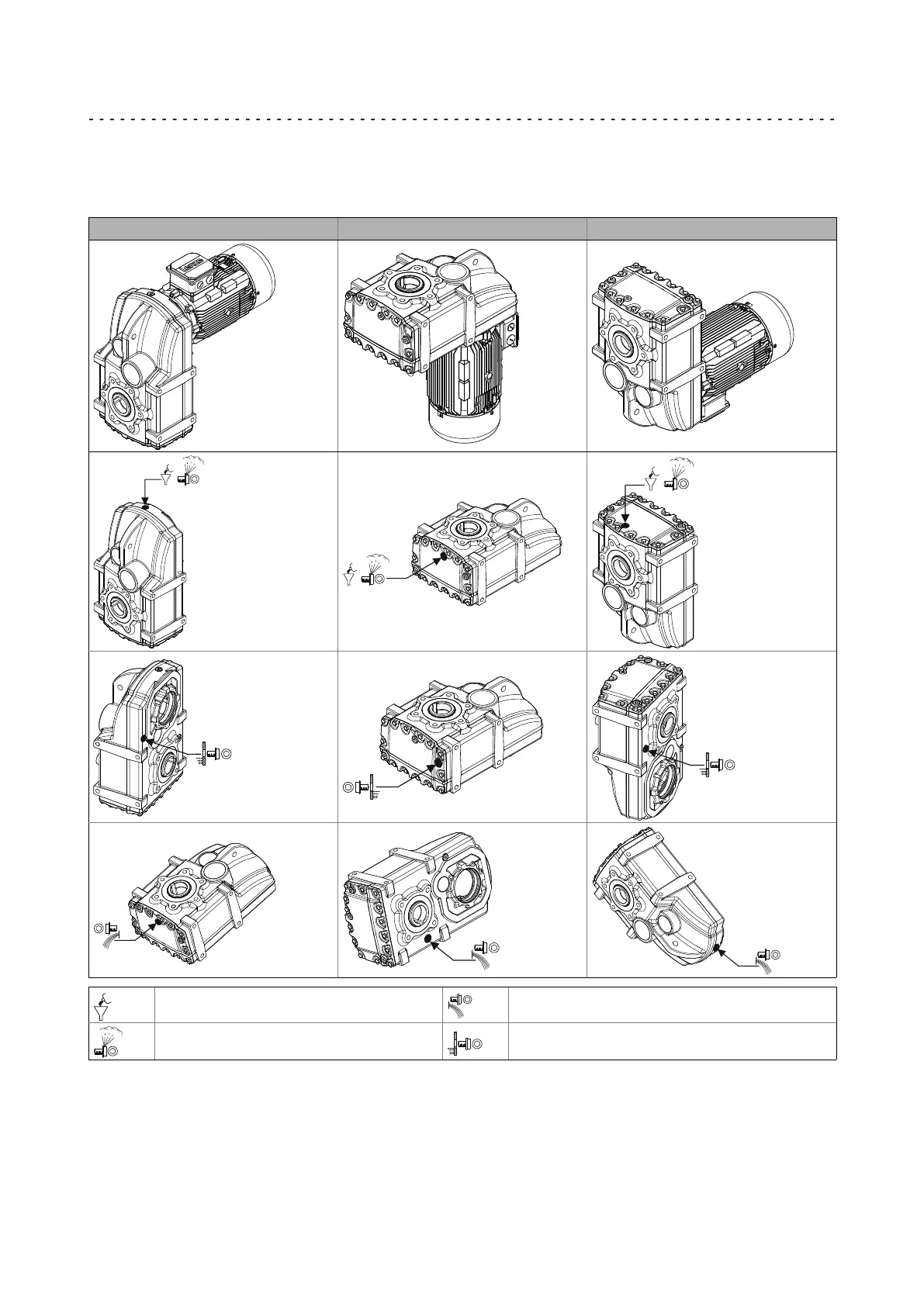

Position of the lubricant monitoring elements
7
57
Lenze ¯ MA 12.0018 ¯ 4.1
g500−S950 ... g500−S4500
G50BS195 ... G50BS245
Mounting position M1 [A] Mounting position M2 [D] Mounting position M3 [B]
+
+
+
Filling Drain
Breathing Control
