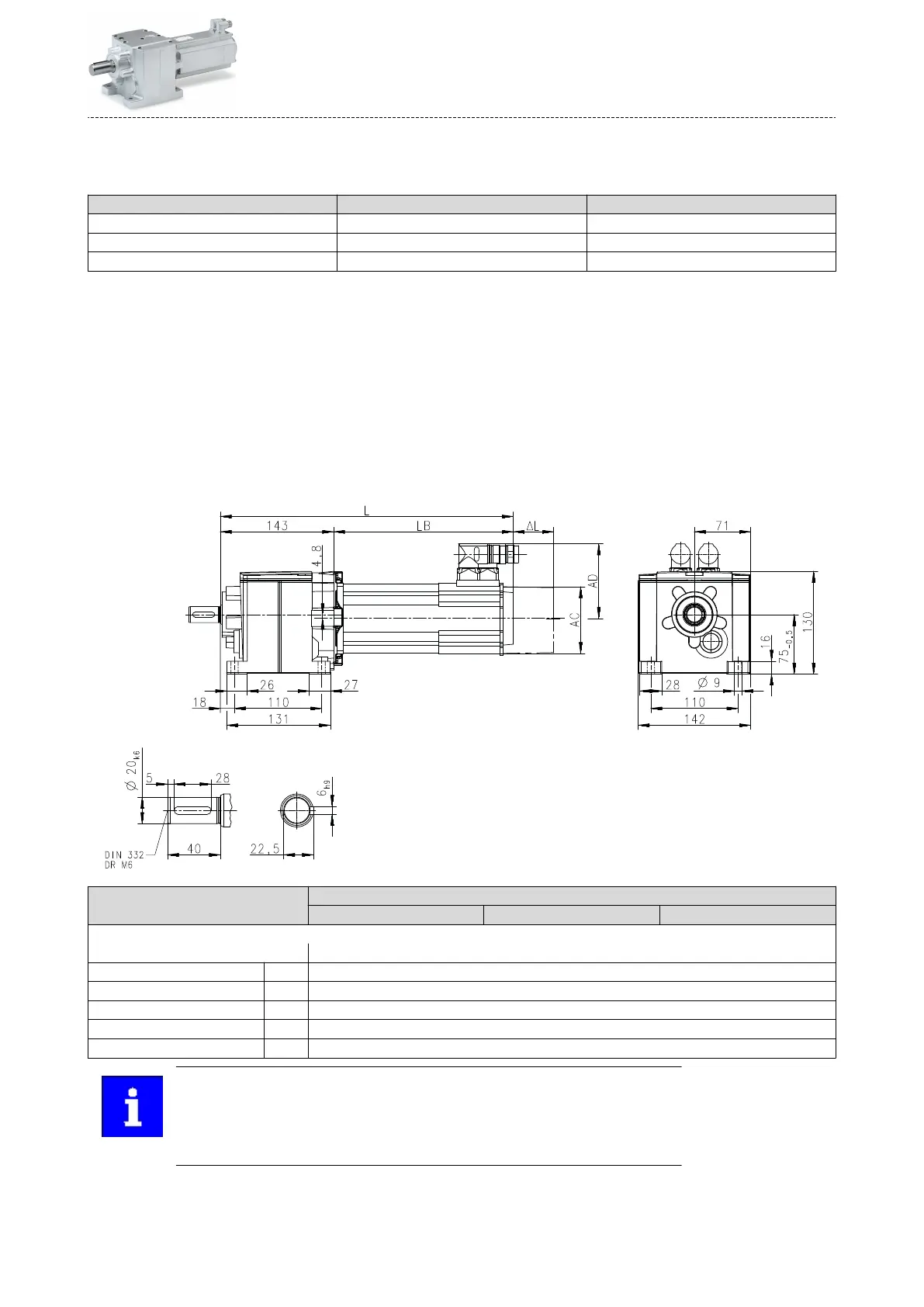

Dimensions
Notes on the basic dimensions
Gearbox Without pre-stage With pre-stage
g500-H45 2-stage -
g500-H100 … g500-H140 2-stage 3-stage
g500-H210 … g500-H3000 2-/3-stage 4-stage
The rao range of gearboxes with pre-stage is extended via an addional housing with gear
stage between the gearbox and motor.
The basic dimensions are shown without pre-stage and are valid up to the following deviang
dimensions for gearbox with pre-stage valid:
•
Total length “L”
•
Center distance “a” (gearbox output sha – motor sha)
Deviang dimensions: 4Gearbox with pre-stage ^ 125
Example Explanaon
g500-H100 Gearbox
Gearbox version: Solid sha with foot (VBR)
4Designs ^ 12
Motor m850-
S120/S3960 S120/M3960 S120/L3960
Table content Explanaon
Total length L Total length of the drive without brake
Motor length LB Motor length without brake
Length of motor opons Δ L Addional length (with brake)
Motor diameter AC Motor diameter
Motor/connecon distance AD Distance from motor center to connector end
The dimensions shown in the dimensional drawings for the solid shas with
featherkey (V□□) also apply for solid shas without a keyway (G□□).
Please observe the available output sha designs!
4The modular system ^ 10
Technical data
Dimensions
91
