Lenze GST Series - Page 50

Mechanical installation
Mounting

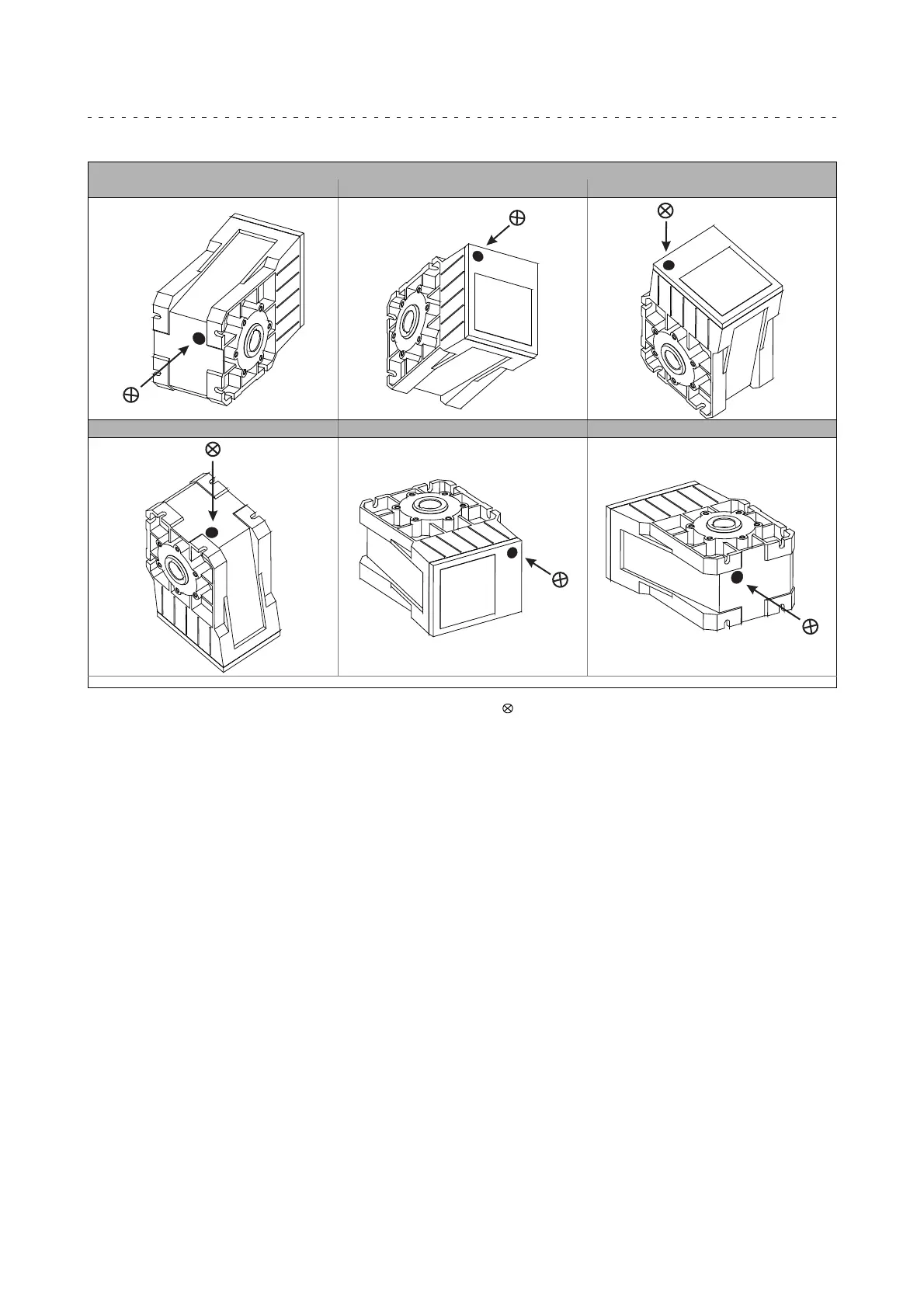

Breather position, oil filling screw and drain plug
5
50
Lenze • BA 12.0023 • 9.0
Bevel gearbox GKR
A B C
D E F
GT-GNG-GKR-2-001_A-F.iso/dms
A...F Mounting positions Breathing / oil filler plug
