Lerdge iX - Strengthen Frame Connections

www.lerdge.com
9
Button head
mechanical screw
2 x M5*8
Button head
mechanical screw
2 x M5*8
Countersunk
mechanical screw
4 x M5*8
2 x M5 Slider Nut
2 x M5
Slider Nut
4 x M5 Slider Nut

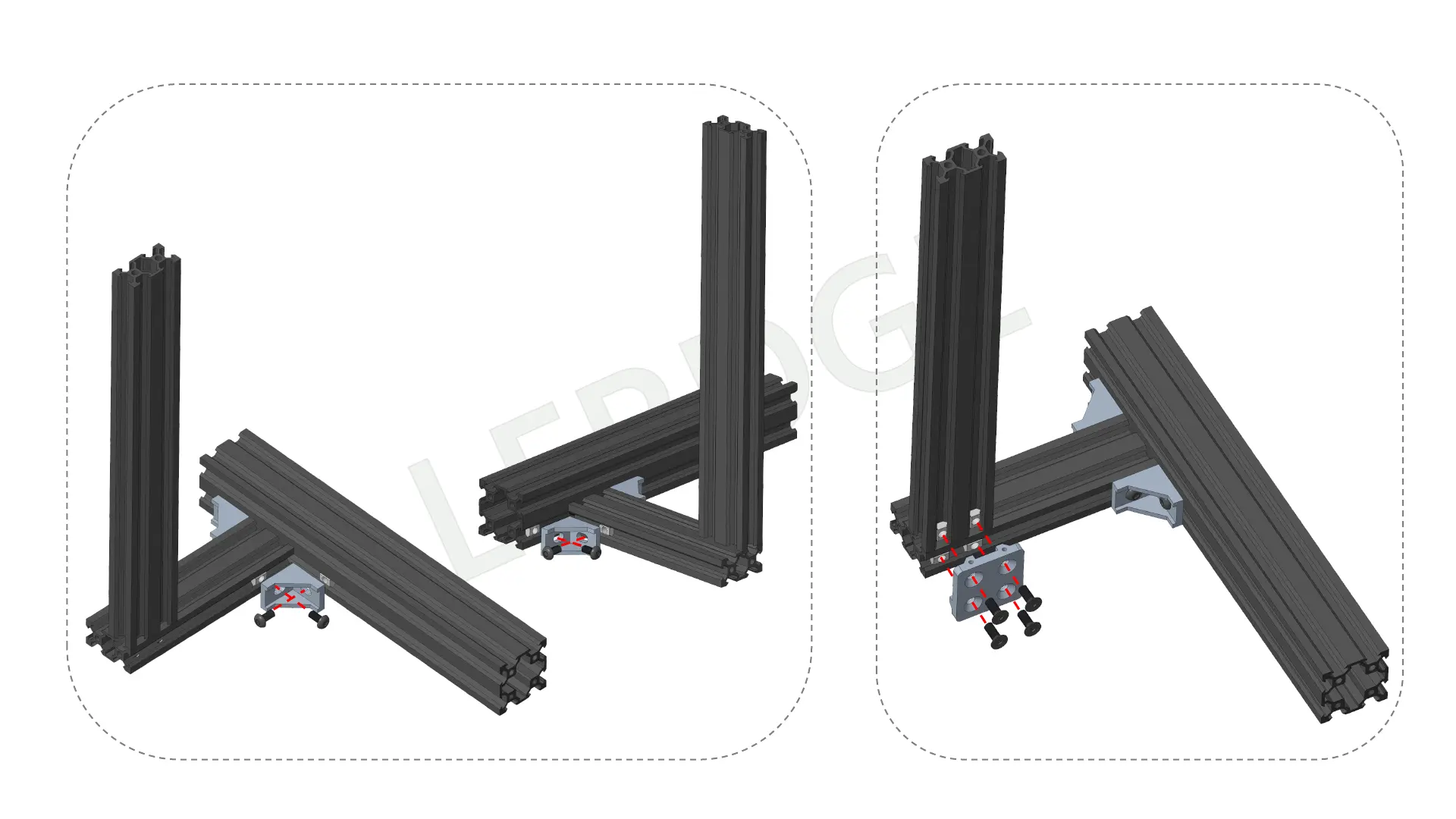

Use 2028 connection blocks to strengthen the
connection between the profiles, which can
further improve the stability of the frame.
The use of customized aluminum alloy
sheets can reinforce the connection between
the profiles, which will further improve the
stability of the frame and ensure the
verticality of the Z-axis profile assembly.
1.4- Strengthen the Frame
