Lerdge iX - Mount Print Head on X-axis Cantilever

www.lerdge.com
30

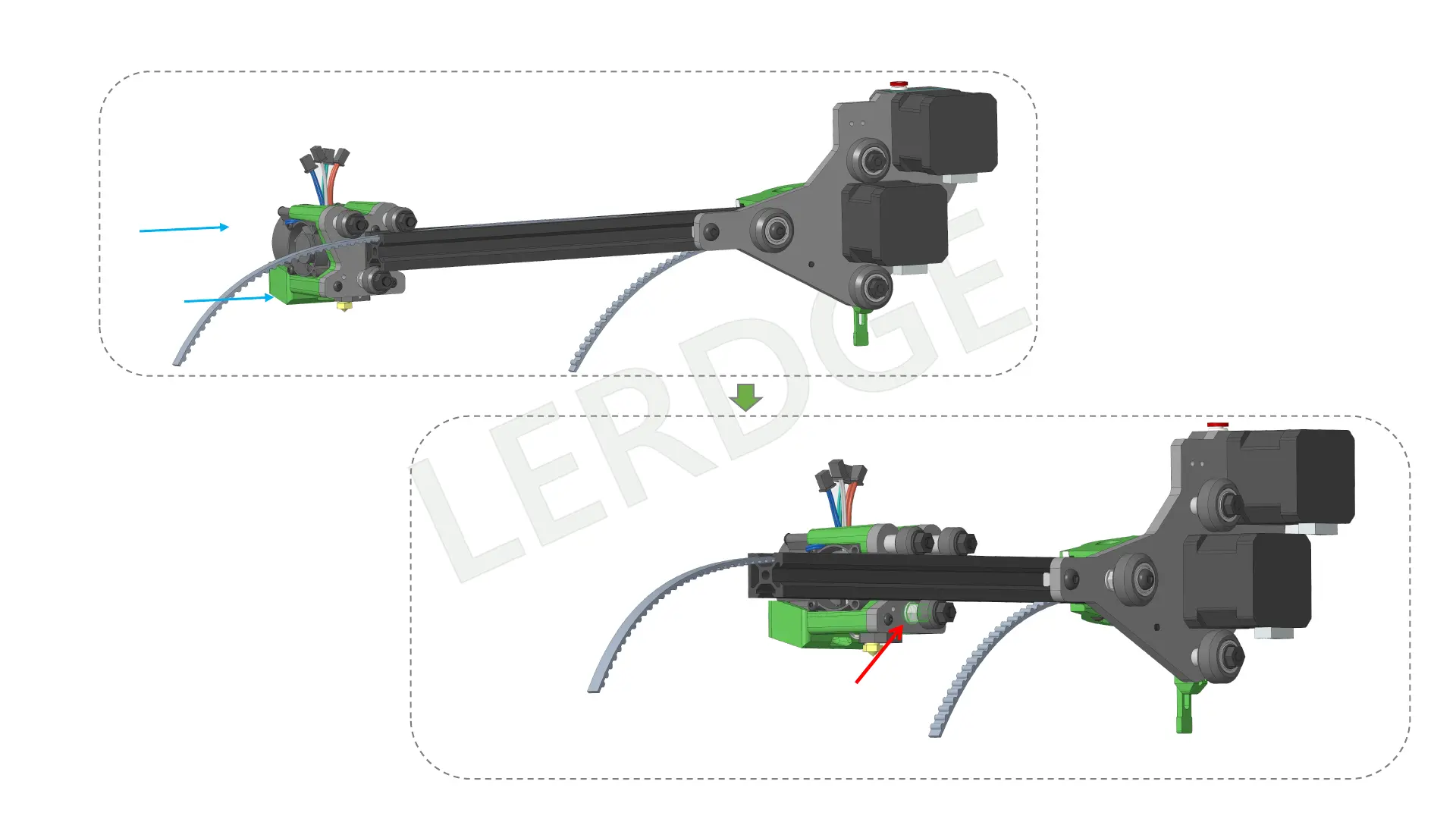

4.8- Slide the print head into the X-axis cantilever
Slide the print head module into
aluminum profile.
Tips:
The tightness of the slider and the profile can be adjusted by
rotating the eccentric nut with a wrench. Please take the
slider can move smoothly but will not sway from side to side.
