4.10- Fixed X-axis belt

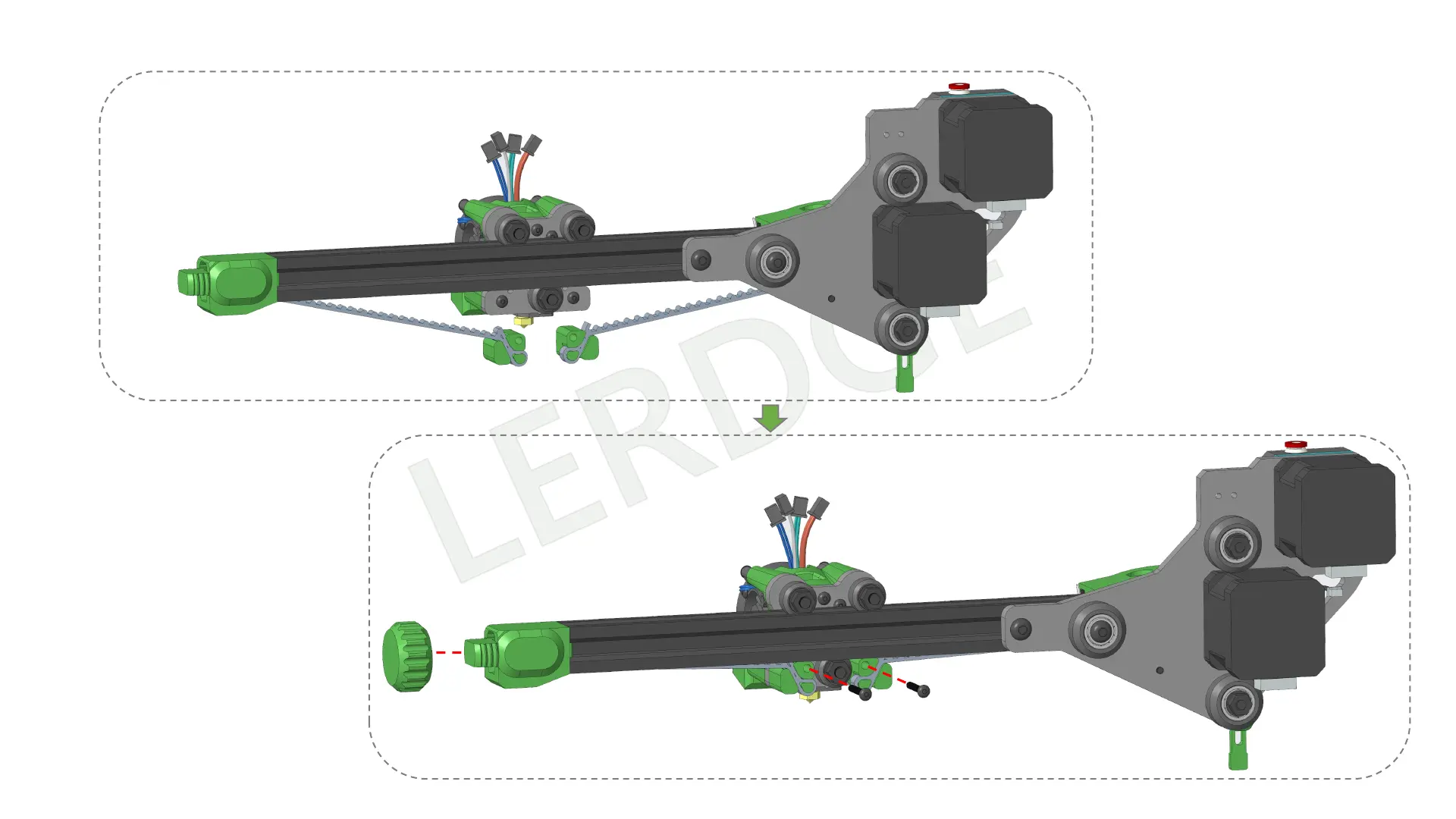

Put the belt on the fixing block.
Tips:
The knob can adjust the belt tightness:
Tighten clockwise;
Loosen counterclockwise.
Button head
mechanical screw
2 x M3*20
