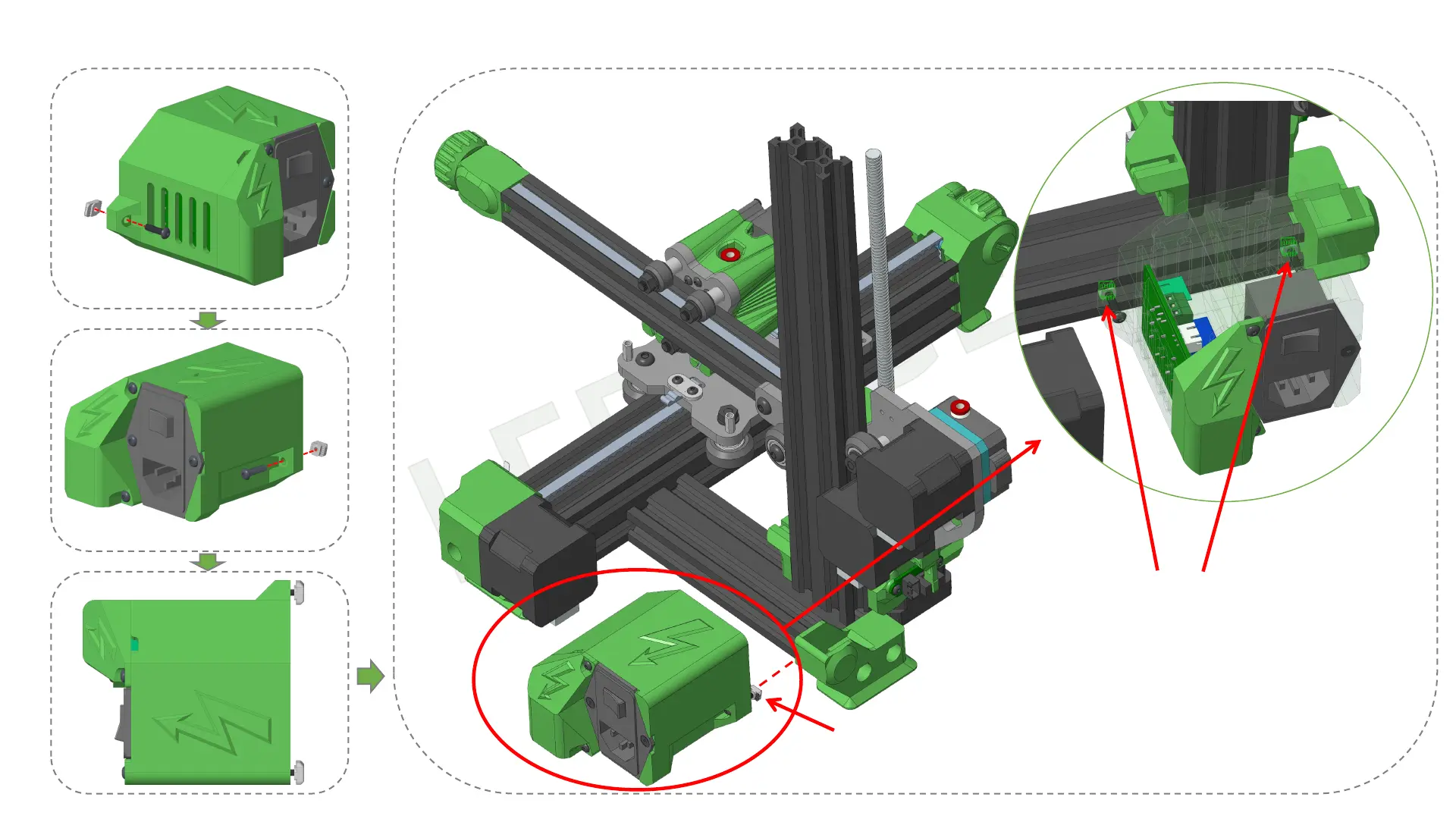

6.1- Assemble the main power switch
Button head
mechanical screw
1 x M3*16
1 x M3 T-nut
1 x M3 T-nut
Button head
mechanical screw
1 x M3*16
Adjust the nut into level and put it
into the aluminum profile groove.
Please make sure that the T-nut is driven
from horizontal to vertical, and stuck in the
groove of the aluminum profile, so as to fix
the power management box on the profile.
Note：Please refer to Appendix 1 for the electrical components assembly
inside the power management box.
