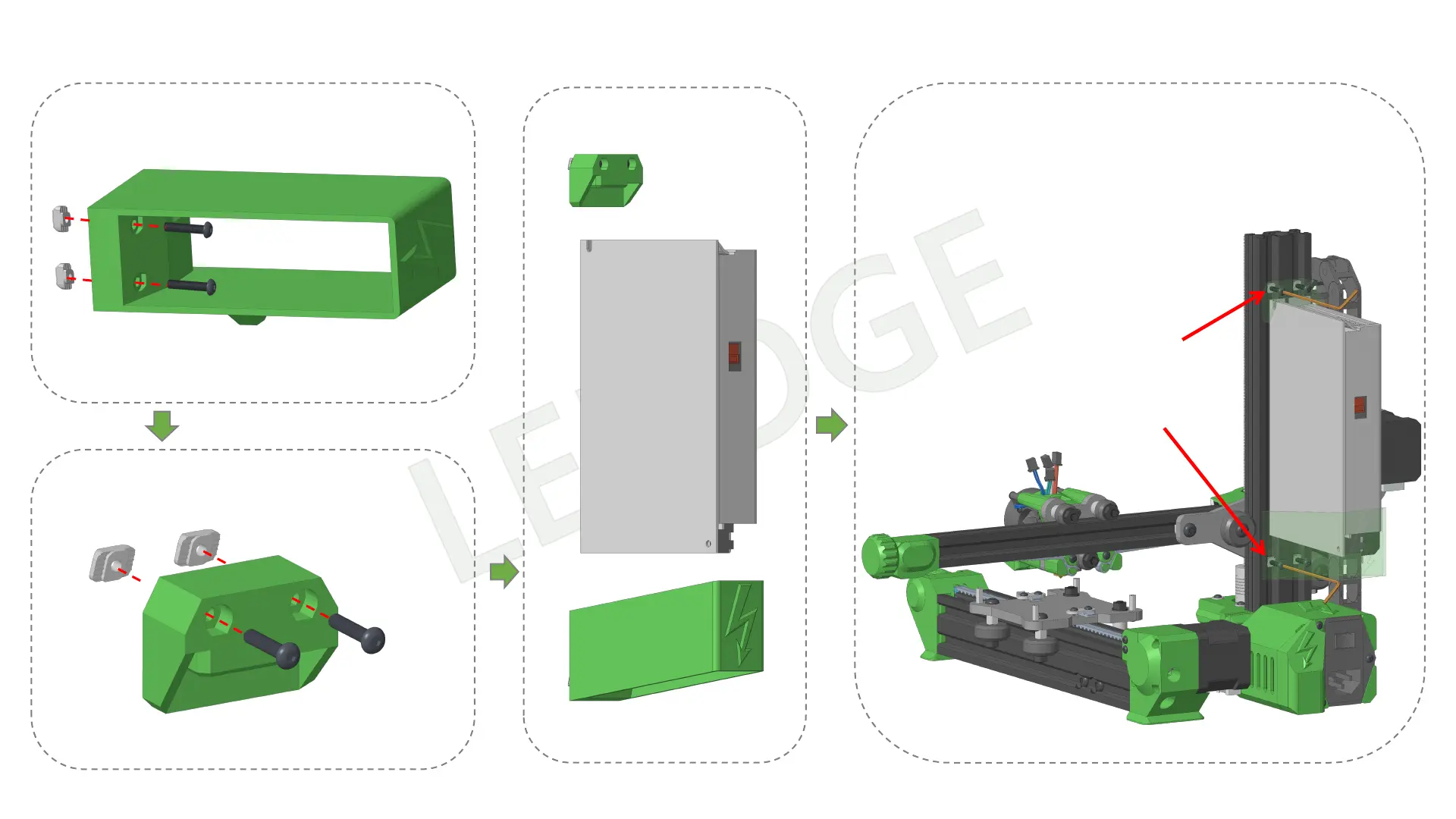

6.3- Assemble the power adapter (suitable for the 300W power supply)
Button head
mechanical screw
1 x M3*16
2 x M3 T-nut
Button head
mechanical screw
1 x M3*16
2 x M3 T-nut
When tightening the bolts, please
ensure that the T-nut is driven from
vertical to horizontal, and stuck in the
groove of the aluminum profile, so as to
fix the power supply on the profile.
Note:
Before fixing the power supply, you need to
complete the power supply wiring. Please refer
to Appendix 1 for the power wiring diagram.
