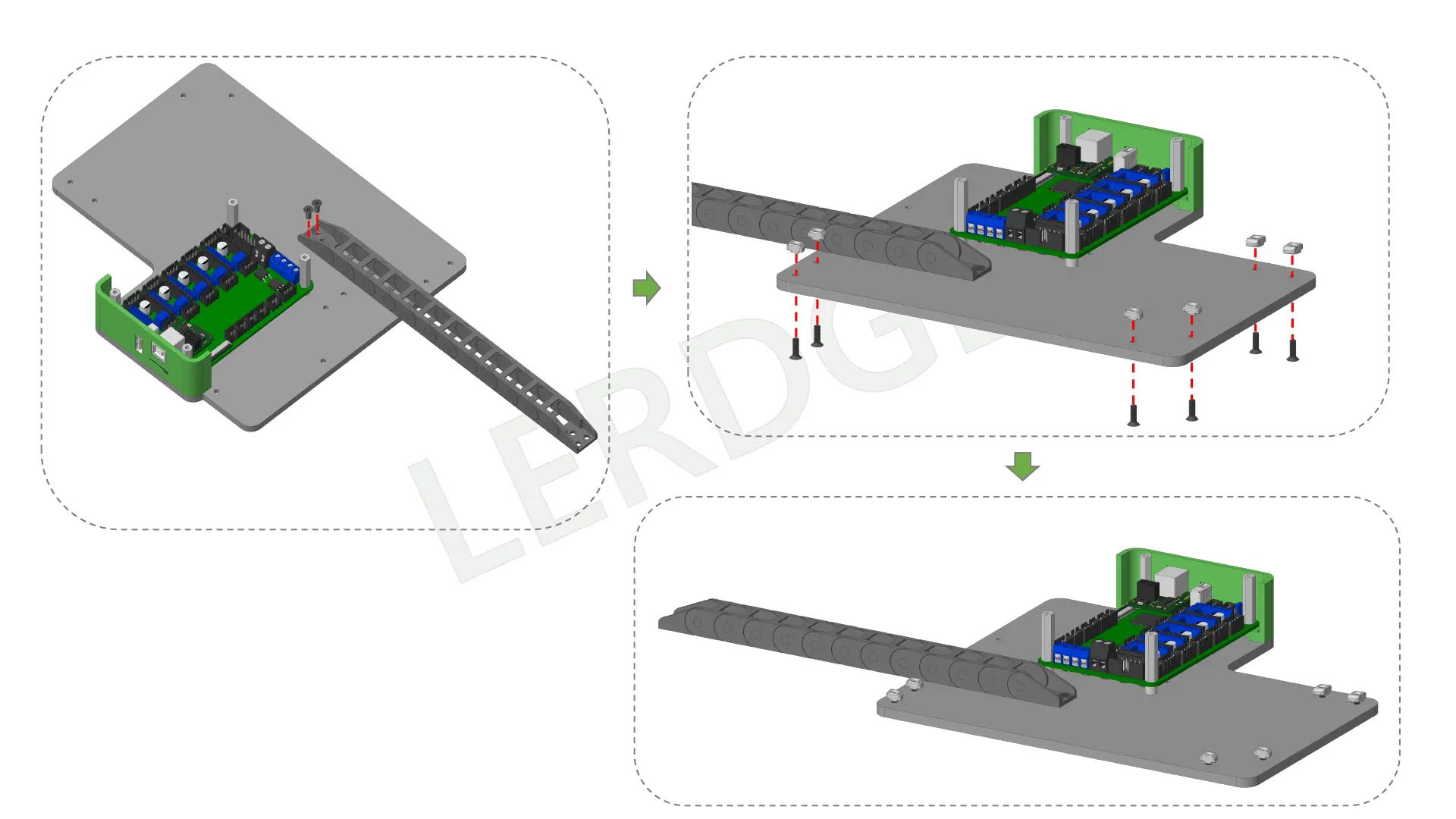

6.6- Assemble second drag chain
Countersunk
mechanical screw
2 x M3*6
Countersunk mechanical screw
6 x M3*8
6 x M3 T-nut
