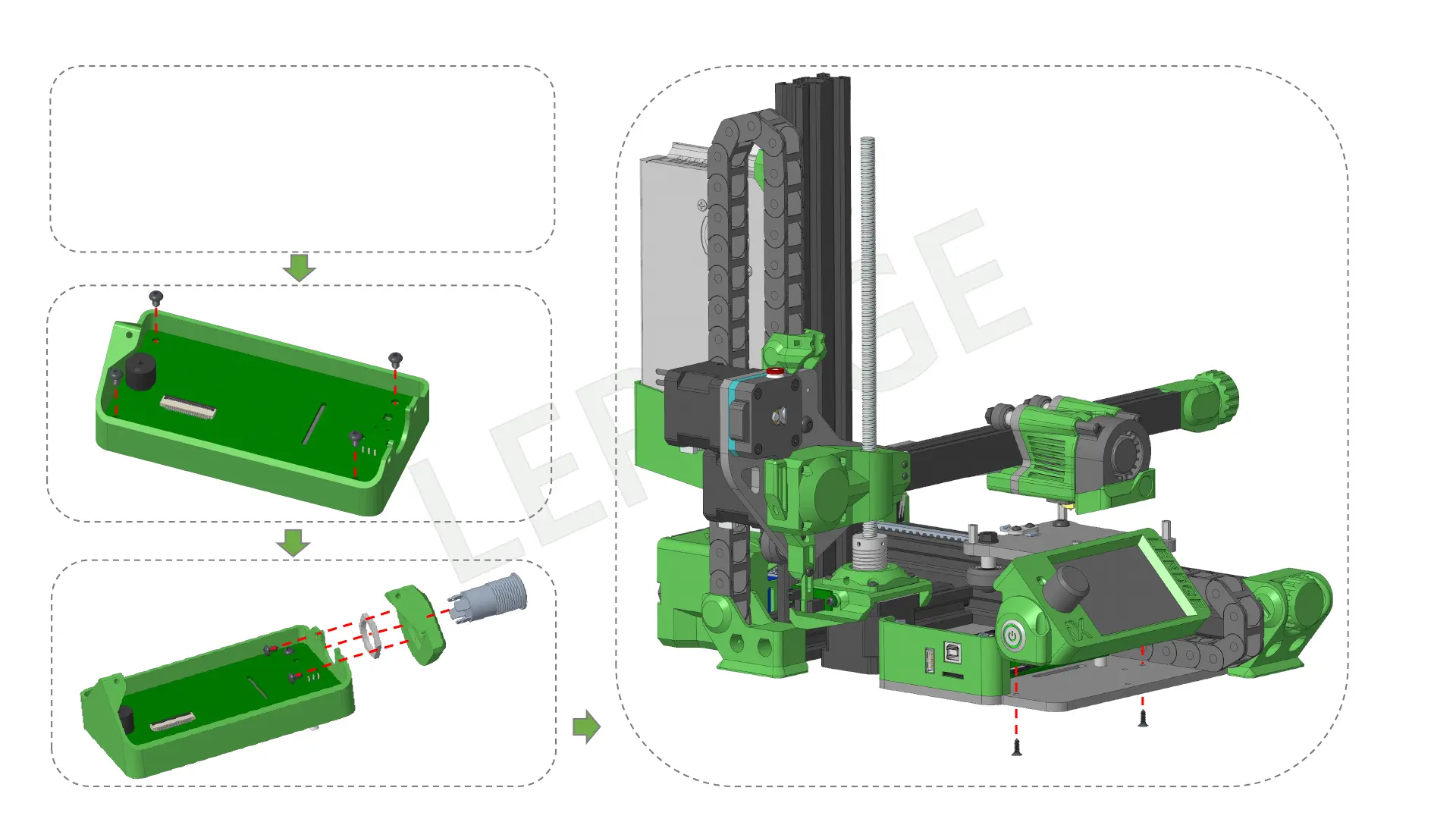

6.8- Assemble display
Button head self tapping screw
4 x M3*6
Button head self tapping screw
2 x M3*6
Countersunk self tapping screw
2 x M3*8
Note:
For convenience, you need to complete the wiring of the
main board firstly, and arrange the cables to avoid
winding or interfering with the movement of the Y-axis
pulley before assembling the display.
Please refer to Appendix 2, Appendix 3 and Appendix 4
for details.
