Lerdge iX - Assemble Printing Platform and Feeding Tube

www.lerdge.com
47

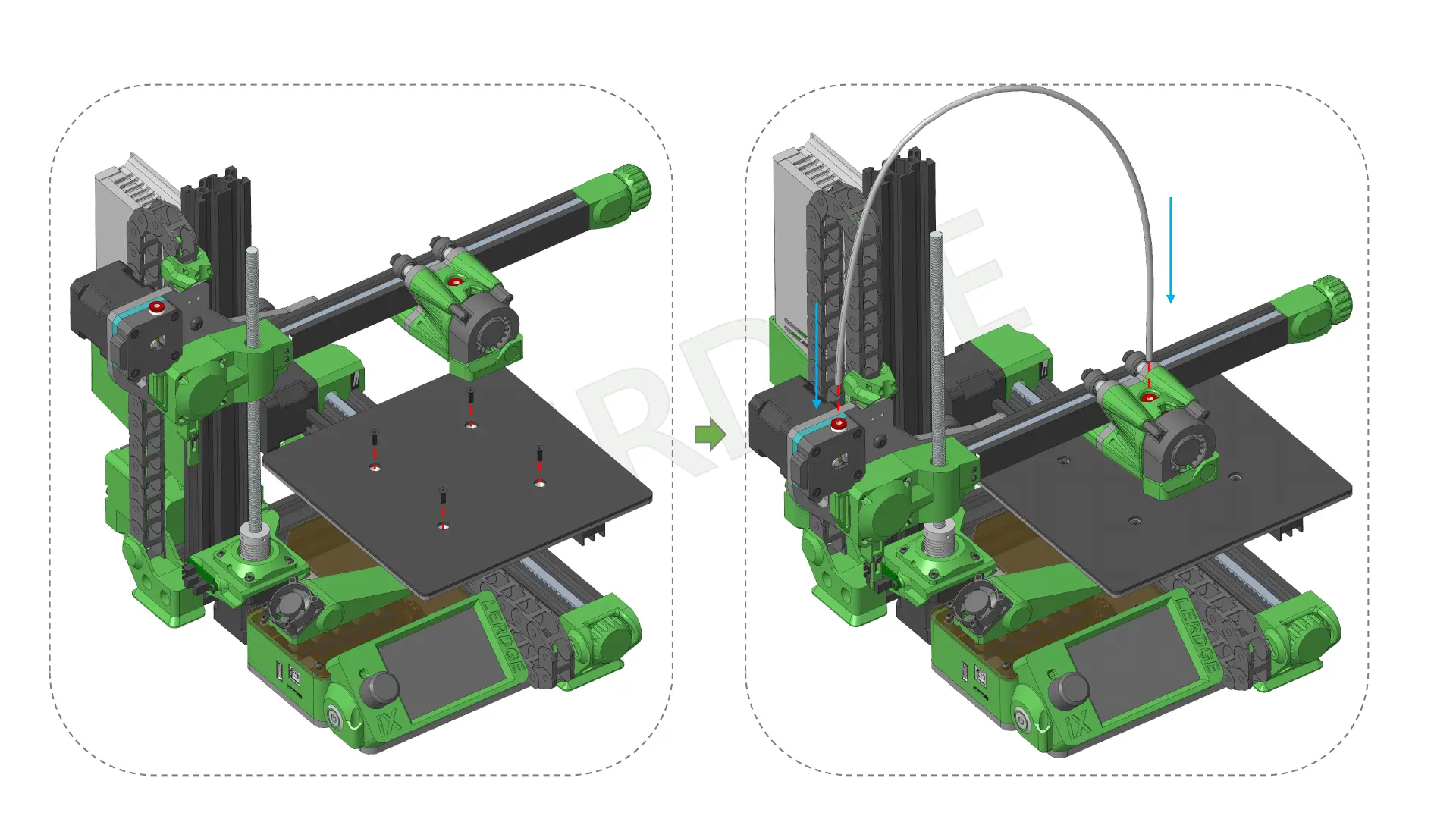

6.10- Assemble the printing platform and feeding tube
Countersunk
mechanical screw
4 x M3*8
Insert one end of the
feeding tube into the
extruder and the other
end into the print head.
