FIGURE 8
FIGURE 7
Wiring Connections for 24VDC Power
24VDC
External Power Supply
9
Improper installation or maintenance of this equipment
can cause damage or personal injury.
1. When installing new equipment, check that it is suitable
for the fluid, pressures and temperatures in your system.
2. Make sure that all pressure has been vented from the
system before loosening or disassembling any part of the
piping system or valve.
3. Before pressurizing the system, make sure that all bolts
and gasket joints are tight.
4.
When starting up the system, open inlet and outlet stop
valves slowly to prevent fluid hammer and thermal shock.
5. Use genuine Leslie replacement parts. Other parts may
look the same but may have lower strength or
temperature limits.
If you have any questions about the installation, repair or
operation of your Leslie equipment, please call Leslie
Controls or your local representative.
NOTE:
Unit is shipped with jumper wire in position J5 for pressure applications.
For temperature applications, move jumper wire to position J6.

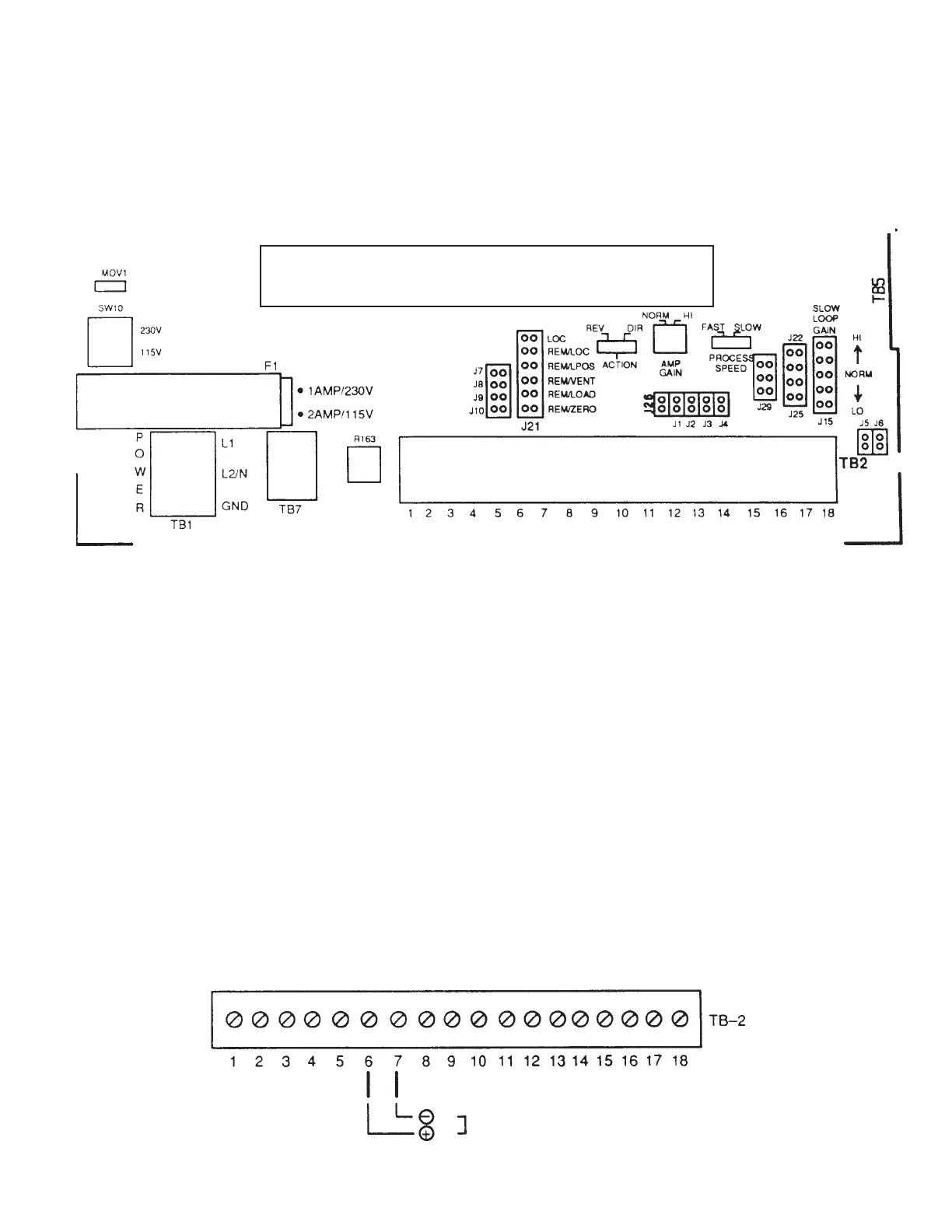

J1 CONNECTS “EXT SET” POINT VOLTAGE (0.4 TO 2 VOLTS) TO TB-2 TERMINAL 8
(MARKED AUX# ON PC BOARD)
J2 CONNECTS “PV” VOLTAGE (0.4 TO 2 VOLTS) TO TB-2 TERMINAL 9 (MARKED AUX
#2 ON PC BOARD)
J3 CONNECTS “DEV” VOLTAGE (0-±4 VOLTS) TO TB-2 TERMINAL 10 (MARKED AUX #3
ON PC BOARD). THIS IS HIGH IMPEDANCE OUTPUT.
J4 CONNECTS 24V INTERNAL POWER TO SOLENOID. IF SOLENOIDS ARE POWERED
EXTERNALLY BY EXTERNAL POWER SUPPLY (WHEN SOLENOIDS ARE DIFFERENT
FROM STANDARD) J4 MUST BE REMOVED AND EXTERNAL POWER CAN BE
BROUGHT TO THE SOLENOIDS AT TB-2 PIN 14.
J5 JUMP WHEN EXTERNAL 4-20MA PROCESS FEEDBACK TRANSMITTER IS USED
-OR-
J6 JUMP WHEN RTD SIGNAL CONDITONAL CARD IS INDSTALLED IN THE PMC-1.
J7 DECIMAL POINT SELECT, REFER TO SECTION D, PARA. 7.
J8 DECIMAL POINT SELECT, REFER TO SECTION D, PARA. 7.
J9 DECIMAL POINT SELECT, REFER TO SECTION D, PARA. 7.
J10 DECIMAL POINT SELECT, REFER TO SECTION D, PARA. 7.
J11
SLOW LOOP GAIN ADJUSTMENT (DERIVATIVE GAIN ADJUSTMENT). J13 IS DEFAULT.
J12
SLOW LOOP GAIN ADJUSTMENT (DERIVATIVE GAIN ADJUSTMENT). J13 IS DEFAULT.
J13
SLOW LOOP GAIN ADJUSTMENT (DERIVATIVE GAIN ADJUSTMENT). J13 IS DEFAULT.
J14
SLOW LOOP GAIN ADJUSTMENT (DERIVATIVE GAIN ADJUSTMENT). J13 IS DEFAULT.
J15
SLOW LOOP GAIN ADJUSTMENT (DERIVATIVE GAIN ADJUSTMENT). J13 IS DEFAULT.
J16 SET POINT DEFAULT CONDITION SELECTOR, REFER TO SECT. D, PARA. 4.
J17 SET POINT DEFAULT CONDITION SELECTOR, REFER TO SECT. D, PARA. 4.
J18 SET POINT DEFAULT CONDITION SELECTOR, REFER TO SECT. D, PARA. 4.
J19 SET POINT DEFAULT CONDITION SELECTOR, REFER TO SECT. D, PARA. 4.
J20 SET POINT DEFAULT CONDITION SELECTOR, REFER TO SECT. D, PARA. 4.
J21 SET POINT DEFAULT CONDITION SELECTOR, REFER TO SECT. D, PARA. 4.
J22 CONNECTS EXTERNAL SIGNAL FROM TB-2 PIN8 (AUX 1) TO STEERING CIRCUIT IF
USED, J1 JUMPER MUST BE REMOVED.
-OR-
J23 CONNECTS INTERNAL PROCESS SPEED CONTROL CIRCUIT, TO STEERING
CIRCUIT
J24 CONNECTS DERIVATIVE CIRCUIT OUTPUT SIGNAL TO TB-2 PIN9 (AUX 2). IF USED,
REMOVE JUMPER J2.
-OR-
J25 DO NOT USE (STRICTLY FOR FACTORY USE).
J26 CONNECTS CIRCUIT COMMON TO TB-2 PIN7.
J27 INACTIVE. CONNECTS TO AN OPTIONAL BOARD, IF INSTALLED.
J28 INACTIVE. CONNECTS TO AN OPTIONAL BOARD, IF INSTALLED.
J29 INACTIVE. CONNECTS TO AN OPTIONAL BOARD, IF INSTALLED.
