Mounting
Leuze electronic GmbH + Co. KG ELC 100 21
5.1.4 Preventing mutual interference between adjacent devices
If a receiver is located in the beam path of an adjacent transmitter, optical crosstalk, and thus erroneous
switching and failure of the protective function, may result.
1 2 3 4
1 Transmitter1
2 Receiver1
3 Transmitter2
4 Receiver2

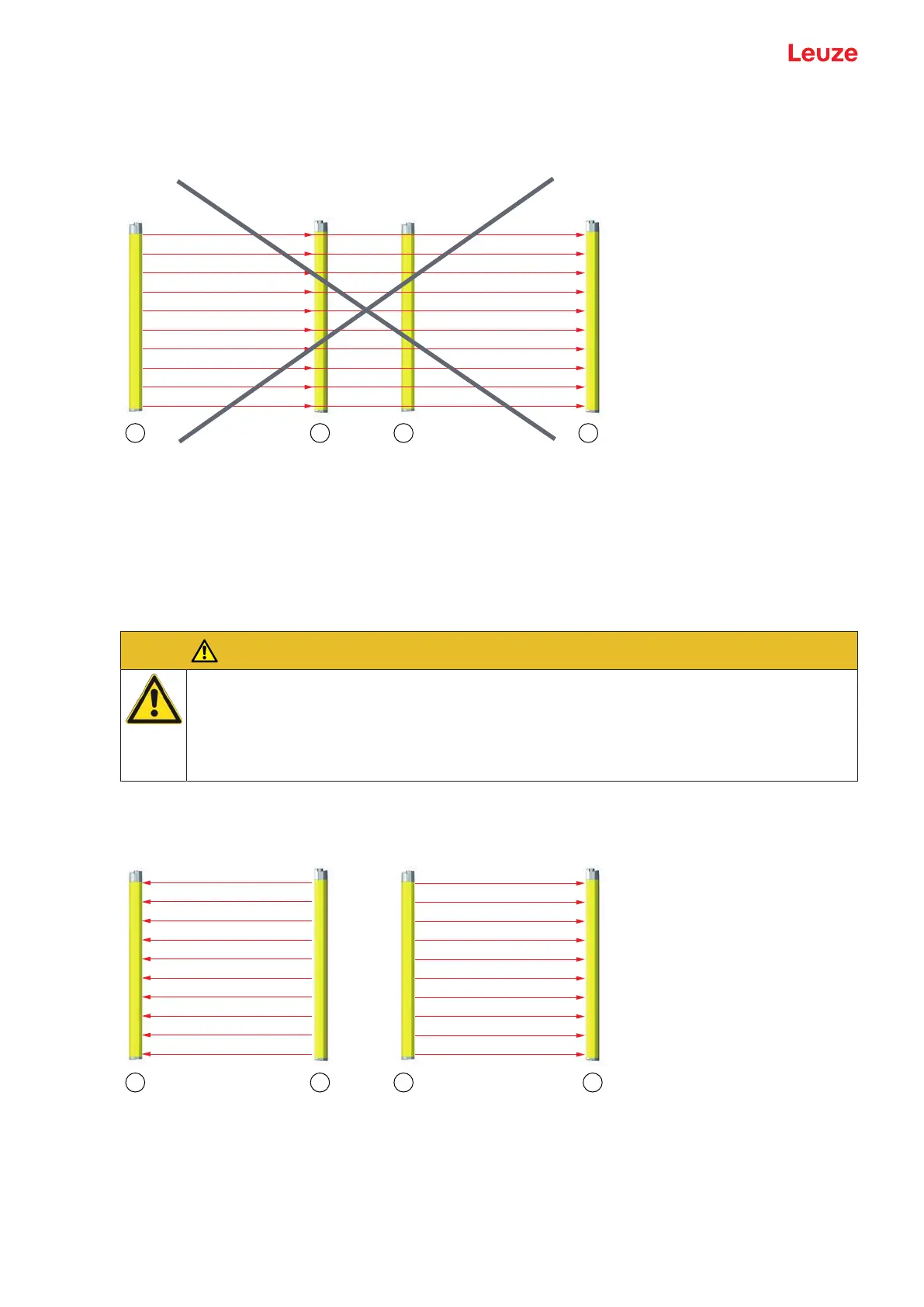

Fig.5.4: Optical crosstalk between adjacent safety sensors (transmitter1 influences receiver2) due to incorrect
mounting
CAUTION
Possible ineffectiveness of the protective function as a result of systems being installed
closely to each other.
The transmitter of one system can influence the receiver of the other system. This can impair
the protective function.
Ä Prevent optical crosstalk between adjacent devices.
Ä Mount adjacent devices with a shield between them or install a dividing wall to prevent mutual interfer-
ence.
Ä Mount the adjacent devices opposite from one another to prevent mutual interference.
1 2 3 4
1 Receiver1
2 Transmitter1
3 Transmitter2
4 Receiver2
Fig.5.5: Opposite mounting
