INSTALLATION
• A secondary switch, with contact distance >3mm, shall be installed before connection to the main power.
• This product must be earthed.

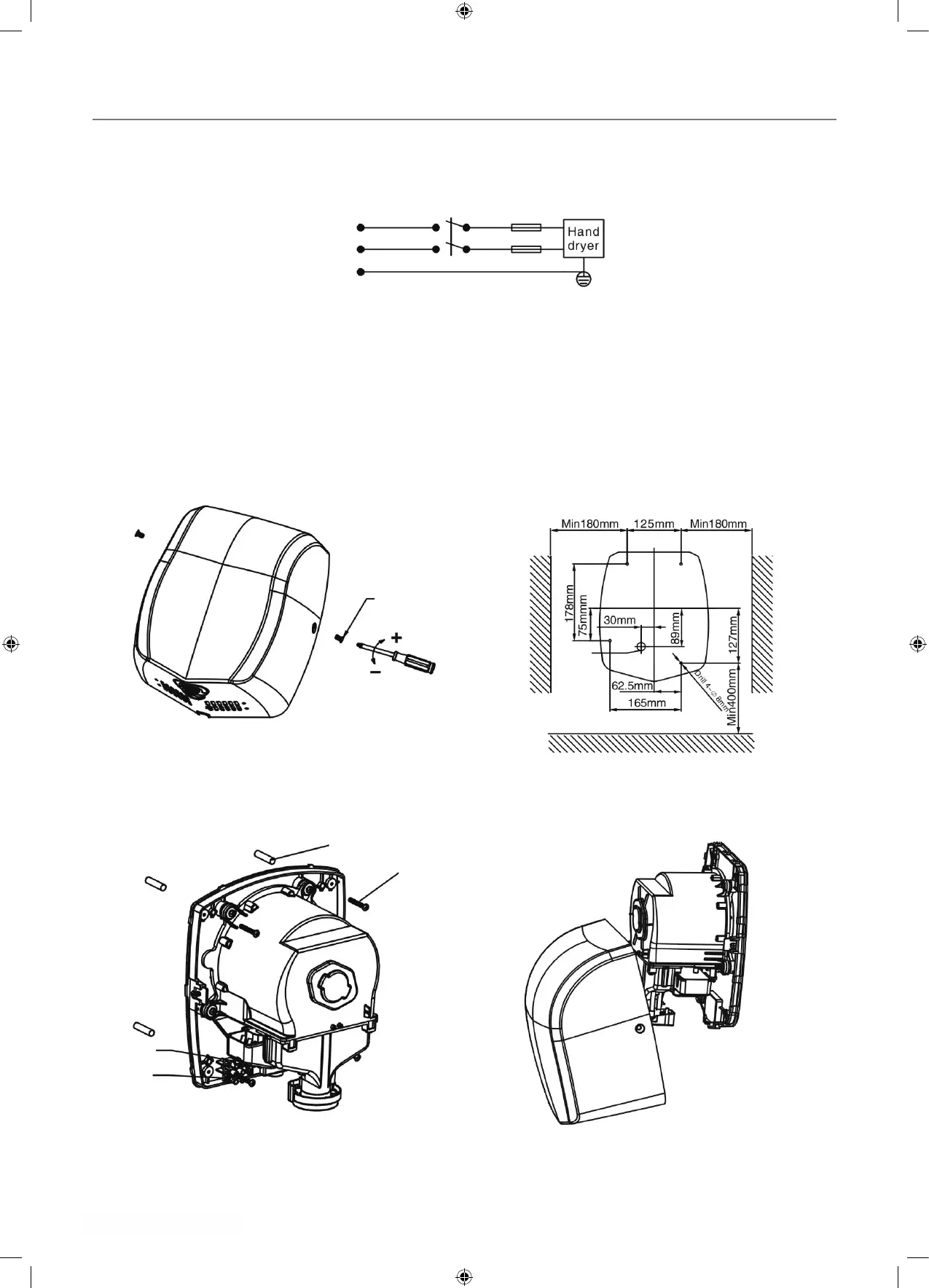

1. As showed in Fig. 2, remove screws at both sides of the hand dryer with the supplied Alan key, and take off the shell. Use
the installation template provided (Fig. 3) to drill 4 x 8mm holes of 35mm deep.
2. Fix the hand dryer to the wall using the wall plugs and screws provided (Fig. 4)
3. Put on the cover, in the direction as shown in the figure below, to cover the hand dryer. Fix the shell to the base board
using screws provided (Fig. 5)
4. In case of concealed installation, knock out the plastic cable cover of wire inlet at the bottom of the back cover, remove
the original power cord, thread the wire through the hole and connect in to the corresponding terminals.
5. Screw
fig. 2
fig. 4
fig. 5
fig. 3
6. Screw
7. Wall plugs
8. Wire terminal
9. Heating element switch
5
7
6
8
9
