1. Introductions
Thank you for purchasing the PoE Switch.
The PoE Switch, is a 8-port 10/100Mbps PoE + 2-port 10/100/1000Mbps (UTP/SFP) Switch with
PoE On/Off control capability. With 8 dip switches, each PoE port can be manually set for On-Off
control. 8-Port PoE Switch supports up to 15.4W/30W on each LAN port when the corresponding
port DIP switch is set ON. The Gigabit ports are supporting 10/100/1000Mbps as uplink port
connecting NVR or other edge switch via UTP or SFP port.
The PoE Switch supports power protections as OVP (Over Voltage Protection), OCP (Over
Current Protection), OTP (Over Temperature Protection), robust short-circuit protection and surge
protection. You may also make use of PoE repeater to extend another 100 meters or serveral 100
meters distance if multiple PoE repeaters are cascaded.

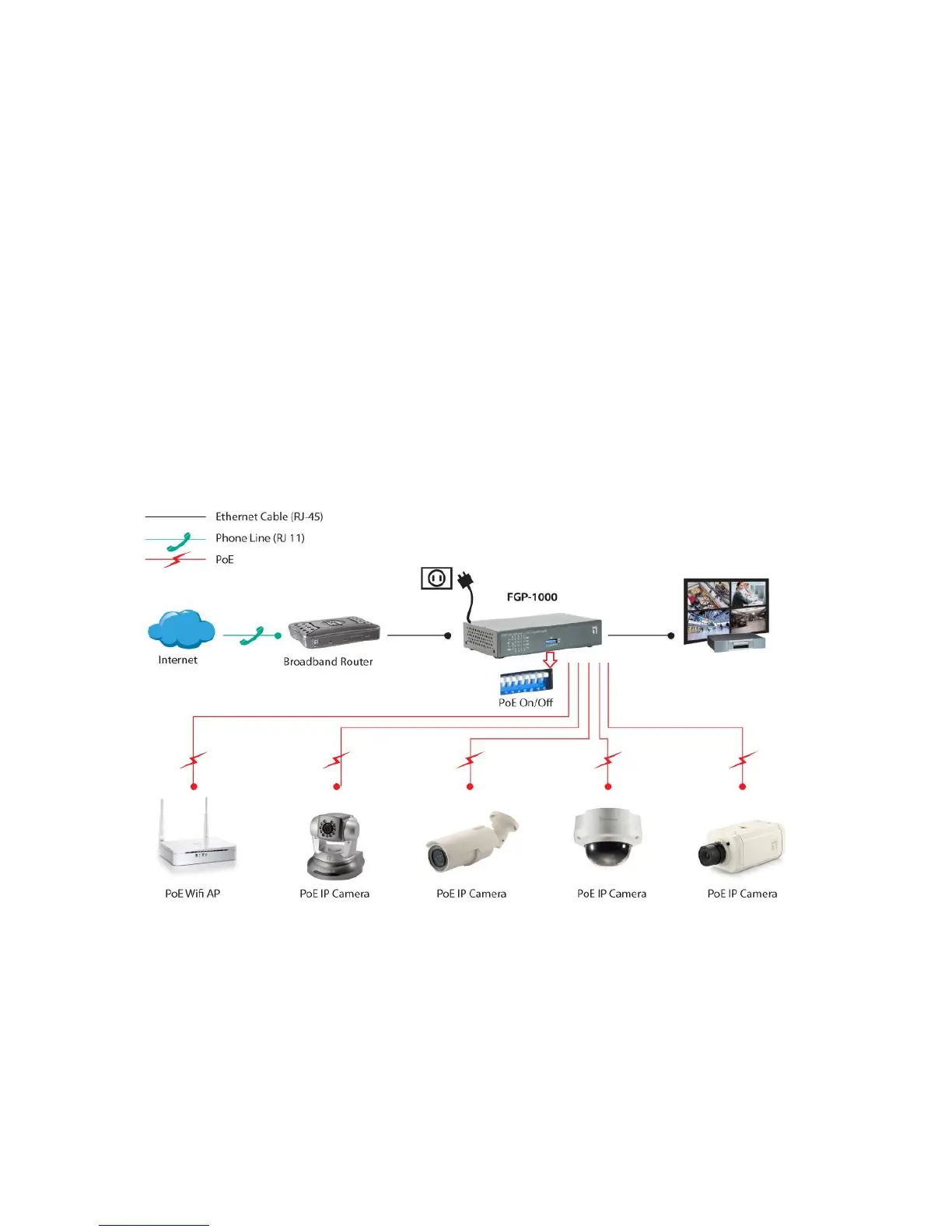

2. Application
PoE Switch Connects with PoE PD Devices
3. Packing Contents
Inside the package you shall find:
(1) 8-Port FE + 1GE + 1SFP PoE Switch
(2) Power Adaptor (DC52V/2.3A)
(3) User Manual
Please check if the packing is damaged or any component is missing. If so, please contact your
distributor.
