LevelOne FSW-0513 Specifications

www.level1.com
I
one world_one brand_one level_
3
Ethernet Switches
LED Indicators
Power, Uplink, LAN 1~4 port, PoE 1~4 port
Power Input
100~240V DC / 50~60Hz 2.7A External Power Adapter
Power Consumption
120W
Dimensions (L x W x H)
120 x 90 x 28mm
Weight
0.8kg
Temperature
Operating: 0~45 Degree °C
Storage: -40~70 Degree °C
Humidity
Operating: 10~90% (Non-condensing)
Storage: 10~90% (Non-condensing)
Certications
FCC, CE
Technical Specications
Standards
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3x Flow Control (full-duplex ow control)
IEEE 802.3af Power over Ethernet
Features
MAC Address: 1K
Buer Memory: 48KB
Transmission Method: Store and Forward
Backplane: 1Gbps
Filtering/Forwarding Rates
100Mbps port-148,000pps
10Mbps port-14,880pps
Transmission Media
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP
Network Interface
4 x 10/100Mbps RJ-45 PoE Ports
1 x 10/100Mbps RJ-45 Uplink Port
PoE Spec
PoE Compatible: IEEE 802.3af Power over Ethernet / PSE
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 48V DC, Max. 48W (High Power)
Power Budget: Max. 120W
Power Pin Assignment: 4/5(+), 7/8(-)

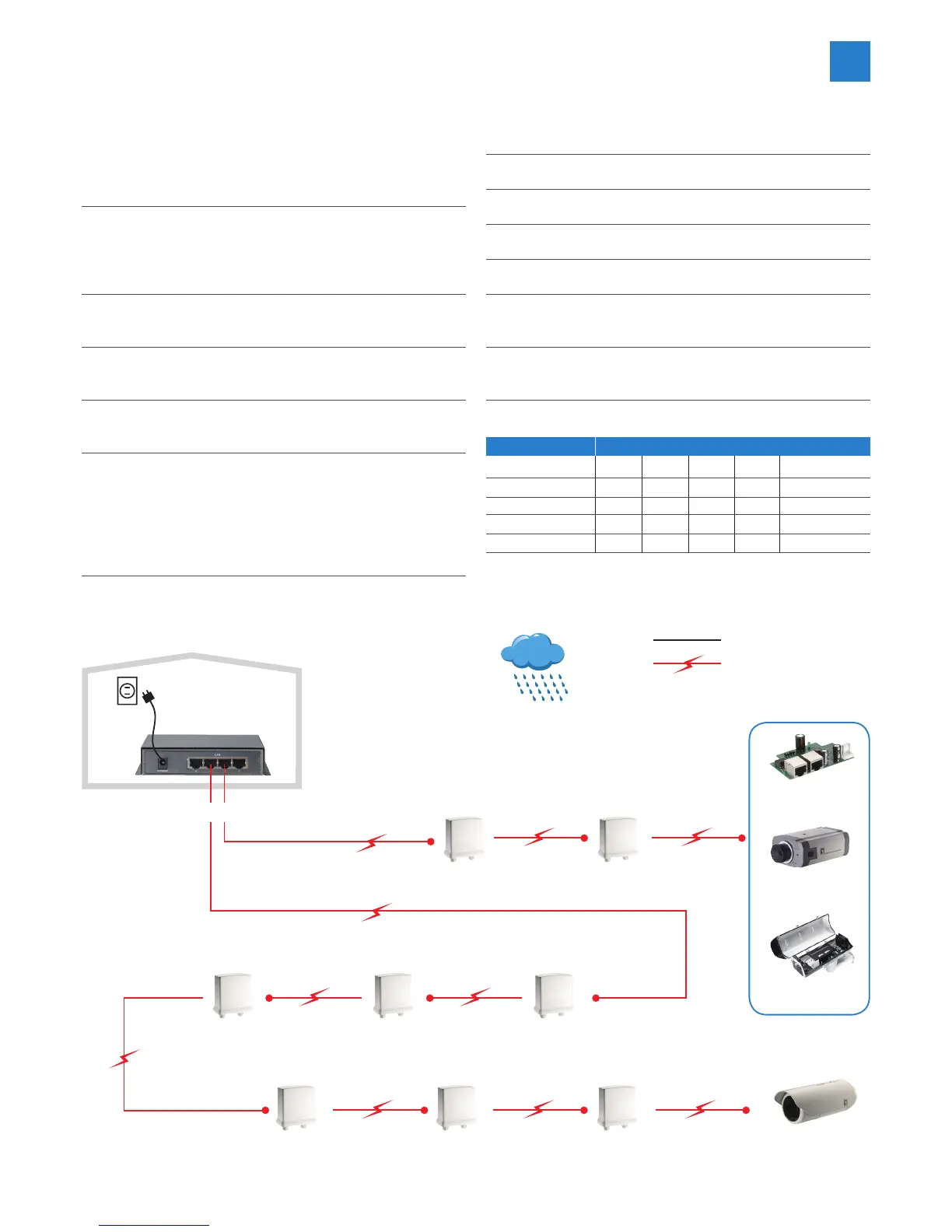

Product Diagram
Port 1 Port 2 Port 3 Port 4 Enable Port
48W OFF OFF OFF 1 port
48W 48W OFF OFF 2 Ports
40W 40W 40W OFF 3 Ports
30W 30W 30W 30W 4 Ports
Enable PoE on
PoE output Power
PoE output Power
PoE output Power
PoE output Power
FSW-0513 (-Z) output power table list
Ethernet Cable (RJ-45)
PoE
POR-1100
FSW-0513 (-Z)
100m
100m
FCS-5011
POR-1100
POM-1100
FCS-1091
BOH-1200
+
+
100m
100m
48W
POR-1100
POR-1100POR-1100
100m100m
POR-1100POR-1100POR-1100
100m100m 100m
100m
Note: These distances are typical results when used with 18~19Ω 24 AWG Cat.5 Cable
