- 17 -
 For 3-in-1 LCD Drawer to external KVM Box
 Plug the DC12V to the drawer.
 Plug HDB-15 end of the KVM cable to the drawer and plug the other end of the cable (with the USB
and video) to the external KVM box’s console.

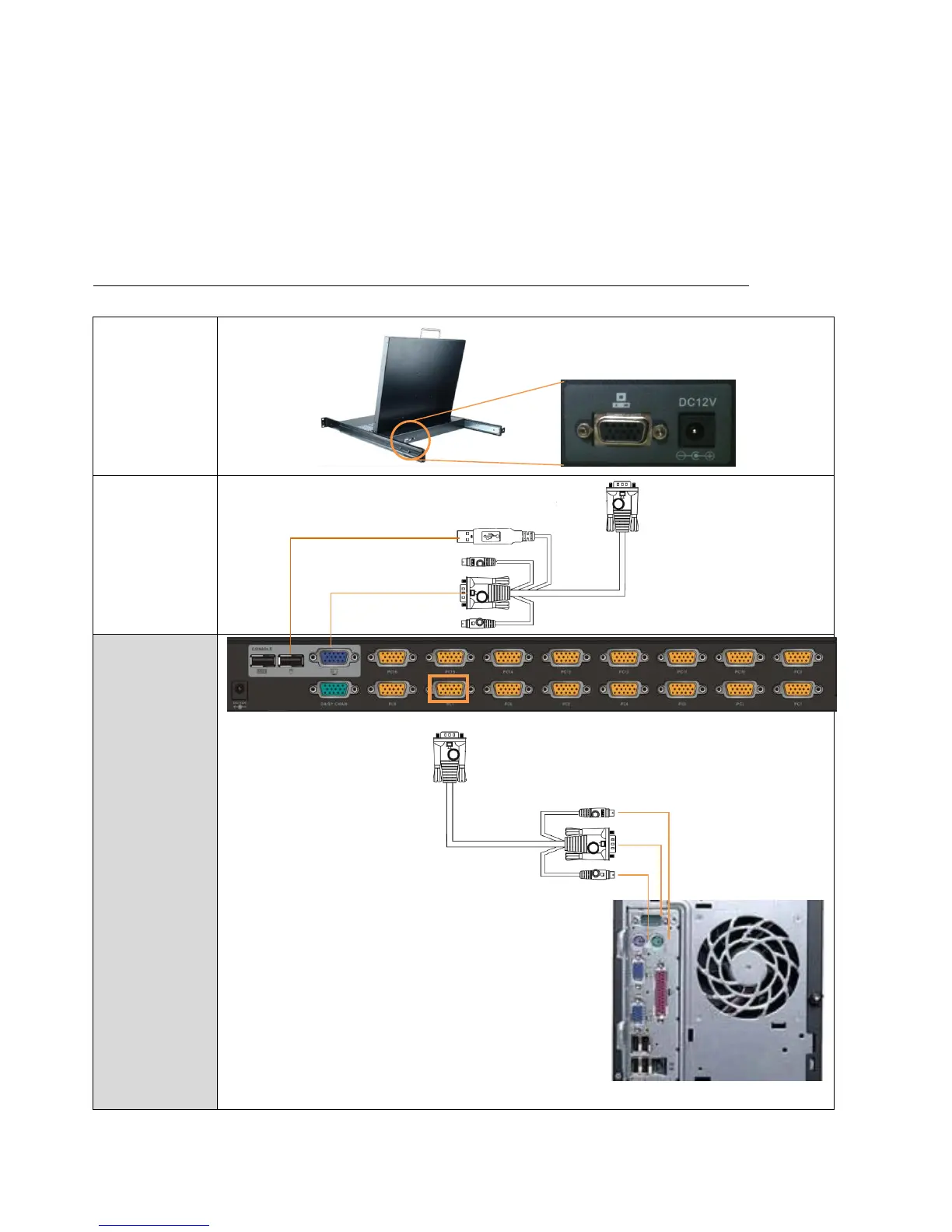

FIG.2 Single Console Connection between the drawer and the external KVM Module
KVM-8901
3 M cable (PS/2
mouse, PS/2
keyboard, DB15
VGA) x 1, USB x
1
External KVM
Module
(KCM-1632)
