5.2 Connection Diagrams
 For 3-in-1 LCD Drawer
 Plug the DC12V to the drawer.
 Plug HDB-15 end of the KVM cable to the drawer and plug the other end of the cable (with the
sequence mouse, keyboard, then video) to PC’s ports.

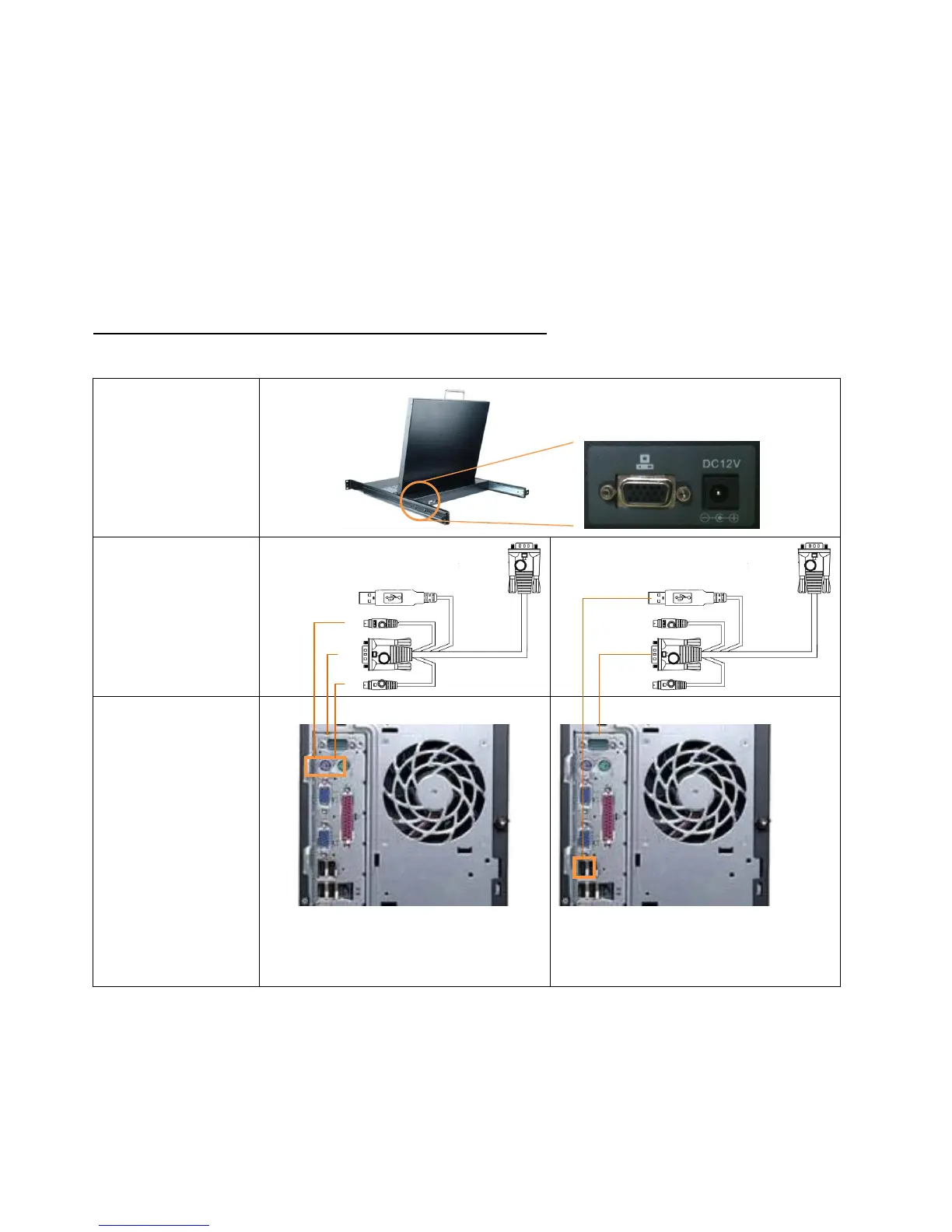

FIG.1 Single Console Connection between drawer and PC
KVM-8901
3 M cable (PS/2
mouse, PS/2
keyboard, DB15
VGA) x 1, USB x 1
PC
Connecting to PC with PS2 I/F
Connecting to PC with USB I/F
*The cable has ‘converter’ function, which converts the PS2 to USB.
