2. Application Notes
1) Ethernet & Power Extension over RJ-11 Cable
3. Features
Two-wire cables are used to connect 100Mbps Fast Ethernet PoE devices
Max. distance up to 300m for 24AWG cable
Max. data rate up to 60 Mbps full duplex
Remote PoE capability for PD devices of WiFi AP, IP camera, IP telephones
Up to 15 watts for remote PoE, depending on PSE Power
Easy installation by indoor & outdoor different models
IEEE 802.3af PSE Compliant for Class 0-3
Dip Switches for RJ-11 rate settings
Auto MDIX for 10/100 BaseT Ethernet LAN Ports
Low-Latency for Video/Voice/Data applications
4. Packing Contents
Inside the package you should find:
(1) One POT-xxxx unit (Master or Slave)
(2) One User Manual
Please check if the packing is damaged or any component is missing. If so, please contact your
distributor.
5. LED Indicators
On the front panel of POT-xxxx, there are 4 LED indicators as the following
POWER: “Green On” indicates power is on and normal.
LAN: “Green On” indicates Ethernet LAN port is in connection.
“Flashing” indicates Ethernet LAN data activities.
RJ-45
RJ-45
POT-0100
POT-1110

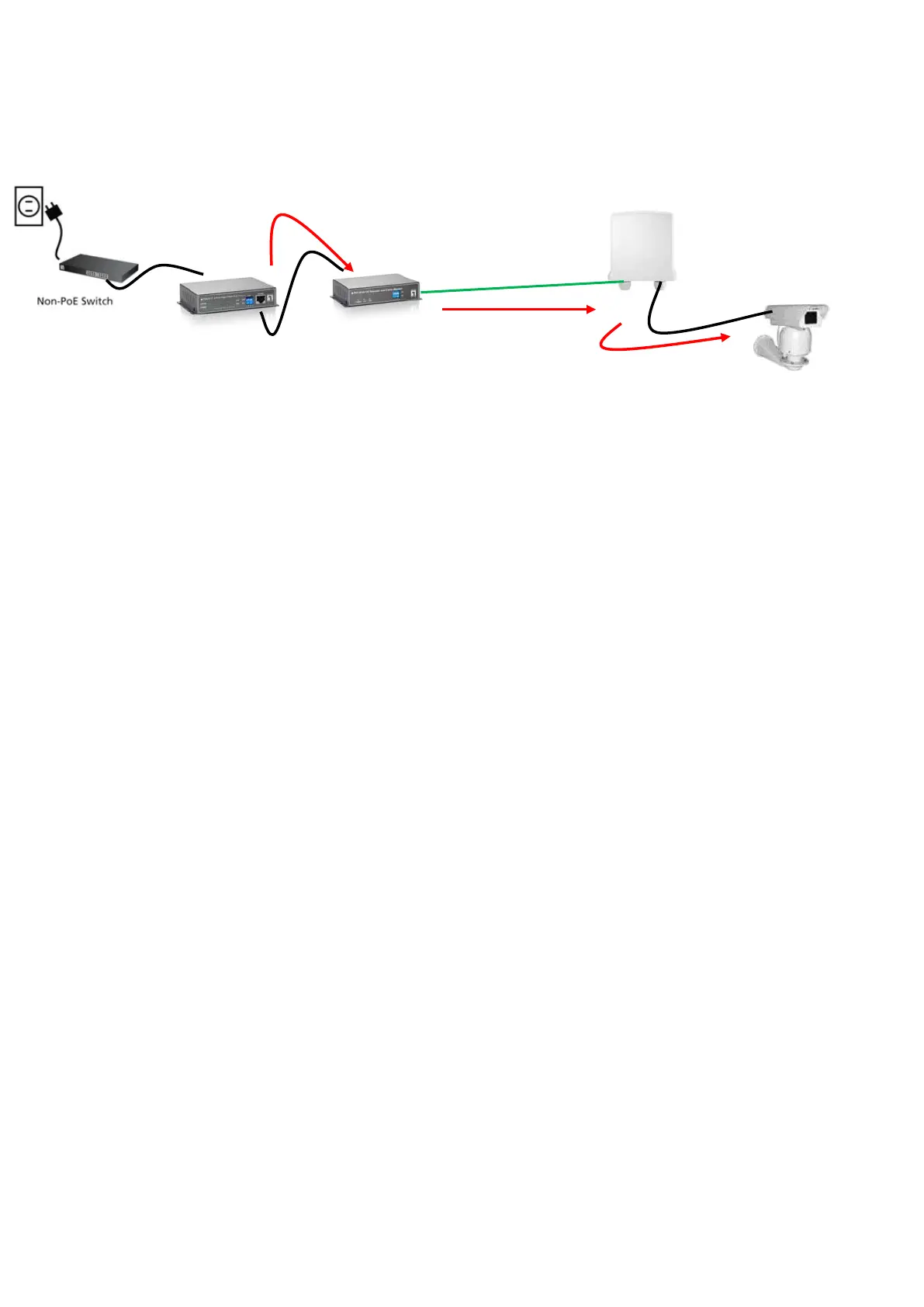

Up to 300m over RJ-11
FSW-0513
