3
PSE Power
PoE Switch
POT-1110
POT-0100
RJ-45
RJ-11
RJ-45
PSE Power
PSE Power
PoE Output
Power
A
B
C
LINE: “Green On” indicates 2-wire line is in connection.
“Flashing” indicates 2-wire line is in line handshaking.
ACTIVE: “Green On” indicates as POT-0110 Slave unit.

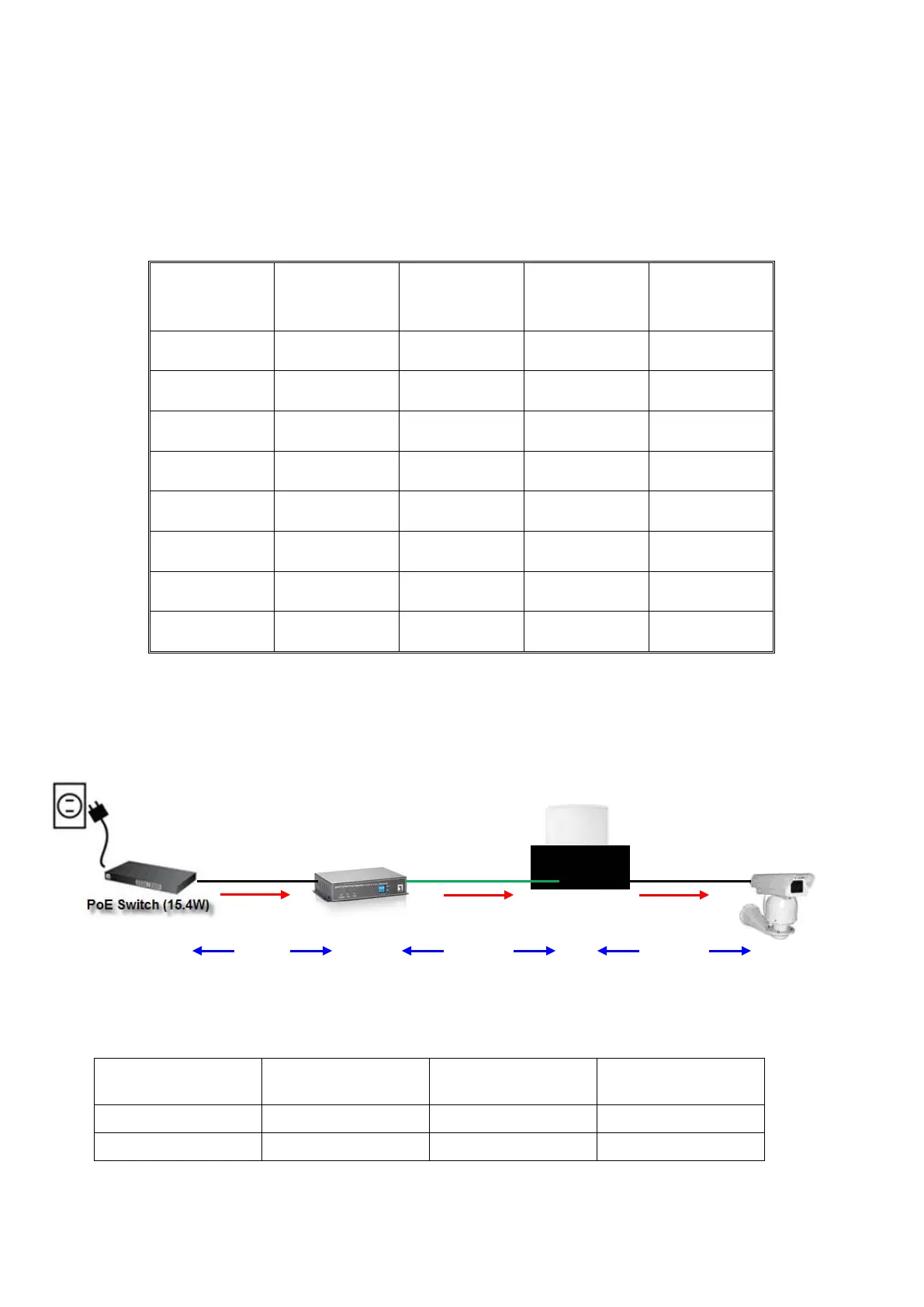

6. Dip Switches Settings(default DIP setting All is OFF)
Pin 1 Pin 2 Pin 3 Pin 4
Line Rate
(Mbps)
NA
OFF OFF OFF 10/10
NA
ON OFF OFF 20/20
NA
OFF ON OFF 30/30
NA
ON ON OFF 40/40
NA
OFF OFF ON 50/50
NA
ON OFF ON 60/60
NA
OFF ON ON 60/60
NA
ON ON ON 60/60
7. Data Rates & Distances
Performance for AWG 24 Line with 15.4W PSE (Distance A=1m)
Line Rate (Mbps) Distance B (Meter) Distance C (Meter)
Max. PoE Output
Power (Watts)
60/60 100 100 7
60/60 200 100 NA
