Leviton Decora Illumatech User Manual

Figure 2 - Color Conversion
Hot (Black)
Neutral (White)
Fan
Fan Speed Control
3-Way Switch
Black
Black
Green
Ground
Green
Ground
Black
White
Red
Line
120VAC, 60Hz
Common
Terminal
(Black Screw)
Hot (Black)
Neutral (White)
Fan
Fan Speed Control
Black
Black
Green
Ground
Black
White
Red
Line
120VAC, 60Hz
Cap with
Wire Connector

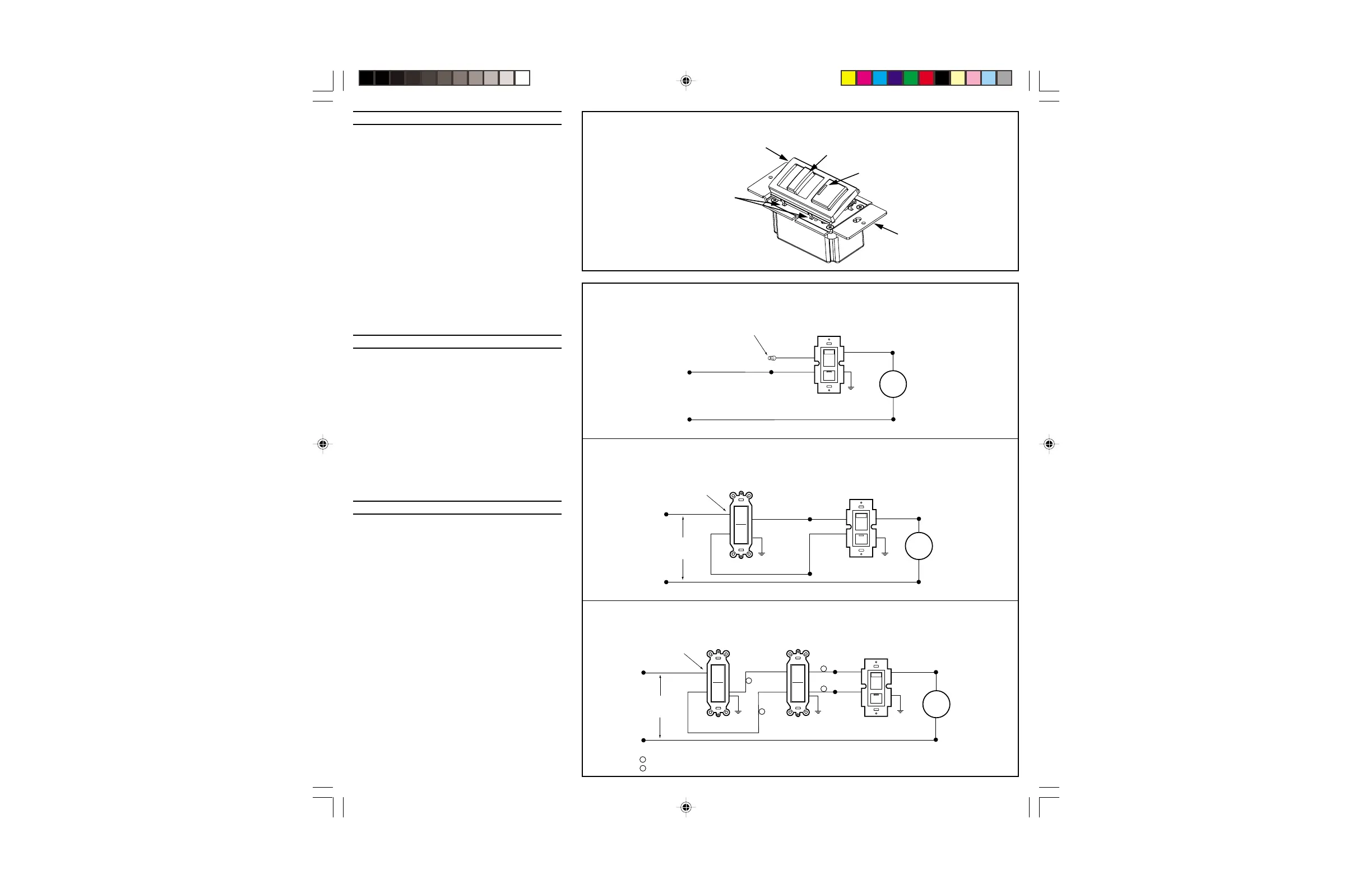

Wiring Diagram 1 - Single Location Control Application
COLOR CONVERSION PROCEDURE
The color of this device can be changed to suit your
interior design requirements. Simply obtain a color
conversion kit of the appropriate color from your
Leviton distributor and proceed as follows (please note
that wallplate must be removed).
1. Select the color of the face you desire.
2. The frame has snaps on its sides. Using your
fingers, grip around the Decora
®
frame and push on
one side to release it from the strap (see Figure 2).
3. Take the new frame and position it properly to the
strap. Position the Slide Switch Shaft with the
opening in the frame and line up the plastic snaps
with the square holes in the strap. Insert the snaps
on one side of the frame into the strap.
4. Firmly press sideways and down to slip the other
snaps into place. The frame snaps in with a audible
click. Ensure that all four snaps are secure.
Replace Decora
®
wallplate. The color conversion
is complete.
TO OPERATE
• GREEN LED will remain ON when the fan is OFF
- Facilitates access to switch in the dark.
• Depress push-button switch to ON position
- Fan will turn ON (GREEN LED will turn OFF) at
level set by slider.
• Move slider control lever up or down to one of
three levels; HIGH, MEDIUM, or LOW
- Fan will increase or decrease in speed
respectively for desired level.
• Depress push-button switch to OFF position
- fan will turn OFF (GREEN LED will turn ON).
• Fan will turn ON at set speed level (from either
switch location in a 3-way installation).
TROUBLESHOOTING
• Fan does not turn ON and ON/OFF LED does not
turn ON
- Circuit breaker or fuse has tripped.
- Fan has burned out.
- Fan is not connected to line Neutral.
Wiring Diagram 2 - Two Location Control Application
Frame
Strap
Snaps
Push in 2 Locations
ON/OFF
LED
Slider
Wiring Diagram 2 - Three Location Control Application
Hot (Black)
Neutral (White)
Fan
Fan Speed Control
3-Way Switch
Black
Black
Green
Ground
Green
Ground
Black
White
Red
Line
120VAC, 60Hz
Common
Terminal
(Black Screw)
4-Way Switch
Green
Ground
1
1
Travelers between switches "IN"
Travelers between switches "OUT"
2
1
2
2
DI-000-IPF01-00A 11/30/00, 1:56 PM2
