> 60A
Load Power
LOAD
Load
Neutral
Phase 1
Phase 2
Bonding
strap

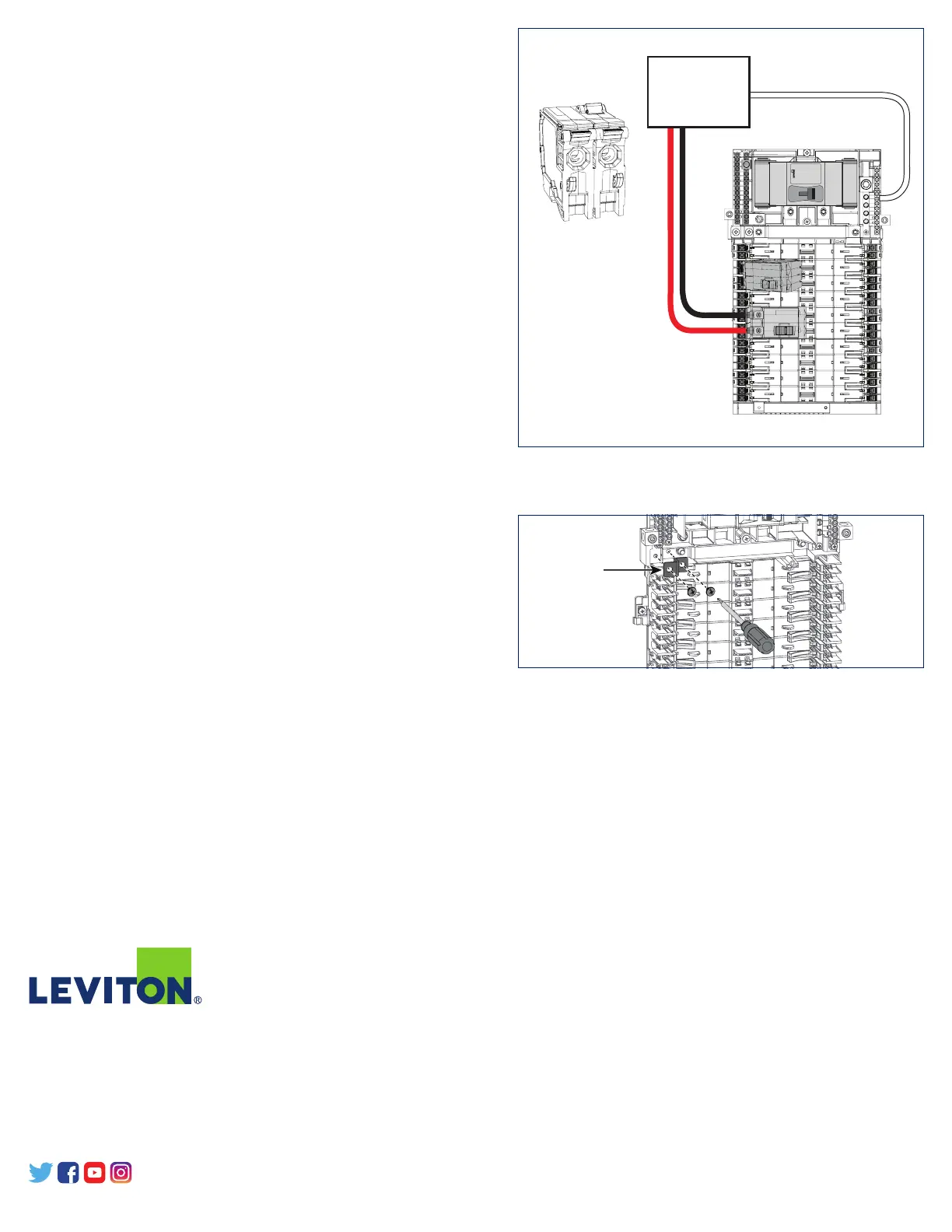

Figure 3:
Neutral wire placement for 2-pole breakers greater than 60A.
Figure 4:
Bonding Strap
•
All panels 20-Space and larger come with 23 ground
terminals, factory installed. Each terminal is rated for
landing multiple wires per the panel label.
•
There are 6 pre-drilled areas for additional ground bars
on the back of the enclosure.
•
Utilize the bonding strap (Figure 4) for all service
entrance panels. DO NOT use the bonding strap
in a main lug only panel.
•
There is no need to remove the screw that bonds
the structure back to the enclosure.
•
NEC
®
2020 code 3-Wire vs 4-Wire 240V appliance Circuit
Grounding: Many 240V appliances have the Ground and
Neutral wires connected together in the appliance from the
factory. This only works for a 3-wire hook up with no ground
connection. When installing the appliance on a new install
with 3 wires and a ground, the grounds and neutrals must
be separated by removing the ground strap in the appliance.
If the ground strap is left installed, then GFCI breakers will
not reset.
If you have any questions, we’re here to help:
1-800-824-3005, Option 4.
GR-110922A-tp
Leviton Manufacturing Co., Inc.
Tech Line: 1-800-824-3005
Mon-Fri 8am-10pm EST, Saturday 9am-7pm EST, Sunday 9am-5pm EST
For 24/7 product support visit www.leviton.com/support
All trademarks are the property of their respective owners.
Visit our Website at: www.leviton.com
© 2023 Leviton Manufacturing Co., Inc. All rights reserved.
