9

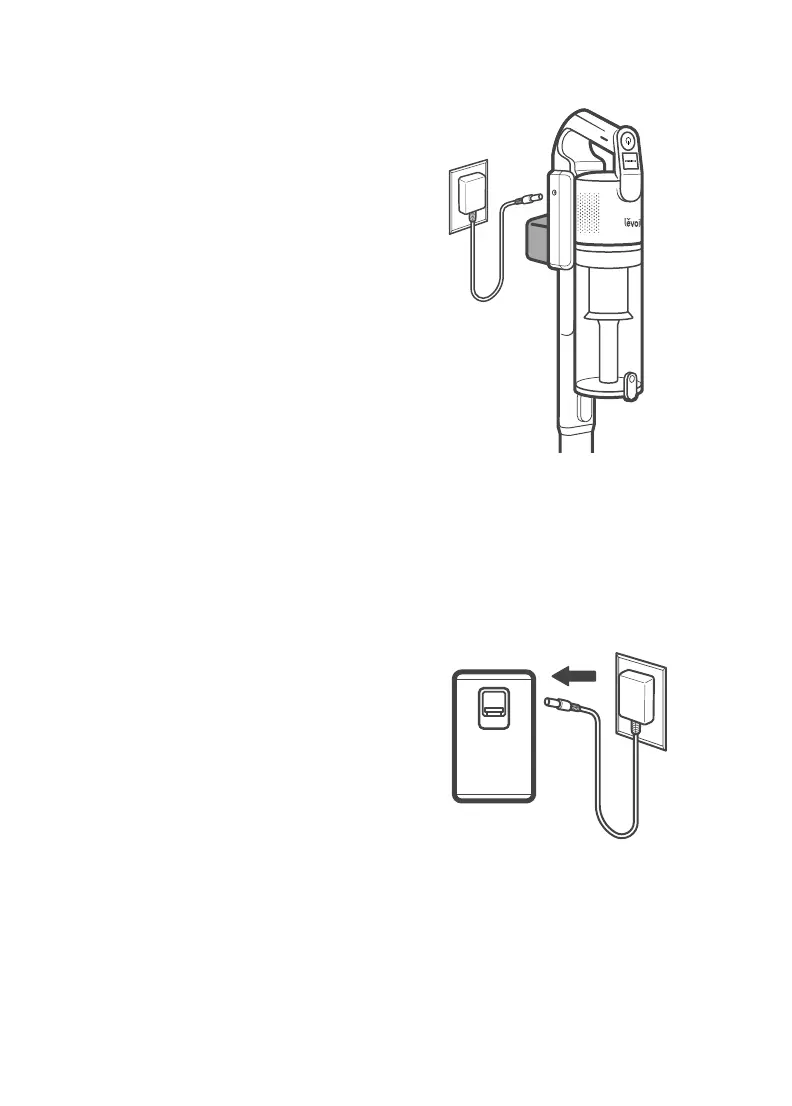

Figure 2.4
Figure 2.3
Note: Charging time is about 4–5 hours.
Note: Charging time is about 4–5 hours.
2. Hang the vacuum on the wall mount.
[Figure 2.3]
3. Insert the charger into the charging port on
the battery. [Figure 2.3]
4. Plug the charger into the outlet. The
battery lights will blink while charging.
[Figure 2.3]
5. When the vacuum is fully charged, the 3
battery indicator lights will turn solid for 5
minutes, then turn o.
Alternatively, the battery can be charged
separate from the vacuum body.
1. Press the Battery Release Button to
remove the battery.
2. Insert the charger into the charging port on
the battery. [Figure 2.4]
3. Plug the charger into an outlet. The battery
indicator lights will blink while charging.
CARE & MAINTENANCE (CONT.)
4. When the vacuum is fully charged, the 3
battery indicator lights will turn solid for 5
minutes, then turn o.
