28
Part No.
4-C114
4-126
6-56
8-89
14-14
14-260
14-394
14-395
14-400
14-429
14-432
14-458
SB15
16-39
16-148
16-194
16-214
16-239
16-255
16-279
16-318
16-386
17-87
17-114
17-145
17-146
17-149
17-150
17-157
18-38
18-70
Plate
*
8
10
4
3
8
5
3, 4, 6, 7
6, 9
4, 5, 6, 9
2, 4, 6, 7
3, 4, 7. 9
3
3
3
3
10
6
7
10
2, 3
9
4
3

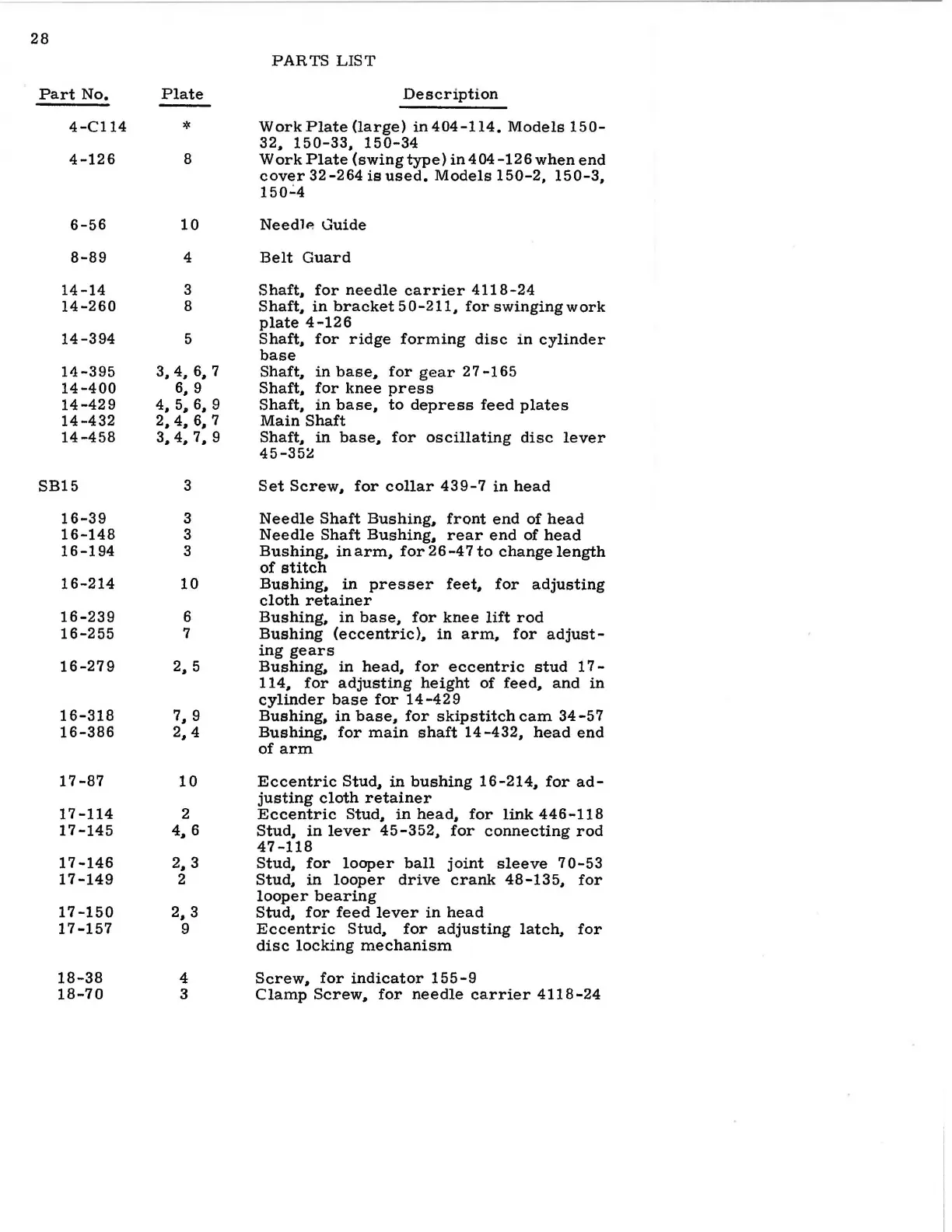

PARTS LIST
Description
Work Plate (large) in 404-114. Models 150-
32, 150-33, 150-34
Work Plate (swing type) in404-126when end
cover 32-264 is used. Models 150-2, 150-3,
150.:.4
NeedJP.
Guide
Belt Guard
Shaft, for needle carrier 4118-24
Shaft, in bracket 50-211, for swinging work
plate 4-126
Shaft, for ridge forming disc in cylinder
base
Shaft, in base, for gear 27-165
Shaft, for knee press
Shaft, in base, to depress feed plates
Main Shaft
Shaft, in base, for oscillating disc lever
45-35:.!
Set Screw, for collar 439-7 in head
Needle Shaft Bushing, front end of head
Needle Shaft Bushing, rear end of head
Bushing, in arm, for 26-47 to change length
of stitch
Bushing, in presser feet, for adjusting
cloth retainer
Bushing, in base, for knee lift rod
Bushing (eccentric), in arm, for adjust-
ing gears
Bushing, in head, for eccentric stud 17-
114, for adjusting height of feed, and in
cylinder base for 14-429
Bushing, in base, for skip stitch cam 34-57
Bushing, for main shaft 14-432, head end
of arm
Eccentric Stud, in bushing 16-214, for ad-
justing cloth retainer
Eccentric Stud, in head, for link 446-118
Stud, in lever 45-352, for connecting rod
47-118
Stud, for looper ball joint sleeve 70-53
Stud, in looper drive crank 48-135, for
looper bearing
Stud, for feed lever in head
Eccentric Stud, for adjusting latch, for
disc locking mechanism
Screw, for indicator 155-9
Clamp Screw, for needle carrier 4118-24
