Lewis 150-2 - Page 30

Part No.
18-71
18-74
18-121
18-270
18-277
18-292
18-307
18-326
18-330
18-355
18-416
18-492
18-493
18-500
18-565
18-609
18-623
18-624
18-628
18-643
18-647
18-662
18-664
18-674
18-700
18-701
18-702
18-732
18-737
18-738
18-749
18-764
18-767
Plate
2
3
8
10
8
10
3
6
2, 7. 8, 9
4
10,11
2
6
9
2
10
10
4
8
10
3, 7
2
2, 4, 7
2
7
5
3
2
2
2
9
4
2. 3
29

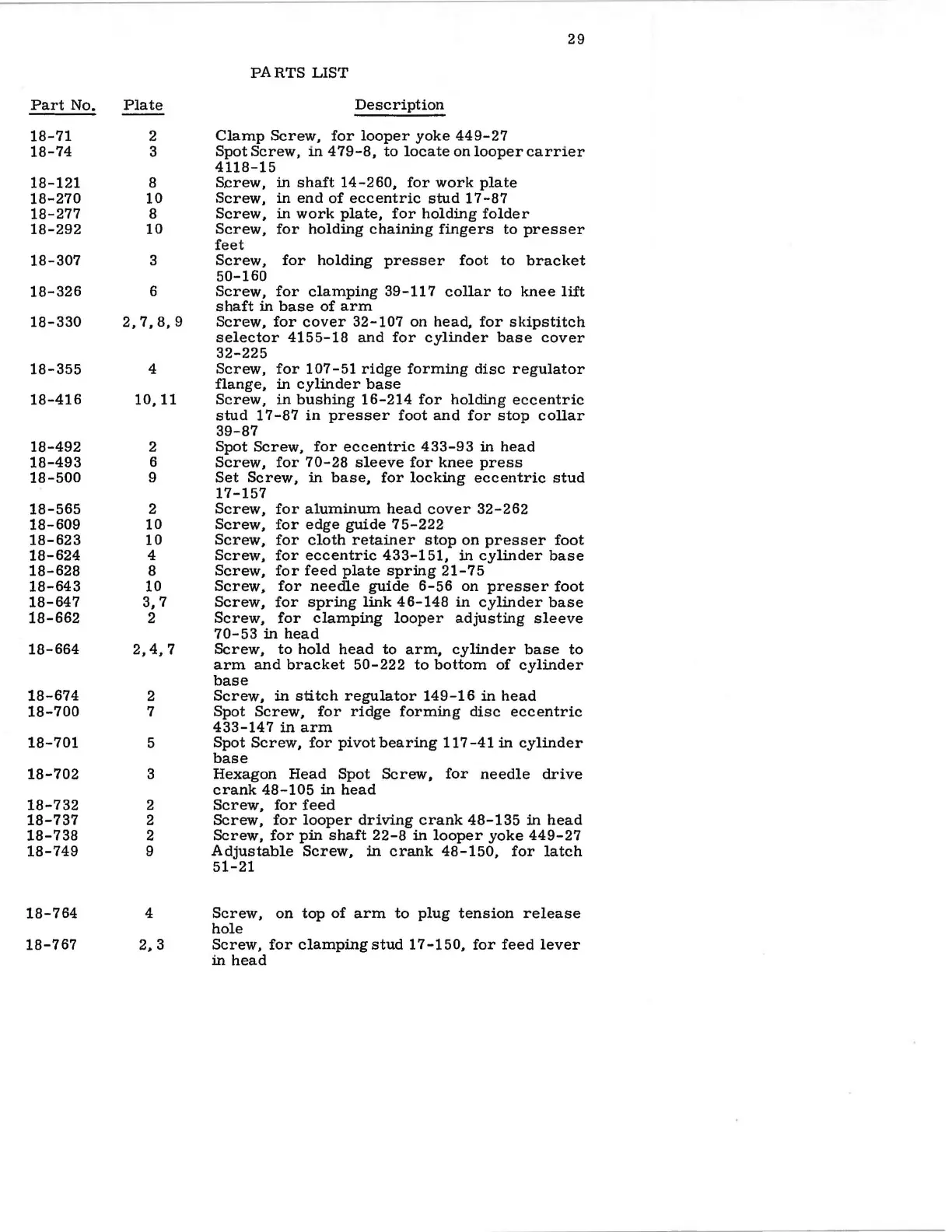

PARTS LIST
Description
Clamp Screw, for looper yoke 449-27
Spot Screw, in 479-8, to locate on looper carrier
4118-15
S.crew, in shaft 14-260, for work plate
Screw, in end of eccentric stud 17-87
Screw, in work plate, for holding folder
Screw, for holding chaining fingers to presser
feet
Screw, for holding presser foot to bracket
50-160
Screw, for clamping 39-117 collar to knee lift
shaft in base of arm
Screw, for cover 32-107 on head, for skipstitch
selector 4155-18 and for cylinder base cover
32-225
Screw, for 107-51 ridge forming disc regulator
flange, in cylinder base
Screw, in bushing 16-214 for holding eccentric
stud 17-87 in presser foot and for stop collar
39-87
Spot Screw, for eccentric 433-93 in head
Screw, for 70-28 sleeve for knee press
Set Screw, in base, for locking eccentric stud
17-157
Screw, for aluminum head cover 32-262
Screw, for edge guide 75-222
Screw, for cloth retainer stop on presser foot
Screw, for eccentric 433-151, in cylinder base
Screw, for feed plate spring 21-75
Screw, for needle guide 6-56 on presser foot
Screw, for spring link 46-148 in cylinder base
Screw, for clamping looper adjusting sleeve
70-53 in head
Screw, to hold head to arm, cylinder base to
arm and bracket 50-222 to bottom of cylinder
base
Screw, in stitch regulator 149-16 in head
Spot Screw, for ridge forming disc eccentric
433-147 in arm
Spot Screw, for pivot bearing 117-41 in cylinder
base
Hexagon Head Spot Screw, for needle drive
crank 48-105 in head
Screw, for feed
Screw, for looper driving crank 48-135 in head
Screw, for pin shaft 22-8 in looper yoke 449-27
Adjustable Screw, in crank 48-150, for latch
51-21
Screw, on top of arm to plug tension release
hole
Screw, for clamping stud 17-150, for feed lever
in head
