Lewis 150-2 - Page 34

Part No.
45-352
45-457
45-470
46-148
46-164
46-202
47-118
48-105
48-127
48-150
50-160
50-210
50-211
50-222
50-227
50-281
51-14
51-21
57-56
62-25
68-21
70-28
70-53
70-54
70-72
71-87
71-105
LS75
75-210
75-222
76-12
79-9
Plate
4, 5, 6
11
2, 3
3, 7
5, 6,9
2,3
4, 6, 7
3
4, 5, 6, 9
4, 6, 9
3
4,7
8
3, 4, 6, 7
...
•r
11
8
9
2
6, 7
11
6
2
6
11
6
11
3
10
10
5
5
33

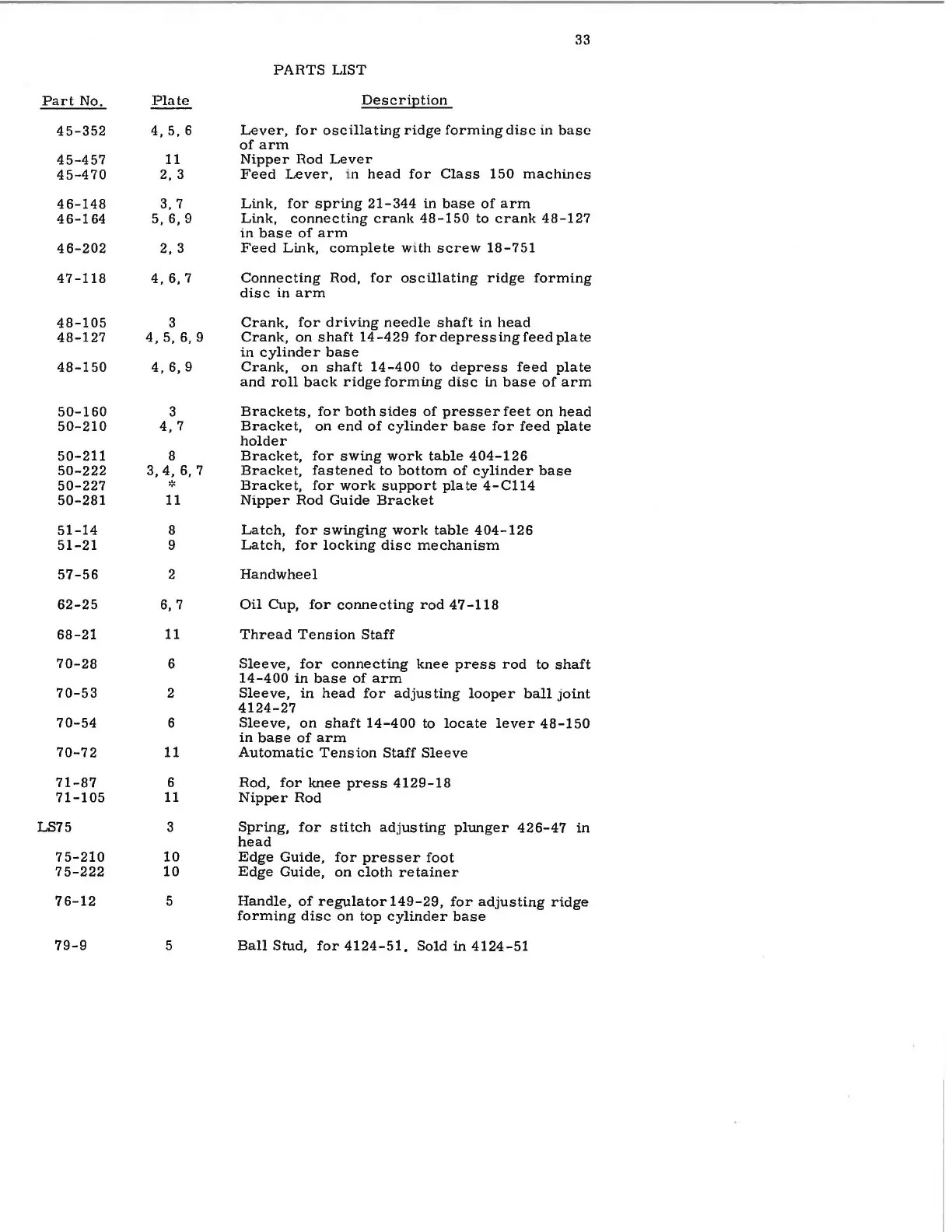

PARTS LIST
Description
Lever, for oscillating ridge forming disc in base
of artn
Nipper Rod Lever
Feed Lever, in head for Class 150 machines
Link, for spring 21-344 in base of arm
Link, connecting crank 48-150 to crank 48-127
in base of arm
Feed Link, complete w it h screw 18-751
Connecting Rod, for oscillating ridge forming
disc in arm
Crank, for driving needle shaft in head
Crank, on shaft 14-429 fordepressingfeedplate
in cylinder base
Crank, on shaft 14-400 to depress feed plate
and roll back ridge forming disc in base of arm
Brackets, for both sides of presser feet on head
Bracket, on end of cylinder base for feed plate
holder
Bracket, for swing work table 404-126
Bracket, fastened to bottom of cylinder base
Bracket, for work support plate 4-C114
Nipper Rod Guide Bracket
Latch, for swinging work table 404-126
Latch, for locking disc mechanism
Handwheel
Oil Cup, for connecting rod 47-118
Thread Tension Staff
Sleeve, for connecting knee press rod to shaft
14-400 in base of arm
Sleeve, in head for adjusting looper ball joint
4124-27
Sleeve, on shaft 14-400 to locate lever 48-150
in base of arm
Automatic Tension Staff Sleeve
Rod, for knee press 4129-18
Nipper Rod
Spring, for stitch adjusting plunger 426-47 in
head
Edge Guide, for presser foot
Edge Guide, on cloth retainer
Handle, of regulator 149-29, for adjusting ridge
forming disc on top cylinder base
Ball Stud, for 4124-51. Sold in 4124-51
