~.J

~,

i

:•:

~

.

.

.

.

'

'

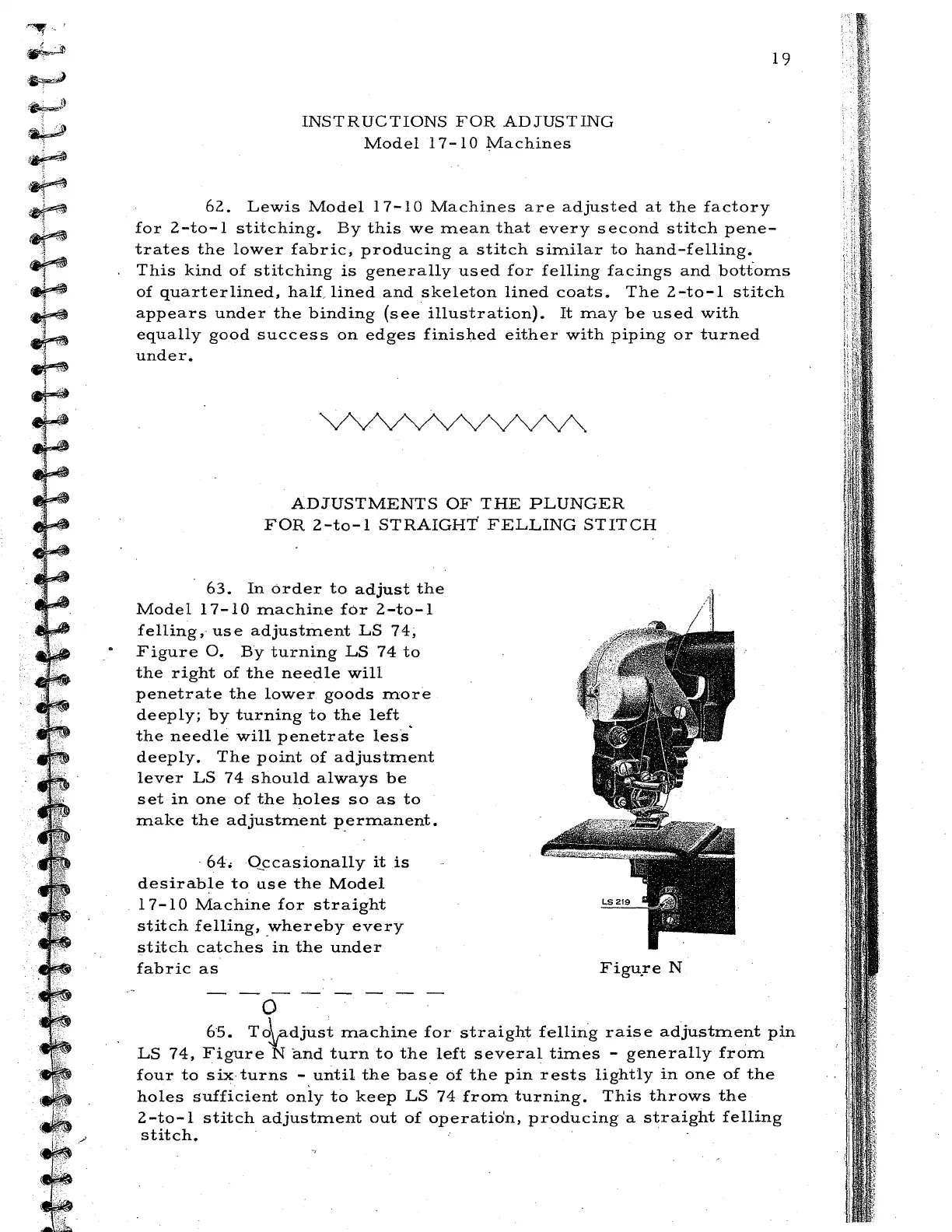

INSTRUCTIONS

FOR

ADJUSTING

Model

17-10

Machines

19

62.

Lewis

Model

17-10

Machines

are

adjusted

at

the

factory

for

2-to-1

stitching.

By

this

we

mean

that

every

second

stitch

pene-

trates

the

lower

fabric,

producing

a

stitch

similar

to

hand-felling.

This

kind

of

stitching

is

generally

used

for

felling

facings

and

botfoms

of

quarterlined,

half

lined

and

skeleton

lined

coats.

The

2-to-1

stitch

appears

under

the

binding

(see

illustration).

It

may

be

used

with

equally

good

success

on

edges

finished

either

with

piping

or

turned

under.

ADJUSTMENTS

OF

THE

PLUNGER

FOR

2-to-1

STRAIGHT'

FELLING

STITCH

63.

In

order

to

adjust

the

Model

17-10

machine

for

2-to-1

felling,

use

adjustment

LS

74,

Figure

0.

By

turning

LS

74

to

the

right

of

the

needle

will

penetrate

the

lower

goods

more

deeply;

by

turning

to

the

left

the

needle

will

penetrate

less'

deeply.

The

point

of

adjustment

lever

LS

74

should

always

be

set

in

one

of

the

holes

so

as

to

make

the

adjustment

p_ermanent

.

.

64.

o_ccasionally

it

is

desirable

to

use

the

Model

17-10

Machine

for

straight

stitch

felling,

_whereby

every

stitch

catches

in

the

under

fabric

as

0

Figu.re

N

65.

To\adjust

machine

for

straight

felling

raise

adjustment

pin

LS

74,

Figure

'Nand

turn

to

the

left

several

times

-

generally

from

four

to

six·

turns

-.until

the

has

e

of

the

pin

rests

lightly

in

one

of

the

holes

sufficient

only

to

keep

LS

74

from

turning.

This

throws

the

2-to-1

stitch

adjustment

out

of

operation,

producing

a

straight

felling

stitch.
