Lewmar CPX Vertical Winlass ref 66300104 Iss. 5 | 19
6.4-1
6.3 Gypsy/drum replacement
Proceed as 6.2 except place the winch handle into the drum top nut and remove drum assembly to get to gypsy.
WARNING! Isolate the
windlass using circuit
breaker/isolator.
WARNING! Ensure rode is
adequately secured to an
independent strong point.
6.4 Control arm replacement/service/retro-fitting
CPX1-3 are factory fitted with control arms as standard. CPX 4-5 are not supplied with a control arm but can be
retro-fitted with a Lewmar control arm kit No. 66810031 available from Lewmar dealers.
Remove gypsy, proceed as sec.6.2.

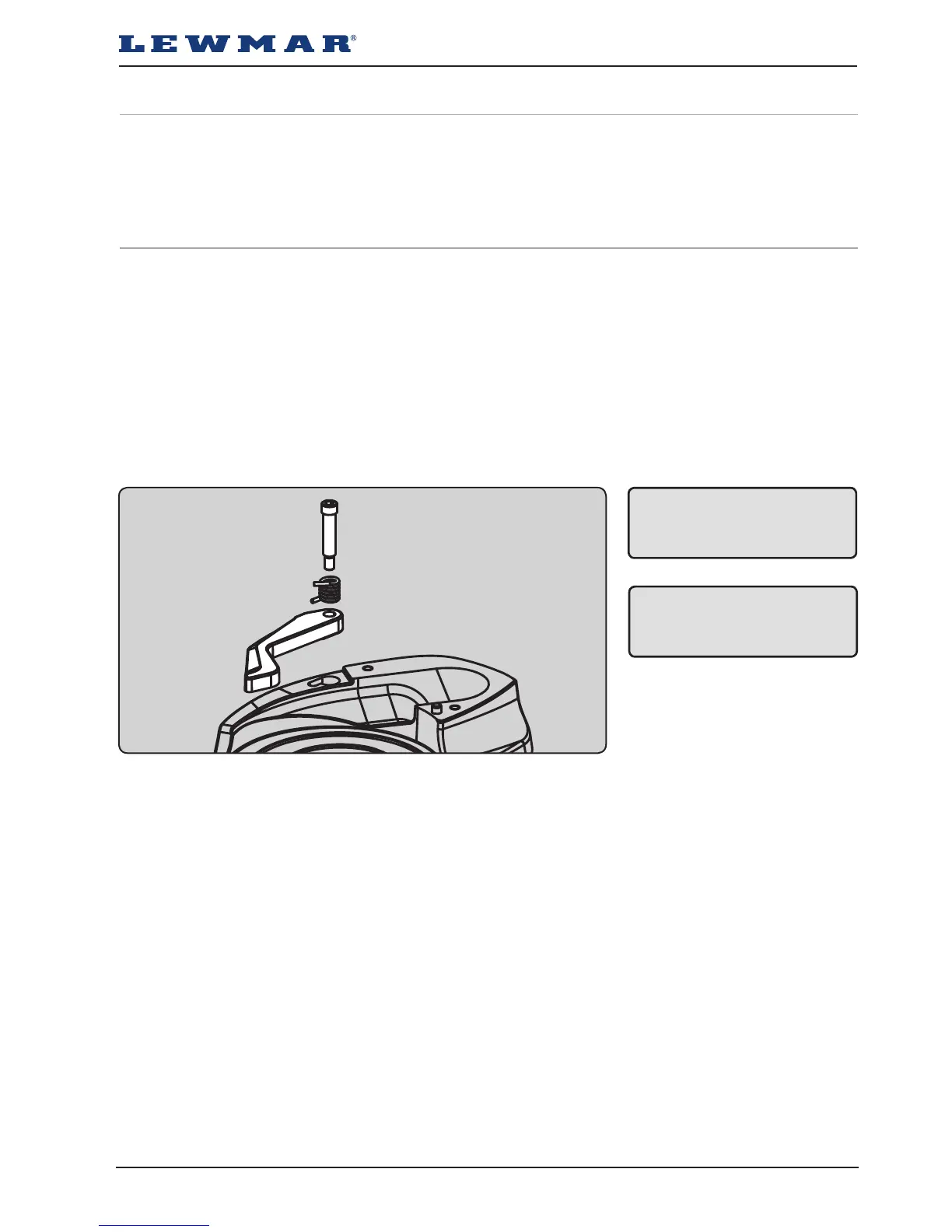

1. Unscrew control arm shoulder screw using a 4 mm Allen key.
Remove control arm and torsion spring from the base plate.
Wash with clean water (Not Jetwash). Replace components, (if necessary) and assemble in reverse order.
