Lewmar CPX Vertical Winlass ref 66300104 Iss. 5 | 5
3.4-2
3.4-1b
3.4-1a
3.5-1
40 - 50 mm
1
1
/
2
” - 2”
Notes
if in doubt about the suitable construction of the
pad consult a qualified marine engineer.
Decks that are thin, or of foam or balsa laminate
construction, will require reinforcement in order to
spread the loads that will be applied to the deck while
the windlass is in use
2. If a pad is required for these models, care must be
taken to ensure that the windlass base is parallel
to the motor/gearbox mounting flange. Shims may
be used, before the motor/gearbox is installed, to
correct minor misalignment.
Note: For thicker deck, a longer
sha main be required
(not standard). Contact your
Lewmar representative for more
information

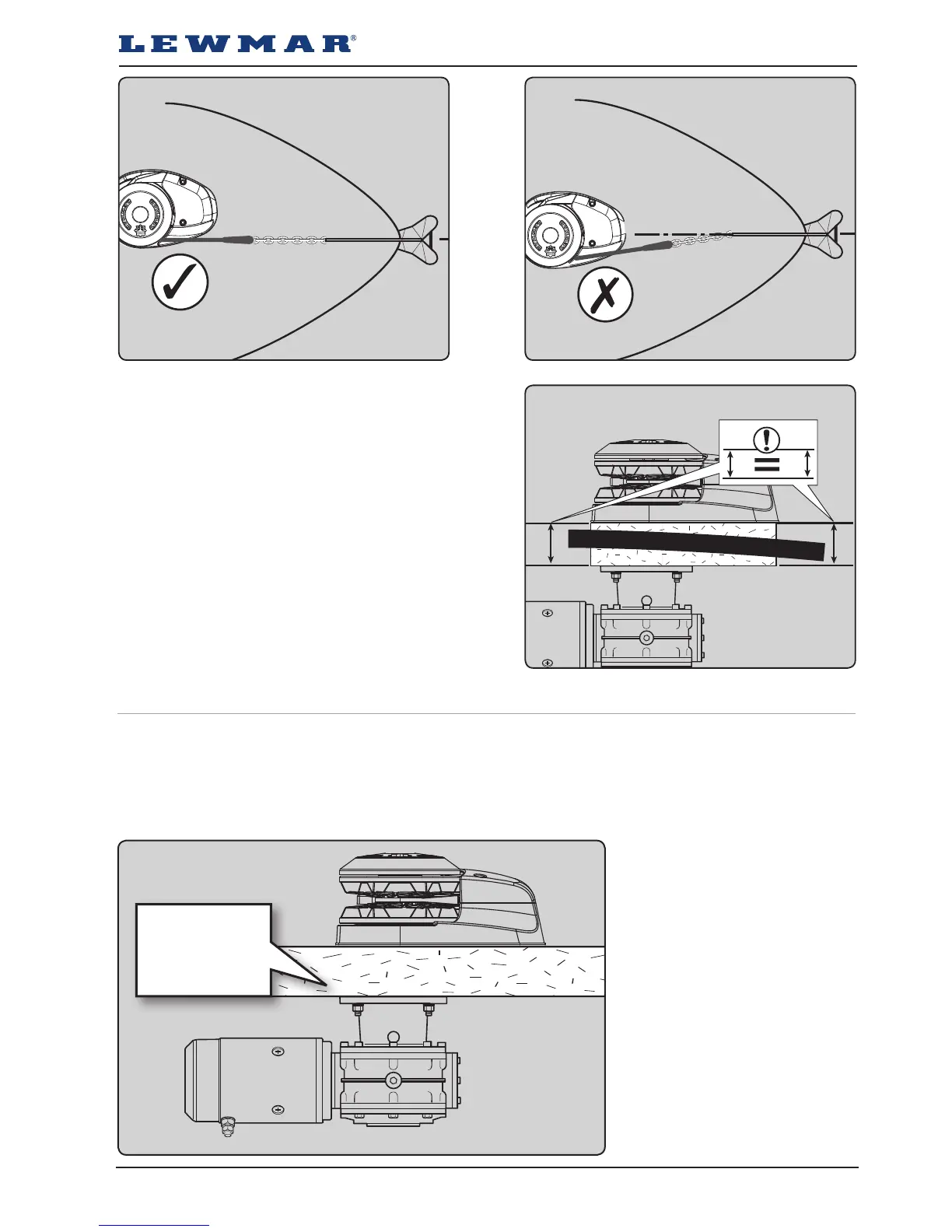

3.5 Deck thickness
The deck is an integral component of the windlass it has to secure the windlass and be strong enough to cope
with the high torque stresses involved in recovering the anchor.
Lewmar recommends a minimum deck thickness of 40mm (1½”)
M10 studs suit deck and packing thickness of 40-50mm (1½”- 2”)
