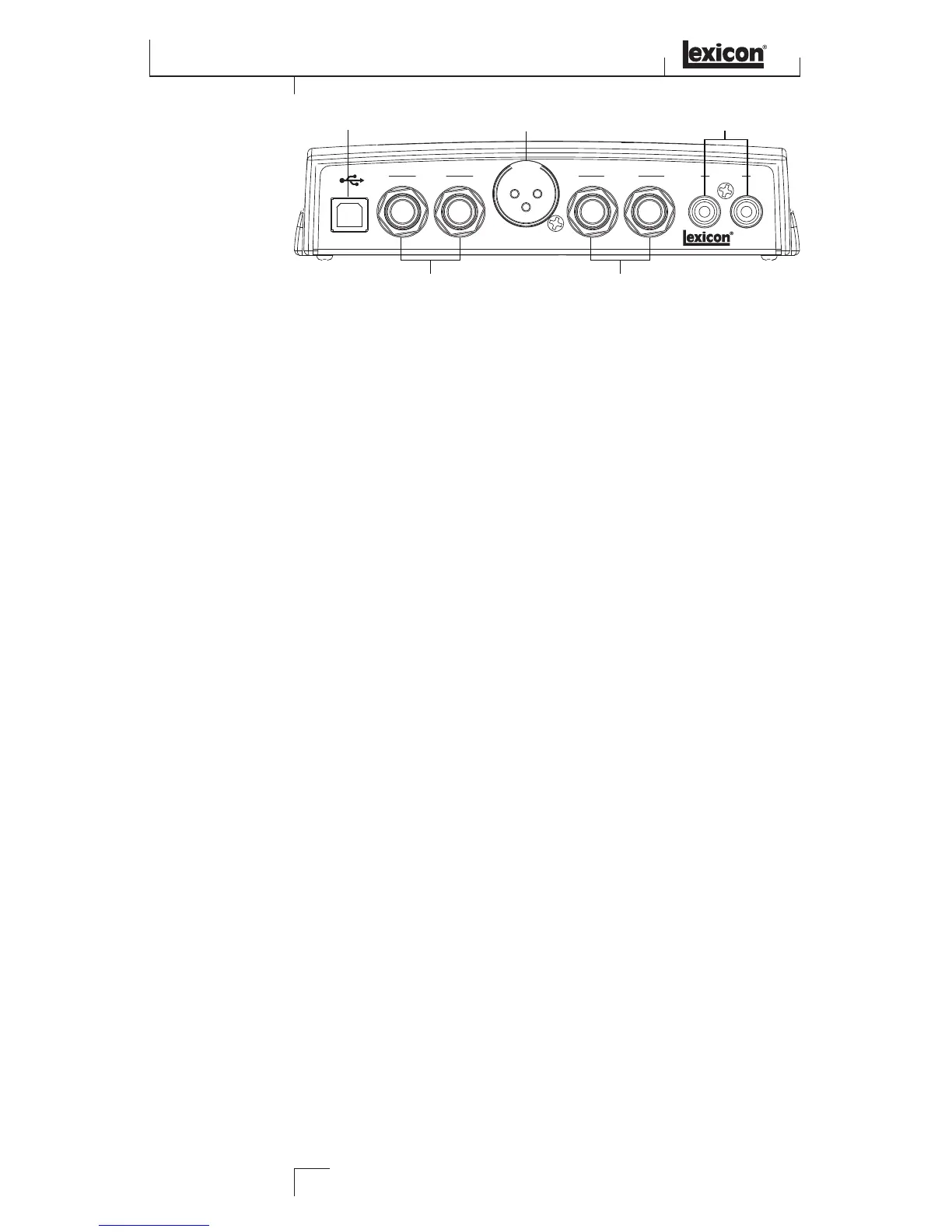

ThE REAR PANEl
The Alpha Studio™ rear panel offers the following features:
USB PORT
The USB Port is used to connect the Alpha Studio to your computer and provides the
Alpha Studio hardware with power. A standard USB cable is included. The Alpha Studio
supports USB 2.0 full speed.
LINE IN 1-2
These ¼" inputs can accept both balanced (3-conductor TRS) and unbalanced (2-
conductor TS) line level audio sources. The input gain is adjusted using the Line
1/Inst and Line2/Mic gain knobs on the front panel.
Note: When a cable is connected to the Line 2 input, the Mic input is disabled.
MIC INPUT
This balanced XLR input features a high-quality mic preamp designed specifically for
low-impedance professional dynamic and self-powered condenser microphones. The
input gain is adjusted using the Line 2/Mic gain knob on the front panel, with 50 dB
of gain at the maximum setting.
Note: When a cable is connected to the Instrument input on the front panel, the
Line 1 input is disabled.
¼" LEFT/RIGHT LINE OUTPUTS
These outputs support balanced TRS or unbalanced TS ¼" connections. These
outputs can be connected to a mixing board, power amplifier, powered studio monitors,
recorder, or another line level input.
RCA LEFT/RIGHT LINE OUTPUTS
These outputs support RCA connections. These outputs can be connected to a mixing
board, power amplifier, powered studio monitors, recorder, or another line level input.
