2 Press the pick assembly release lever, and
remove all media and jams.
3 Return the feeder to its working position, and
reload your paper.

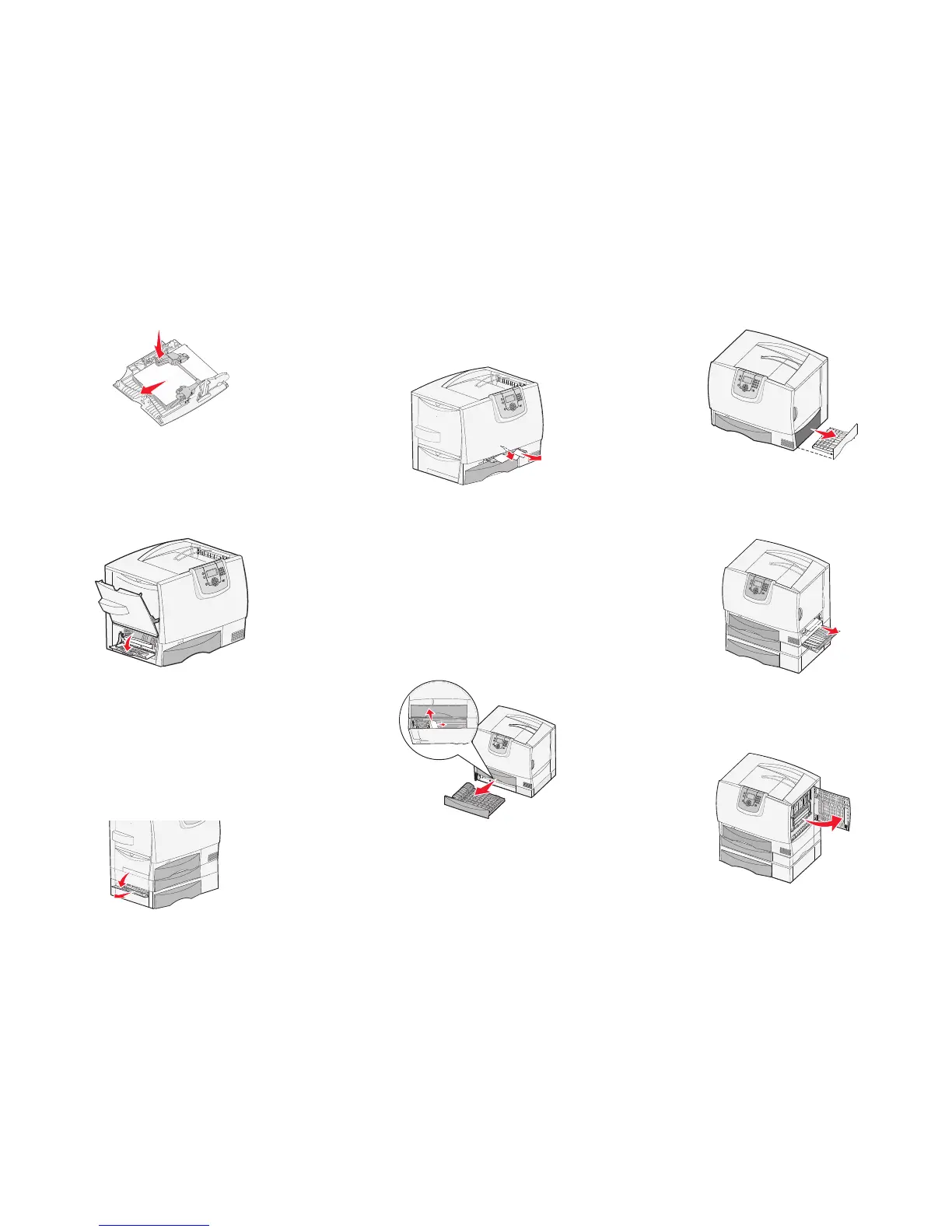

Area B
1 Open the left access door until it clicks into
place.
2 Remove all visible paper. Remove any torn
paper from the printer.
3 Close the door.
4 Open Tray 1, and make sure the entire paper
stack is pushed all the way down into the tray.
Area C
1 Open the 500-sheet drawer access door. Hold
the door down while removing jams.
2 Make sure the entire paper stack is loaded
correctly, and then close the door.
Area D
1 Open the front access door.
2 Hold down the front access door. Remove jams
in the rollers under the image transfer unit.
Area T1
1 Open tray 1.
2 Remove any jams.
3 Make sure the paper is pushed all the way down
into the tray, and then close tray 1.
Area E
1 Pull the duplex tray E completely out. Remove
any paper caught in the rollers or inside the
printer.
2 Reinstall the duplex mechanism in the printer.
Area T<x>
1 Carefully open trays 2 through 4 (all 500-sheet
trays), and then remove jams.
2 Make sure the paper is pushed all the way down
into the tray, and then close trays 2 through 4.
Area J
1 Remove the duplex tray J.
2 Remove any jams, and then reinstall the tray.
Area K
1 Open the lower right access door.
2 Remove any jams, and then close the door.
Area L
1 Open the upper right access door.
2 Remove jams from the rollers, and then close
the door.
