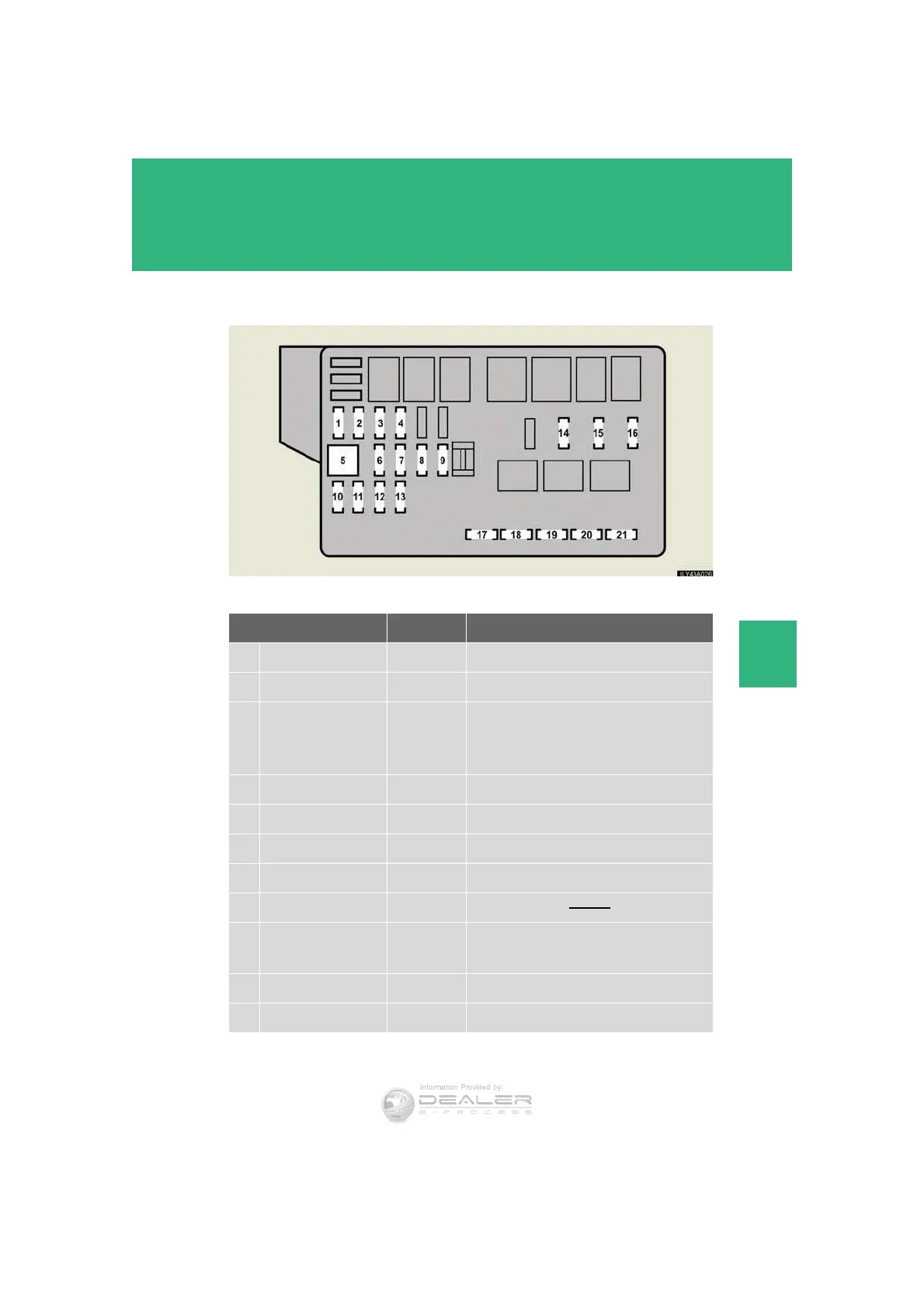

4-3. Do-it-yourself maintenance
4
Maintenance and care
n Engine compartment (Type B)
6: only for GS430 equipped with active stabilizer suspension system
Fuse Ampere Circuit
1
FR CTRL-B 25 Headlight high beam, horn
2
A/F 15 Exhaust system
3
ETCS 10
Multiport fuel injection system/
sequential multiport fuel injection
system
4
ALT-S 7.5 Charging system
5
H-LP CLN 30 Headlight cleaner
6
STB-AM 30 DC/DC converter
7
A/C COMP 7.5 Air conditioning system
8
DEICER 25
9
FR CTRL-AM 30
Front fog lights, parking lights, wind-
shield washer
10
IG2 10 Ignition system
11
EFI NO.2 10 Fuel system, exhaust system
To Next Page
