ELECTRICAL COMPONENTS
465
64E086
1

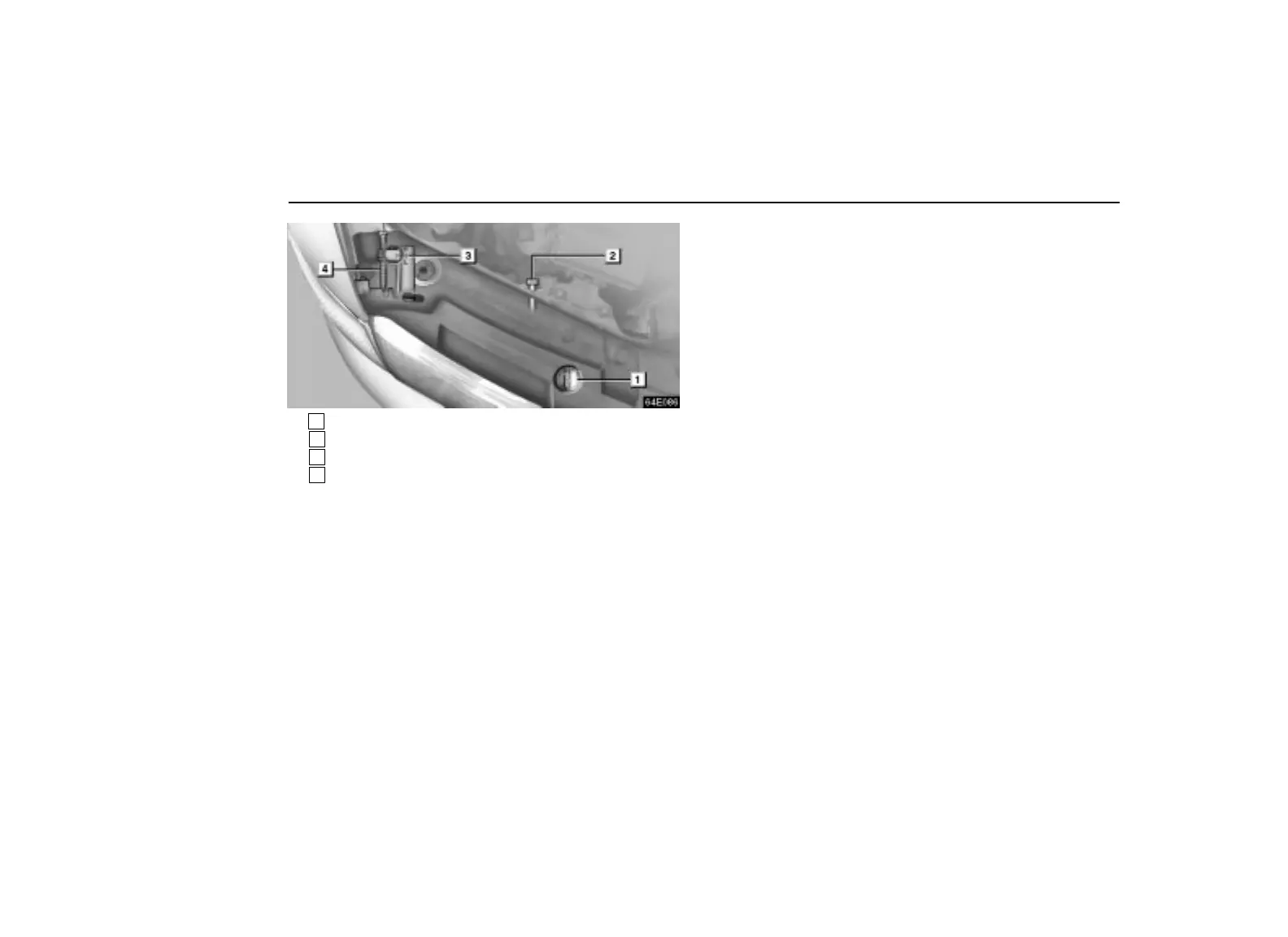

Beam angle gauge (vertical movement)
2
Adjusting bolt A
3
Beam angle gauge (horizontal movement)
4
Adjusting bolt B
Before checking the headlight aim:
1. Be sure that the body around the headlight is not
deformed.
2. Park the vehicle on a level spot.
3. The driver gets into the driver’s seat and puts the
vehicle in a state readying for a driving (with a full tank).
4. Bounce the vehicle several times.
Adjusting the headlight aiming
