4-3. Do-it-yourself maintenance
IS250/220d/200d_EE

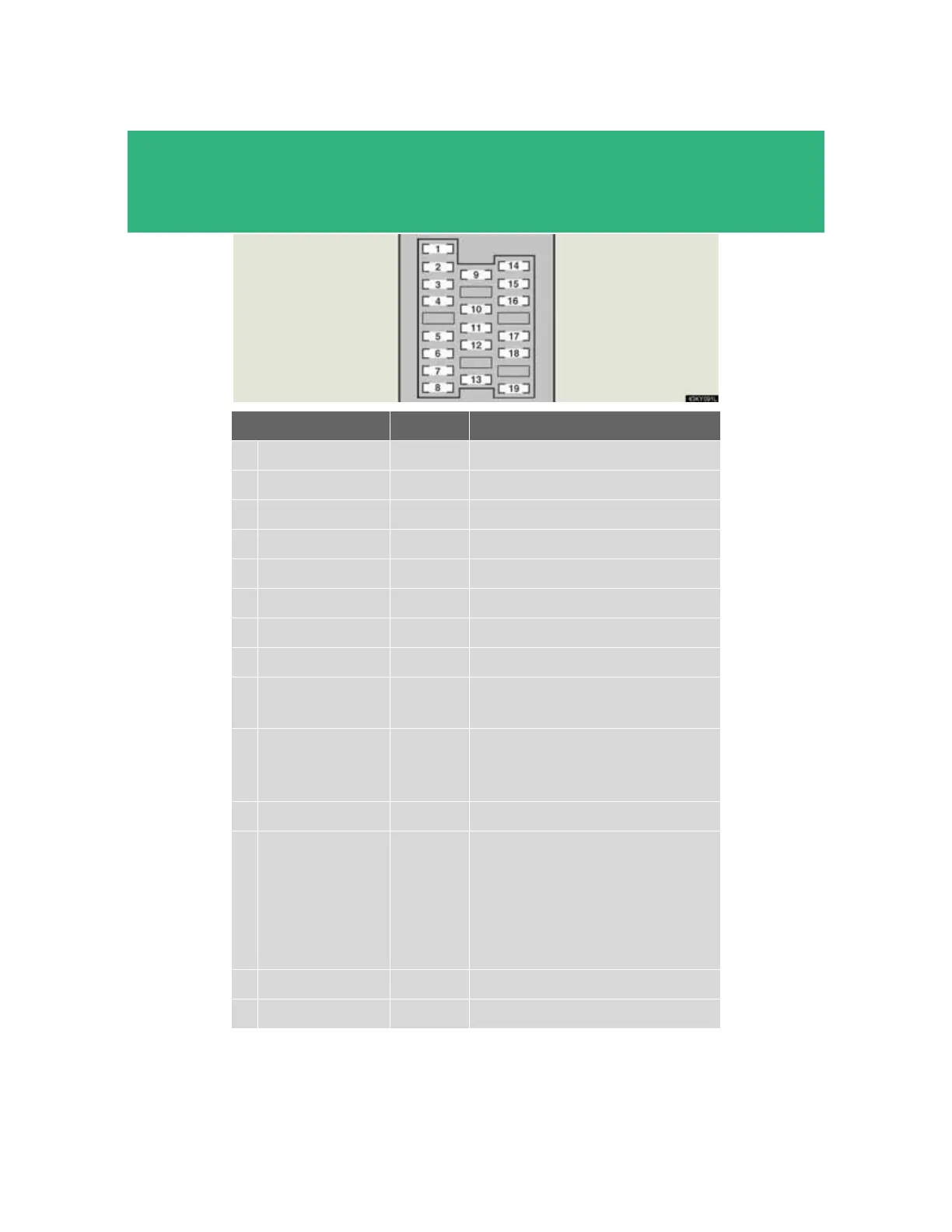

Left side instrument panel
Fuse Ampere Circuit
1
FR P/SEAT LH 30 A Power seat
2
A/C 7.5 A Air conditioning system
3
MIR HTR 15 A Outside rear view mirror defoggers
4
TV NO.1 10 A Display
5
FUEL OPEN 10 A Fuel filler door opener
6
TV NO.2 7.5 A Lexus parking assist monitor
7
PSB 30 A Pre-crash seat belt
8
S/ROOF 25 A Moon roof
9
TAIL 10 A
Tail lights, license plate lights,
manual headlight leveling system
10
PANEL 7.5 A
Switch illumination, air condition-
ing system, display, audio, power
heater
11
RR FOG 7.5 A Rear fog lights
12
ECU-IG LH 10 A
Air conditioning system, cruise
control, power steering, rain sen-
sor, anti-glare inside rear view mir-
ror, shift lock system, moon roof,
VSC, windshield wiper, Lexus
parking assist-sensor
13
FR S/HTR LH 15 A Seat heaters and ventilators
14
RR DOOR LH 20 A Power windows
To Next Page
