25

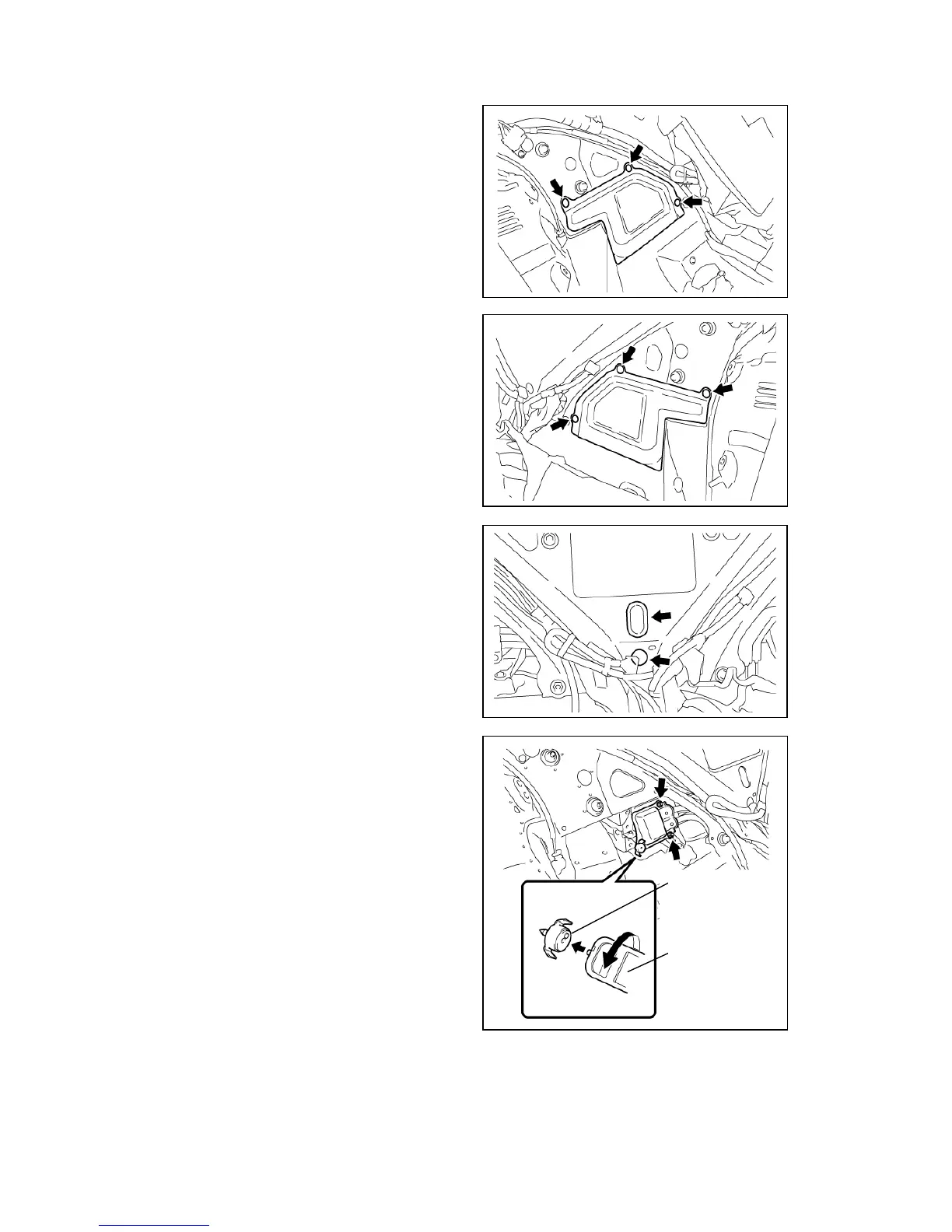

15. Remove the 3 clips and No. 1 center
floor to brace extension.
16. Remove the 3 clips and No. 2 center
floor to brace extension.
17. Remove the 2 hole plugs.
18. Remove the No. 2 HV battery shield
sub-assembly.
Caution:
Wear insulated gloves.
(1) Using the service plug grip, release
the battery cover lock striker.
(2) Remove the 2 nuts and disconnect
the No. 2 HV battery shield
sub-assembly from the HV battery.
Battery Cover
Lock Striker
Service Plug Grip
To Next Page
