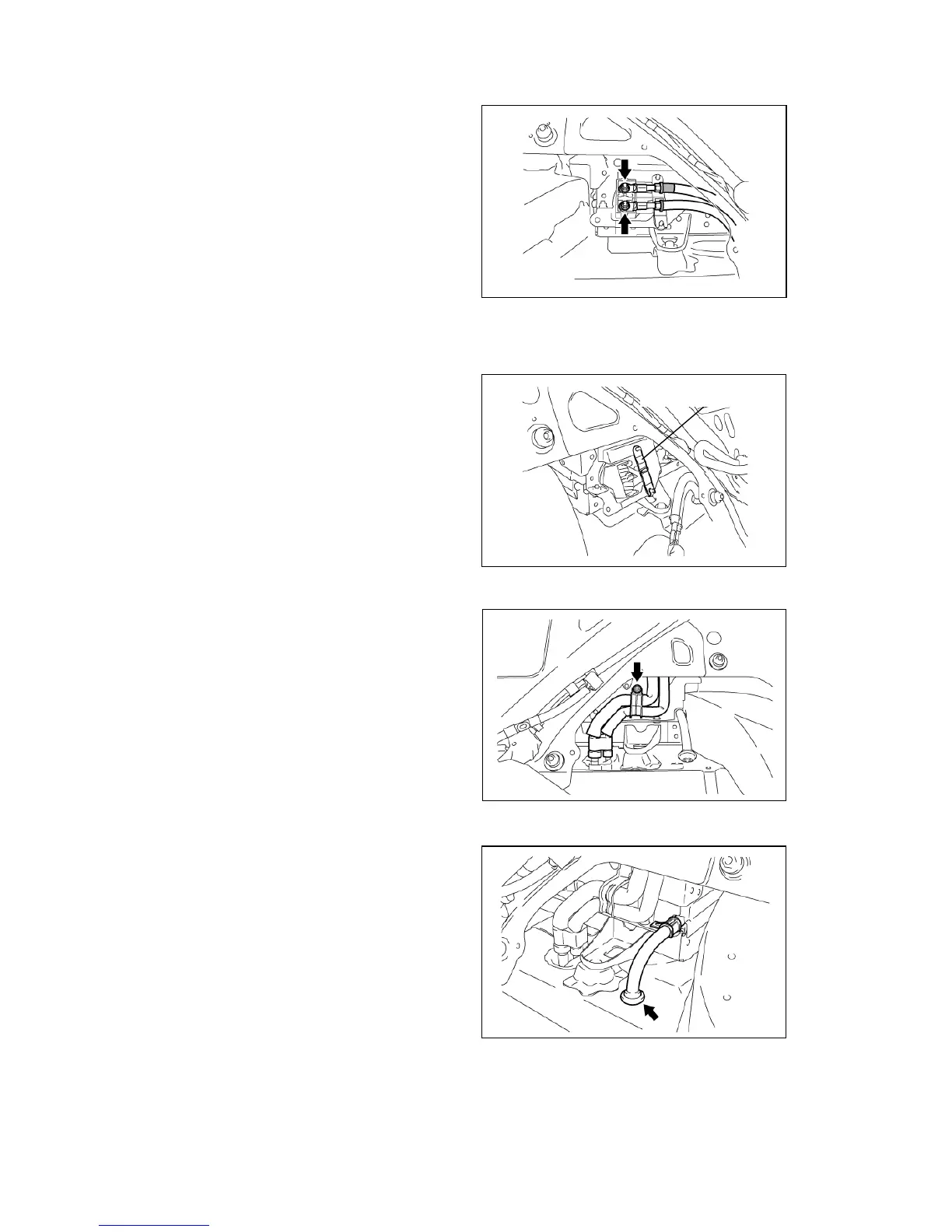

19. Disconnect the frame wire.
(1) Remove the 2 nuts and disconnect
the ends of the frame wire from the
HV battery.
Caution:
Wear insulated gloves.
Notice:
Insulate the terminals of the removed
frame wire with insulating tape.
(2) Remove the battery shield contact
from the HV battery.
20. Remove the nut and remove the air
conditioning tube assembly clamp.
21. Remove the battery room ventilation
hose.
22. Remove the 2 No. 1 cooler cover clips (w/ rear air conditioning).
Battery Shield Contact
