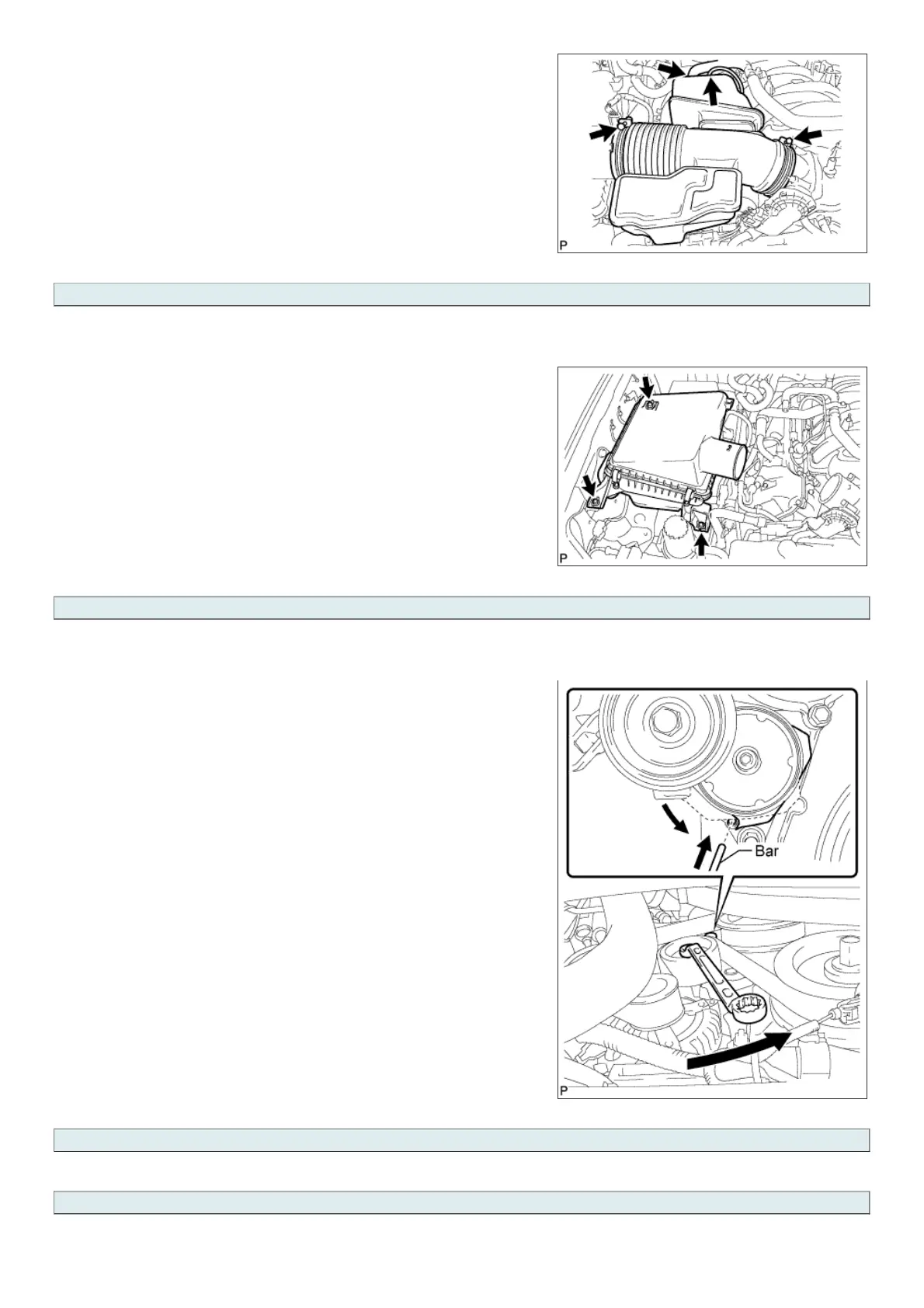

a. Disconnect the vacuum hose and No. 2 ventilation hose.
b. Loosen the 2 hose clamps.
c. Remove the air cleaner hose.
6. REMOVE AIR CLEANER ASSEMBLY
a. Remove the 3 bolts and air cleaner.
7. REMOVE FAN & GENERATOR V BELT
a. While turning the belt tensioner counterclockwise, align the service hole for the
belt tensioner and the belt tensioner fixing position, and then insert a bar of φ5
mm (0.197 in.) into the service hole to fix the belt tensioner in place.
HINT:
The pulley bolt for the belt tensioner has a left-hand thread.
b. Remove the V belt.
8. DRAIN POWER STEERING FLUID
9. DISCONNECT SUCTION HOSE
