VANE PUMP > DISASSEMBLY
for Preparation Click here

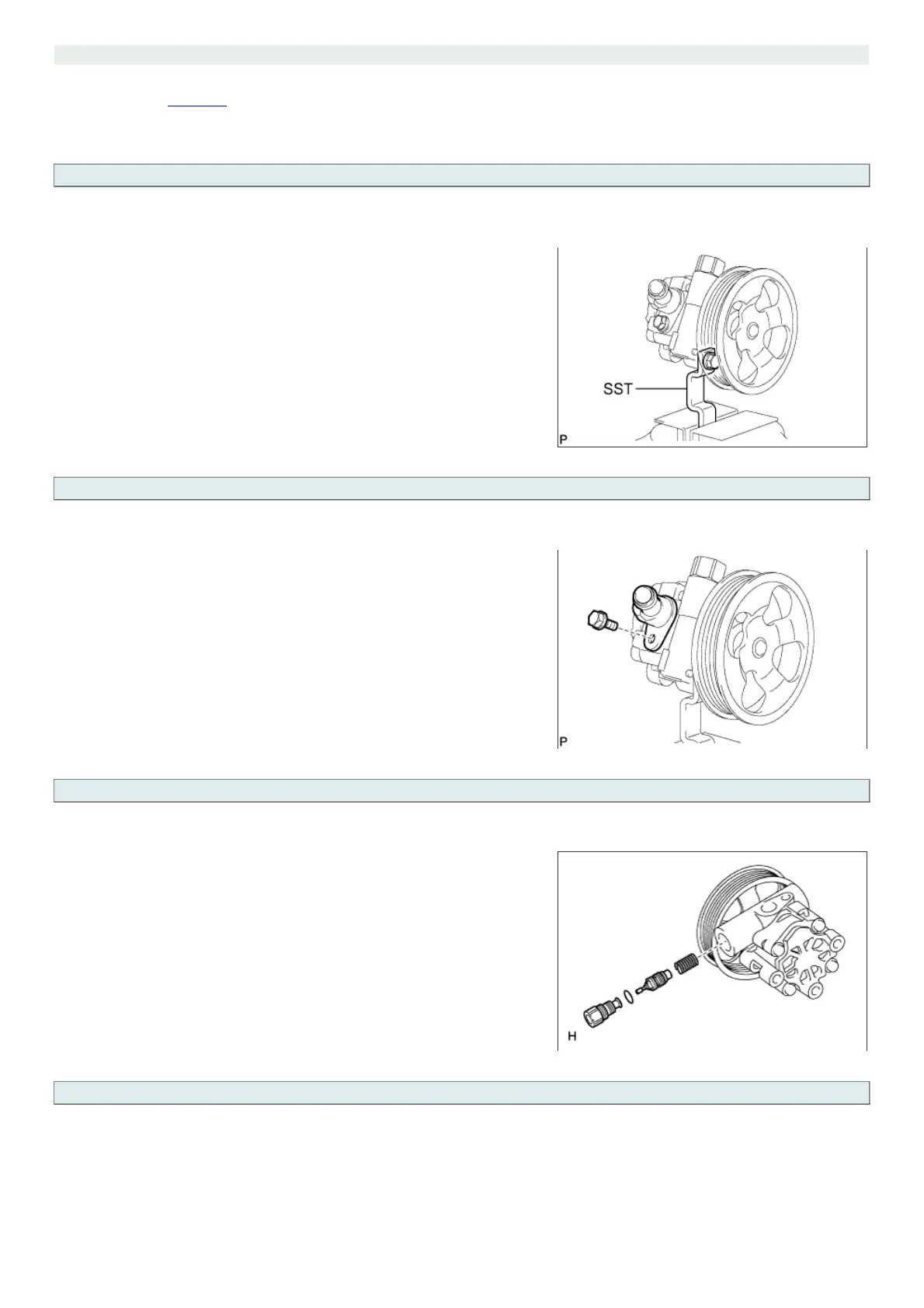

1. FIX VANE PUMP ASSEMBLY
a. Using SST, fix the vane pump in a vise.
SST
09630-00014 (09631-00132)
2. REMOVE POWER STEERING SUCTION PORT UNION
a. Remove the bolt and suction port union from the vane pump.
b. Using a screwdriver, remove the O-ring from the suction port union.
3. REMOVE FLOW CONTROL VALVE
a. Remove the pressure port union.
b. Remove the O-ring from the pressure port union.
c. Remove the flow control valve and compression spring.
4. REMOVE VANE PUMP REAR HOUSING
a. Remove the 4 bolts and rear housing from the front housing.
