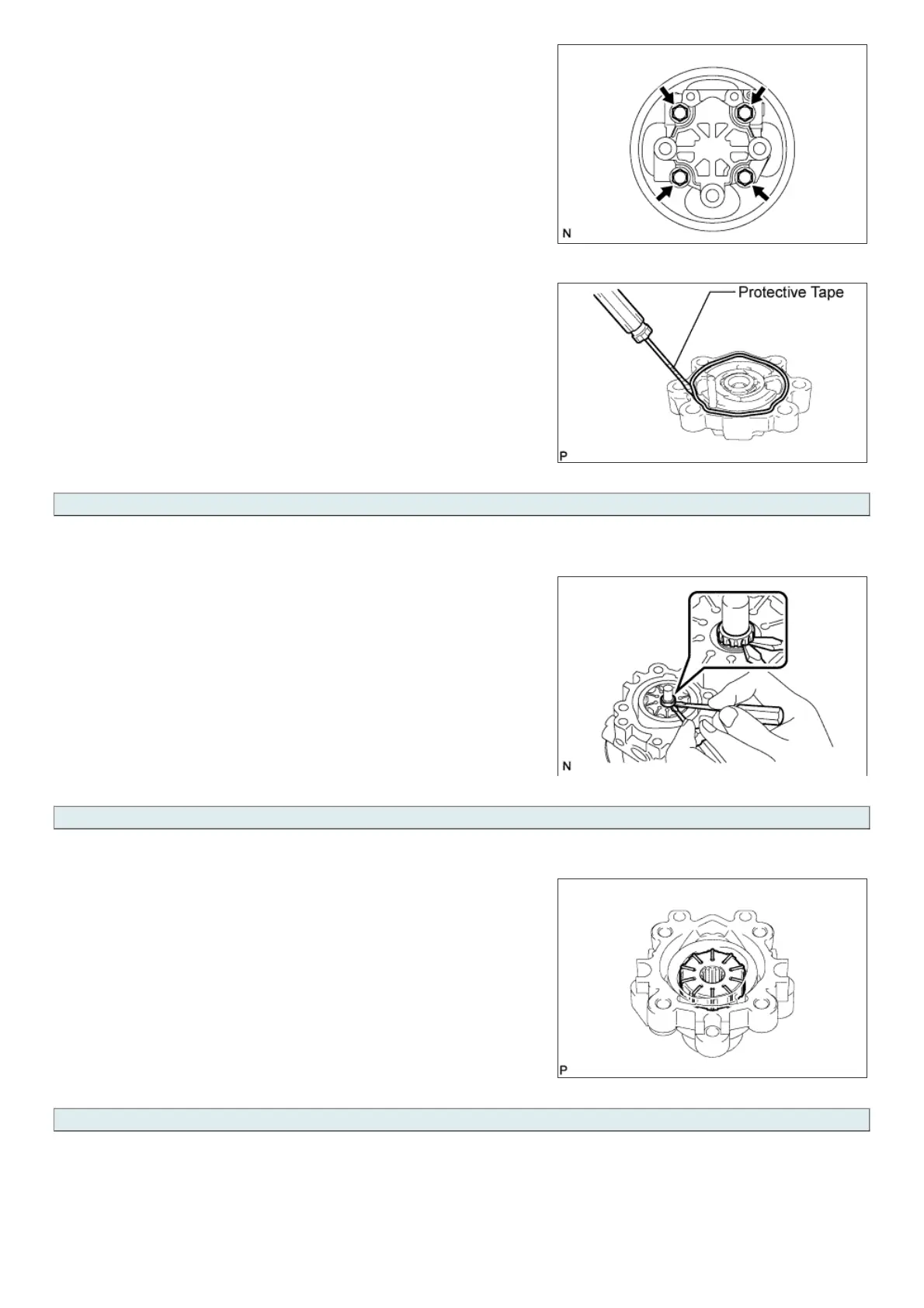

b. Using a screwdriver, remove the O-ring from the rear housing.
HINT:
Tape the screwdriver tip before use.
5. REMOVE VANE PUMP SHAFT WITH VANE PUMP PULLEY
a. Using 2 screwdrivers, remove the snap ring from the vane pump shaft.
b. Remove the vane pump shaft with vane pump pulley.
NOTICE:
Be careful not to drop or damage the vane pump shaft with vane pump pulley.
If it is damaged, replace the vane pump assembly.
6. REMOVE VANE PUMP ROTOR
a. Remove the 10 vane pump plates.
NOTICE:
Take care not to drop the vane pump plate.
b. Remove the vane pump rotor.
7. REMOVE VANE PUMP CAM RING
a. Remove the cam ring from the front housing.
