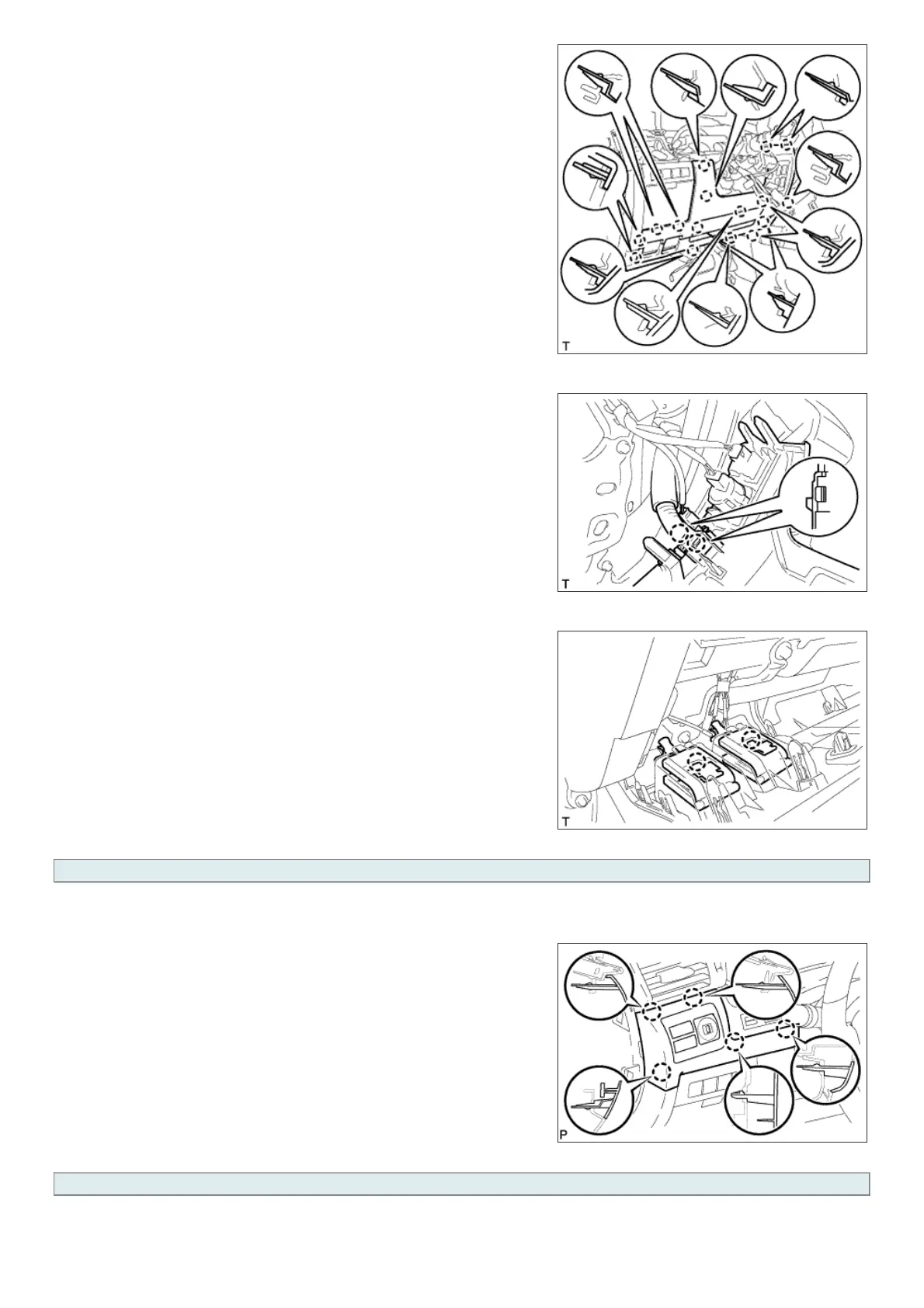

d. Detach the 2 claws and remove the sensor.
e. Detach the 2 claws and disconnect the 2 control cables.
f. Remove the finish panel and then disconnect the connectors.
9. REMOVE NO. 1 SWITCH HOLE BASE
a. Detach the 5 claws.
b. Disconnect the connectors and remove the switch hole base.
10. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
a. Remove the 5 bolts and driver side knee airbag.
