HYBRID VEHICLE OVERVIEW
8
PRECAUTIONS FOR THE USE OF
HYBRID VEHICLE

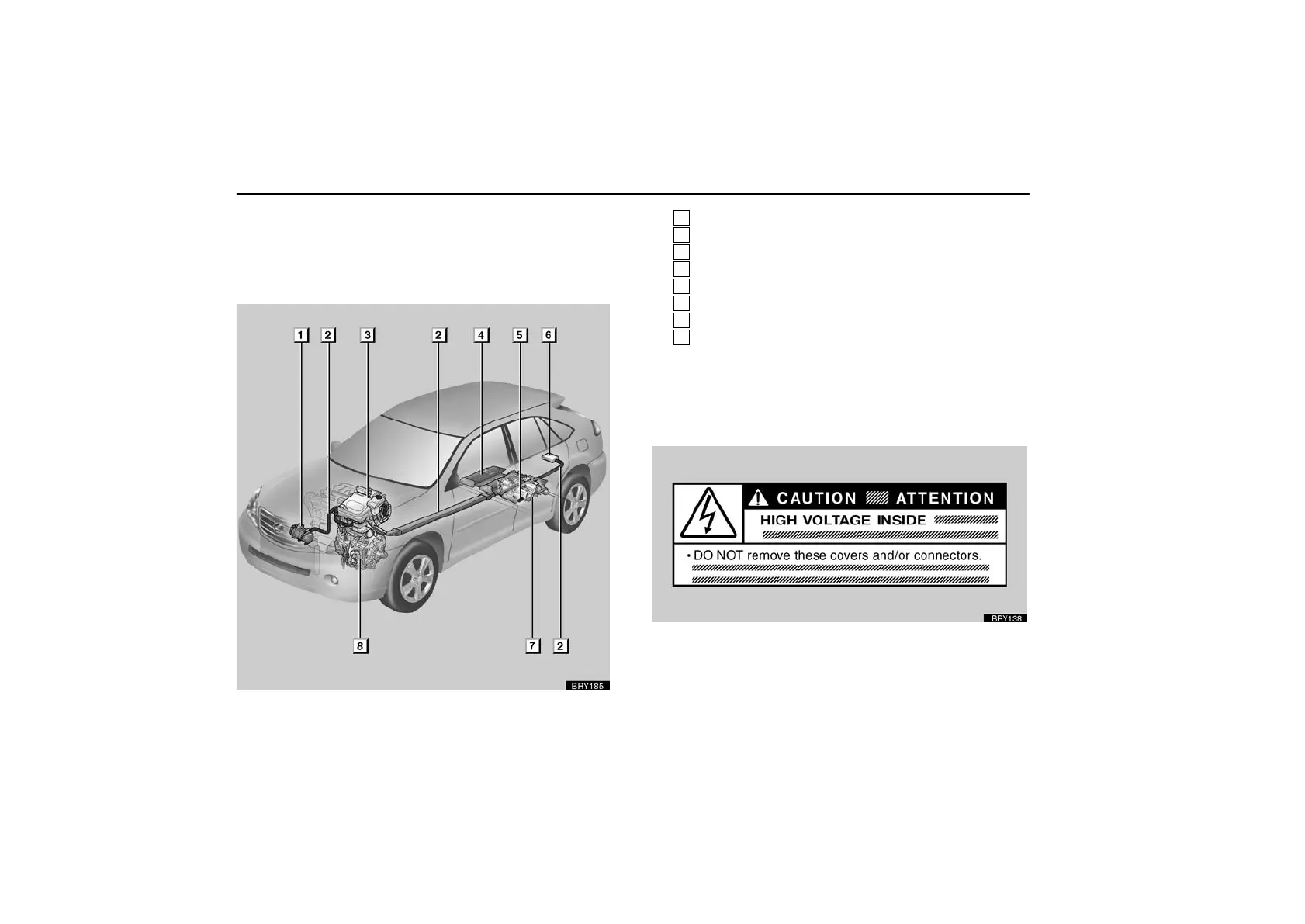

High voltage components
ill−2
1
Air conditioning compressor
2
High voltage cables
3
Inverter unit
4
Traction battery
5
Service plug
6
DC/DC converter
7
Rear traction motor (all wheel drive models only)
8
Front traction motor
The hybrid system uses high voltage up to 650 V. High
voltage components are indicated in the illustration
above. High voltage cables are orange. The system can
be hot while and after starting. Be careful of both the high
voltage and the high temperature.
Caution label
