LEYBOLD LV 80 - Page 15

Description
15
300407956_002_C1 - 01/2017 - © Leybold
2524
23
22
21
1918171615
14
13
12
11
10
123456789

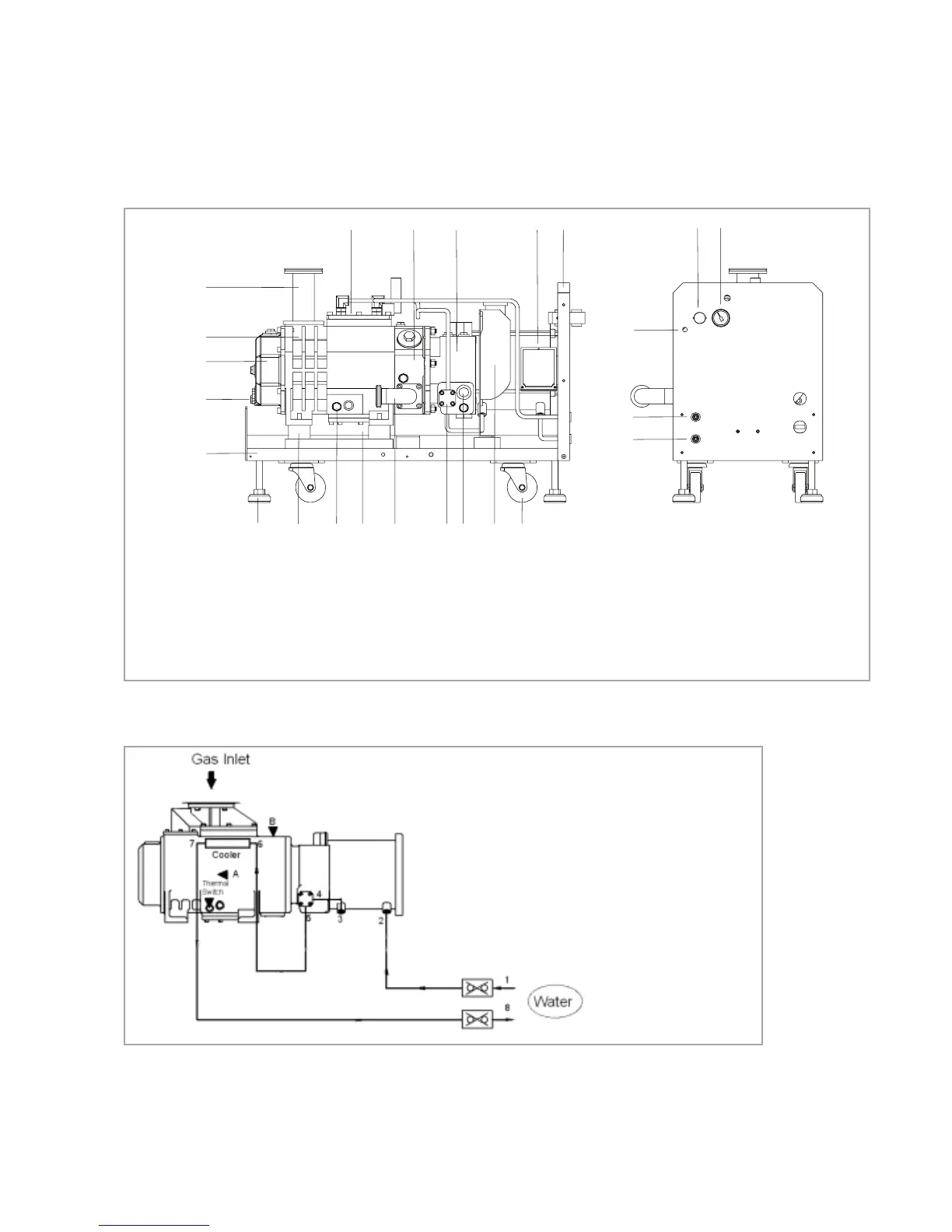

Fig. 1.2 LEYVAC LV 80 Pump Configuration; LEYVAC LV 140 and LV 250 similar
1. Castor
2. Expansion Vessel
3. Oil Level Indicator
4. Gear Box Cooler
5. Pump Outlet (Side)
6. Cooler
7. Casing Temperature Sensor
8. Shock-absorping Pad
9. Height-adjustment Foot
10. Pump Frame
11. Oil Level Indicator
12. Oil Box
13. Casing
14. Pump Inlet
15. Main Cooler
16. High Pressure Side Plate
Fig. 1.3 Cooling Water System
17. Gear Box
18. Motor
19. Front Panel
21. Cooling Water Inlet
22. Cooling Water Outlet
23. N
2
Gas Inlet
24. N
2
Pressure Regulator
25. N
2
Pressure Gauge
1. Cooling Water Inlet
2. Cooling Water Inlet of Motor
3. Cooling Water Outlet of Motor
4. Cooling Water Inlet of Gear Box Cooler
5. Cooling Water Outlet of Gear Box Cooler
6. Cooling Water Inlet of Main Cooler
7. Cooling Water Outlet of Main Cooler
8. Cooling Water Outlet
