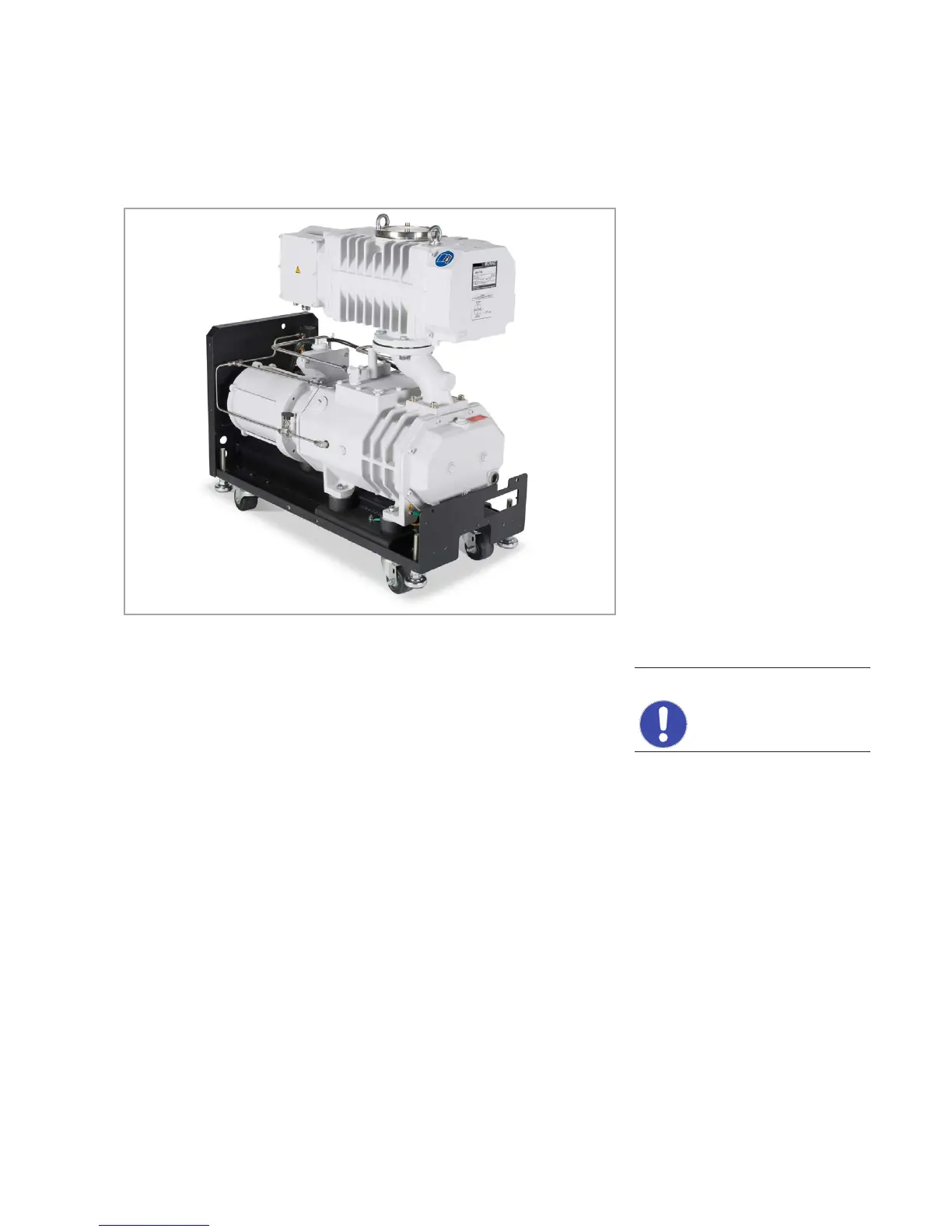

Fig. 3.12 LEYVAC with RUVAC WH 700 on top
Installation
Make sure that no items like welding beads, screws, nuts, washers, small
pieces of wire, for example, enter through the inlet into the pump. Carefully
handle the sealing surfaces and keep them clean.
We recommend that two fitters fit the adapter.
The Roots vacuum pump must only be fitted as depicted. Other orientations
are not allowed as otherwise stability is endangered.
Supplied Equipment
■
Adapter
■
4 hexagon socket screws M 8x25
■
O-ring 80x5, 4 stud bolts M 12x50, 8 washers A 13, 8 nuts M 12 (for fas-
tening the RUVAC)
