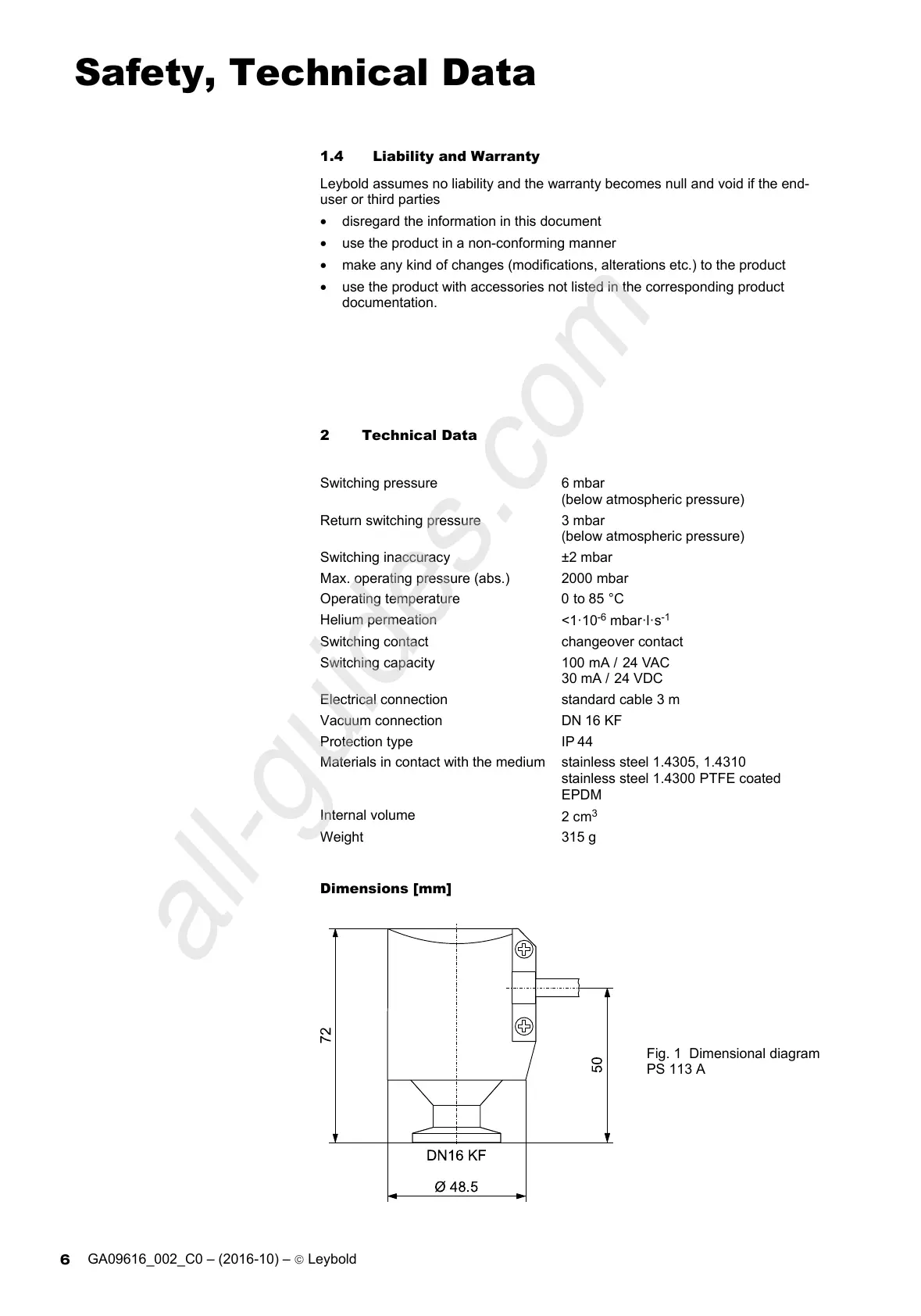

Safety, Technical Data
6
GA09616_002_C0 – (2016-10) – Leybold
1.4 Liability and Warranty
Leybold assumes no liability and the warranty becomes null and void if the end-
user or third parties
• disregard the information in this document
• use the product in a non-conforming manner
• make any kind of changes (modifications, alterations etc.) to the product
• use the product with accessories not listed in the corresponding product
documentation.
2 Technical Data
Switching pressure 6 mbar
(
below atmospheric pressure)
Return switching pressure 3 mbar
(
below atmospheric pressure)
Switching inaccuracy ±2 mbar
Max. operating pressure (abs.) 2000 mbar
Operating temperature 0 to 85 °C
Helium permeation
<1·10
-6
mbar·l·s
-1
Switching contact changeover contact
Switching capacity 100 mA / 24 VAC
30 mA / 24 VDC
Electrical connection standard cable 3 m
Vacuum connection DN 16 KF
Protection type IP 44
Materials in contact with the medium stainless steel 1.4305, 1.4310
stainless steel 1.4300 PTFE coated
EPDM
Internal volume
2
cm
3
Weight
315 g
Dimensions [mm]
Fig. 1 Dimensional diagram
PS 113 A
