LF ALLEN+ROTH TPGAZ2246 - Gazebo Assembly Steps; Step 1: Base Assembly

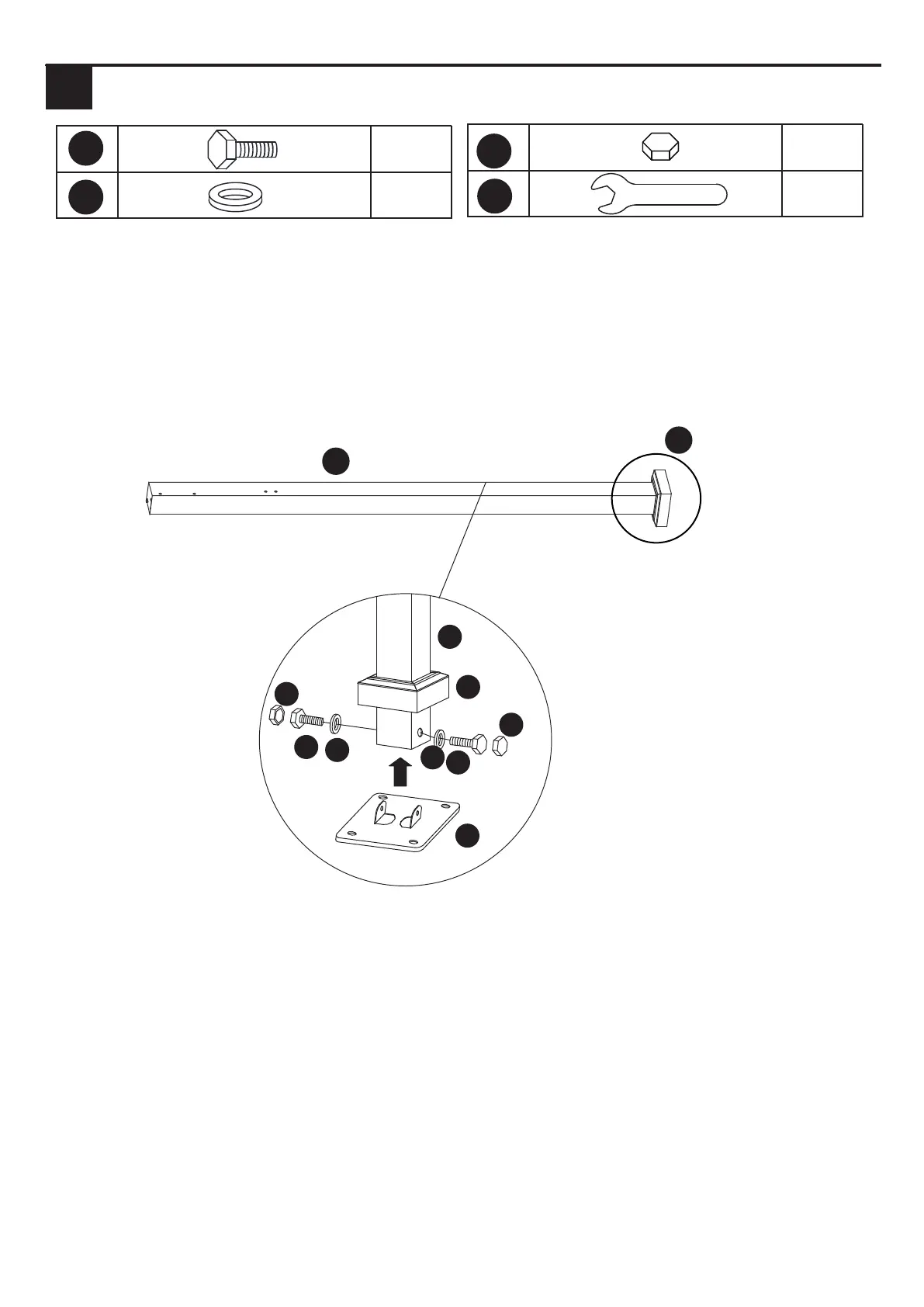

1. Insert the Base Cover (B) into the Post (A), and then connect the Base Plate (C) to the Post (A)
by Bolt (AA) and Flat Washer (EE). Tighten together with the wrench (NN). Place Bolt Cover (GG)
on the bolt (AA). Connect the other Posts in the same way. When all the Posts are ready, place
them in position.
1
X8
X8
X1
AA
EE
NN
INSTALLATION INSTRUCTIONS
Hardware Used
A
A
B
B
GG
GG
AA
AA
EE
EE
C
X8
GG
