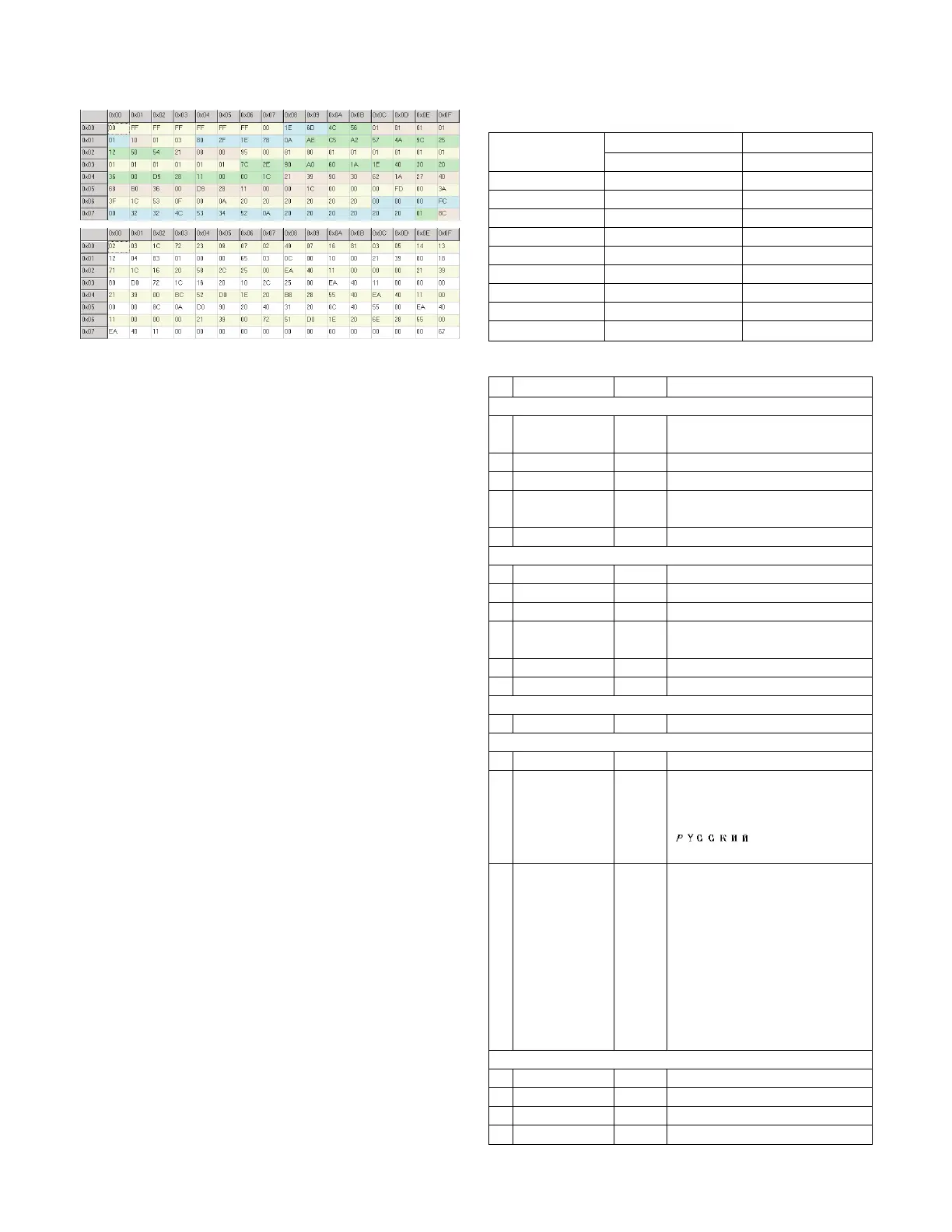

2) DIGITAL DATA 256Byte
- All Data : HEXA Value
- Changeble Data
* Serial No : Controlled/ Data : 01
** Month : Controlled/ Data :00
*** Year : Controlled
**** Check sum
4.8. HDCP SETTING
(High-Bandwidth Digital Contents Protection)
1) Connect D-sub Signal Cable to D-Sub Jack.
2) Input HDCP key with HDCP-key- in-program.
3) HDCP Key value is stored on EEPROM(AT24C64) which is
E00~F20 addresses of 0xBC~0xBE page.
4) AC off/ on and on HDCP button of MSPG925 and confirm
whether picture is displayed or not of using MSPG925.
5) HDCP Key value is different among the sets.
4.9. Outgoing condition Configuration
1) After all function test., press IN-STOP Key by SVC Remote
control. And Make Ship Condition.
2) When pressing IN-STOP key by SVC remote control,
Green and red LED are blinked alternatively. And then
Automatically turn off. (Must not AC power OFF during
blinking)
4.10. Internal pressure
- Confirm whether is normal or not when between power
board's ac block and GND is impacted on 1.5kV(dc) or
2.2kV(dc) for one second.
4.11 Option data setting (SVC OSD setting)
(1) PAL Model (Change by Suffix)- Tool option
(2) Area Option S.Am
- 12 -
19LS4R-MA 22LS4R-MA
12161(19”) 12162(22”)
Resolution 1 2
Module 0 0
TV 1 1
SCART 1 1
AV2 1 1
COMPONENT 1 1
PC-RGB 1 1
DVI 0 0
HDMI 1 1
Option1
1 200PR 0 0 : BG/I/DK/L
1 : BG/I/DK/M
2 ACMS 1 Acting FM-ST after checking Nicam
3 TEXT FLOF TOP / FLOF
4 CH+AU 0 0 : Except below area
1 : China
5 BOOSTER No
Option2
1 SYS No BG/IDK/L
2 A2 ST YES Acting FM-ST after checking Nicam
3 I II SAVE No
4 HDEV 0 0 : Except below area
1 : China
5 V-CURVE No
6 MONO No
Option3
1 KEY-TYPE 2 2 : 8 key
Option4
1 Default Lang 3
2 Lang 0 Chesky Dansk Deutsch English
Español Français Italiano Magyar
Nederlands Norsk Polski Português
Romaneste Suomi
Svenska
3 T- Lang 0 AUSTRIA NORWAY BULGARIA
POLAND CROATIA PORTUGAL
CZECH RUMANIA DENMARK
RUSSIA ENGLAND SERBIA
ESTONIA SLOVAKIA FINLAND
SLOVENIA FRANCE SPAIN
GERMANY SWEDEN GREECE
SWITZERLAND HUNGARY
TURKEY ITALY ARAB LATVIA
HEBREW NETHERLANDS Others
Option5
1 2 HR-OFF On
2 TV-LINK-TUNER No
3 FACTORY MODE On EEPROM Write Protection
4 CHANNEL-MUTE Yes
No. Item Condition Remark
