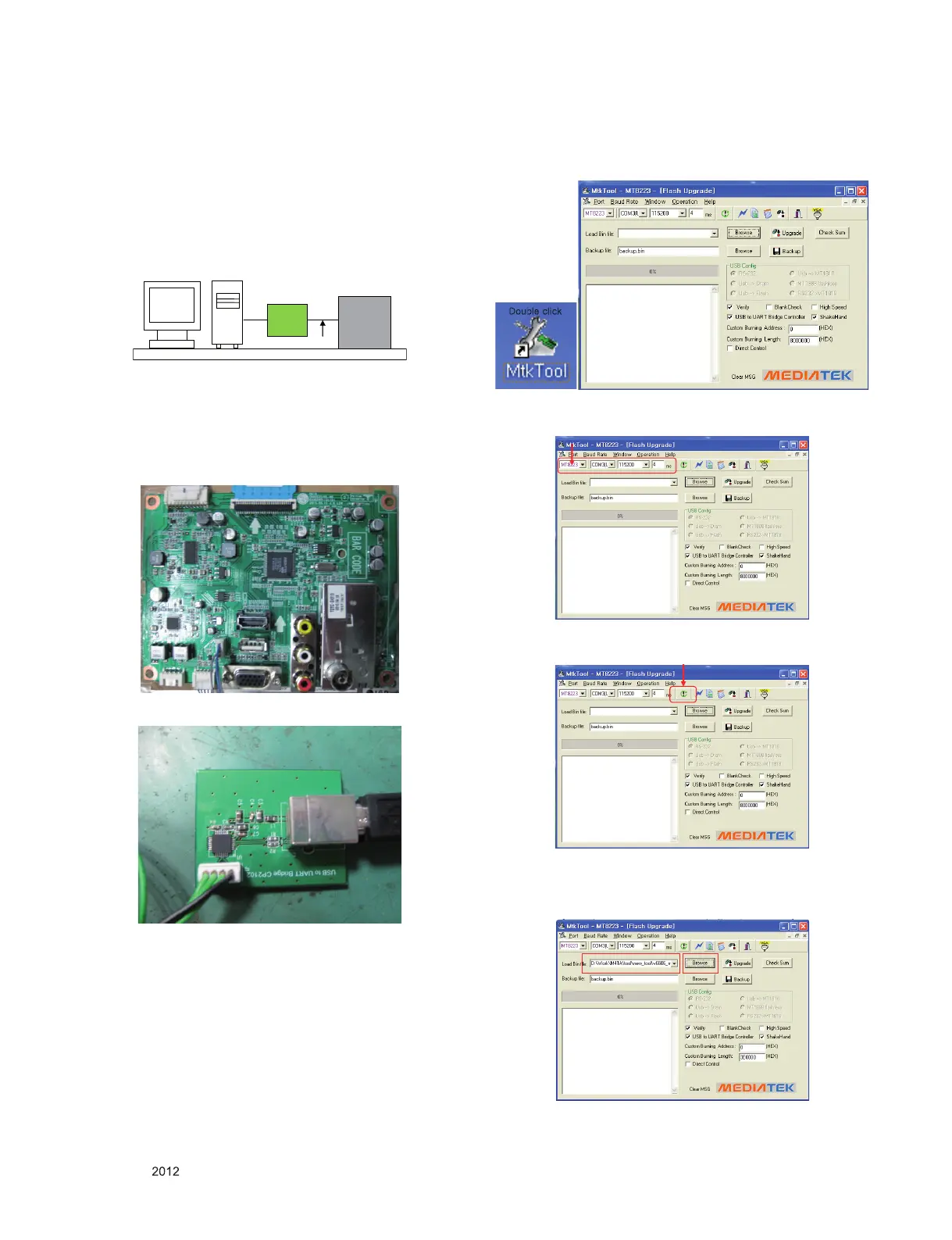

4.2. S/W program download
(1) Profile : This is for downloading the s/w to the flash
memory of IC603.
(2) Equipment
1) PC
2) MTK_tool program
3) Download jig
4) USB
(3) Connection structure
(4) Connection condition
1) IC name and circuit number : Flash Memory and IC603
2) Tact time : about 2min
4.3. Download method 1
4.3.1. Preliminary steps
(1) Connect the download jig to 4pin jack (P303)
(2) Connect the PC to USB jack
4.3.2. Download steps
(1) Execute ‘ISP Tool’ program in PC, then a main window will
be opened
(2) Click the Config and Change speed
(MT8223, Using Port, 115200, 4ms)
(3) Click the connect button and confirm
(4) Read and write bin file
Click “(1) Browse” tab, and then load download file (XXXX.
bin) by clicking and open.
PC
Main
B/D
Download jig
4pin harness
kG
HKNGZZZDKP
