1. MAIN POWER (ON/OFF)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby
mode.
dims when the set is switched on.
3. MENU
selects a menu.
4. OK
accepts your selection or displays the current
mode.
FF
/
GG
(Volume Down/Up)
adjusts the volume.
adjusts menu settings.
DD
/
EE
(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
5. REMOTE CONTROL SENSOR
6. AUDIO/VIDEO IN SOCKETS (AV3)
Connect the audio/video out sockets of
external equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-
VIDEO VCR to the audio sockets as in AV3.
7. EYE (option)
adjusts picture according to the surrounding
conditions.
8. HEADPHONE SOCKET
Connect the headphone plug to this socket.
9. PC INPUT SOCKET (option)
Connect the monitor output socket of the
PERSONAL COMPUTER to this socket.
Note : Set the resolution of PC to VGA
640x480 (60 Hz) video mode to use this set
as PC monitor.

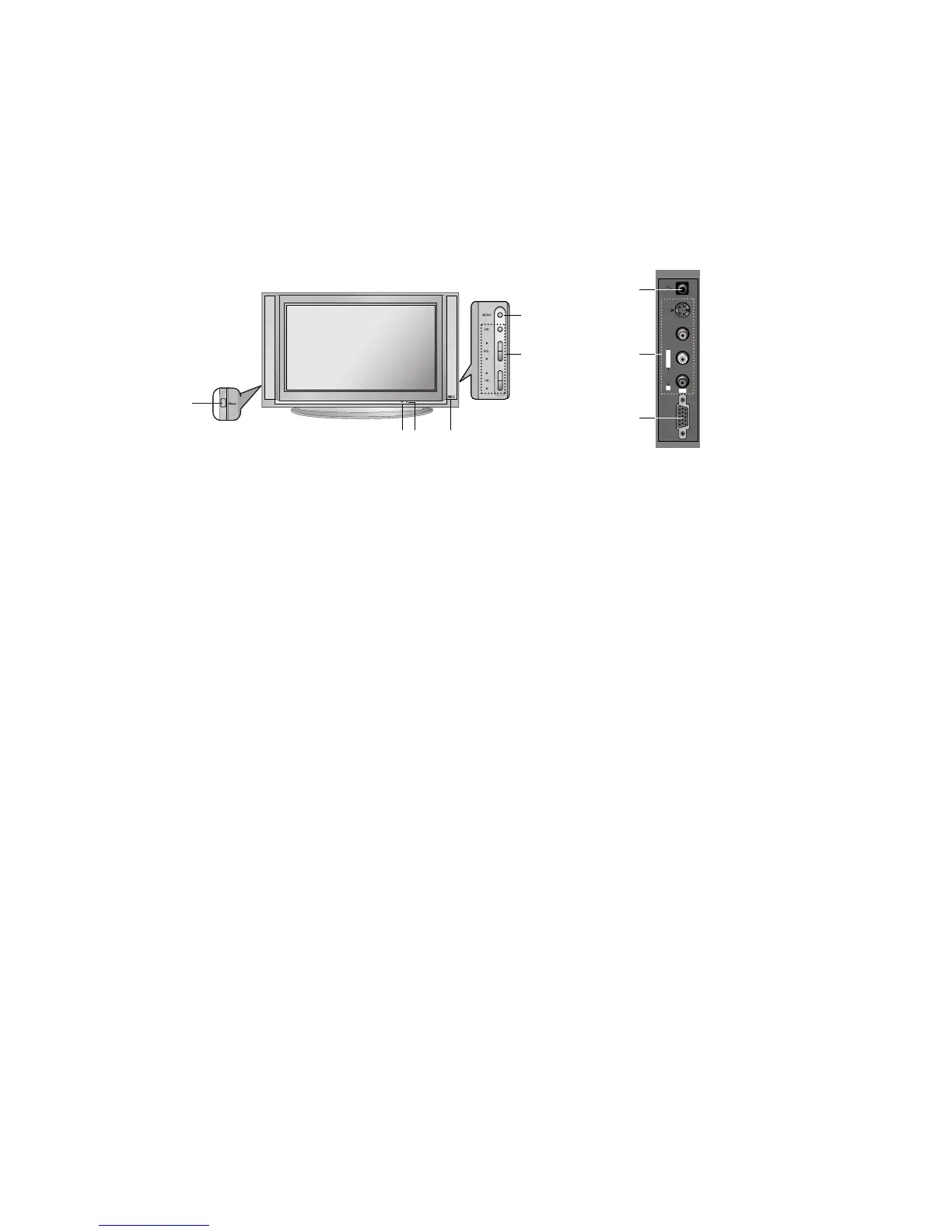

Front panel
To Next Page
